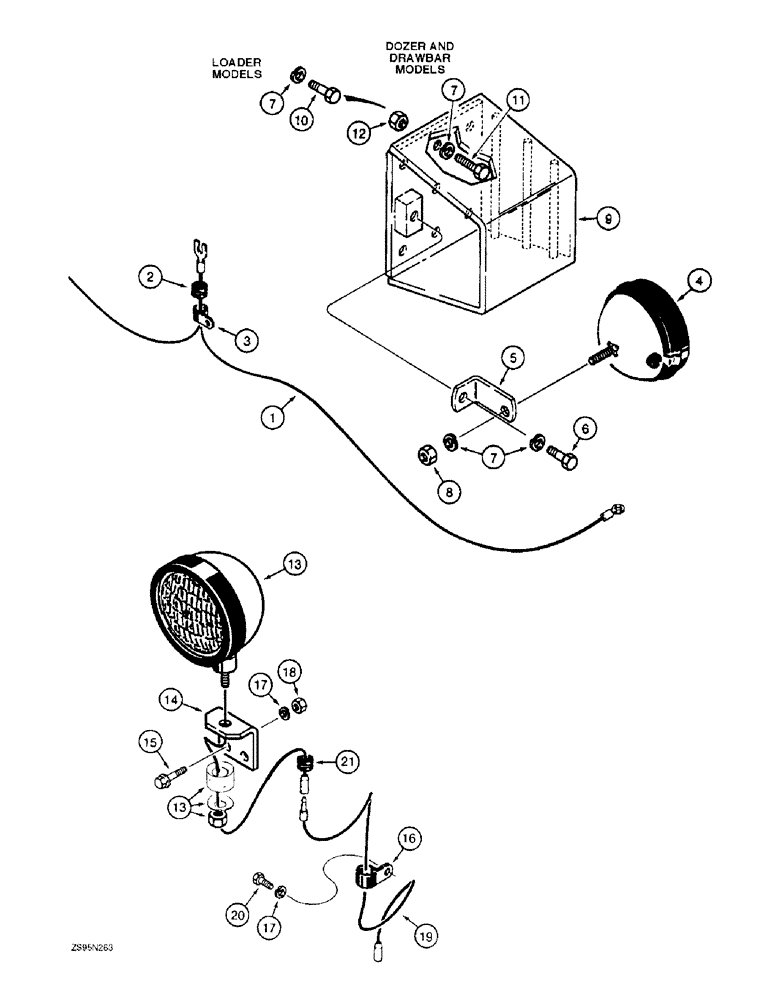

Запчасти Case 1155E (4-34) - LAMPS AND WIRING, MODELS WITHOUT ROPS CANOPY OR CAB, SIDE MOUNTED FRONT FLOOD LAMPS, REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

R27721

HARNESS

- lamp, dozer and drawbar models, side mounted, front

1шт.

1

R27912

HARNESS

- lamp, loader models, side mounted, front

1шт.

2

D42106

GROMMET

- rubber, harness thru firewall, loader models only, side mounted, front

1шт.

3

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Lamp harness, on firewall, side mounted, front 5/16", Insul, 3/8" Bolt

1шт.

4

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, front flood, side mounted, parts list Figure 4-42, side mounted, front

2шт.

5

R27714

BRACKET

- lamp mounting, side mounted, front

2шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Side mounted, Front Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Side mounted, Front 1/2"

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Side mounted, front 1/2"-13, G5

2шт.

9

R27720

GUARD ASSY.

GUARD - lamp, side mounted, front

2шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Loader models only, Side mounted, Front Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Dozer and drawbar models only, Side mounted, Front Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Dozer and drawbar models only, Side mounted, front 1/2"-13, G5

4шт.

13

R51415

LAMP

ASSEMBLY - rear flood, 24 volt, parts list Figure 4-42

1шт.

14

R47801

SUPPORT

BRACKET - lamp, rear flood

1шт.

15

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, rear flood

2шт.

16

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Harness connector wire, to hydraulic reservoir, rear flood 5/16", Insul, 3/8" Bolt

1шт.

17

492-11038

LOCK WASHER,3/8"

rear flood 3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

Rear flood 3/8"-16, G5

1шт.

19

R51427

ELECTRICAL WIRE

WIRE - 3/16 inch (5 mm) dia. female pin connection to lamp wire,to rear wiring harness, rear flood

1шт.

20

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

Rear flood Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

21

A23870

GROMMET

- rear lamp wire at battery cover, rear flood

1шт.
