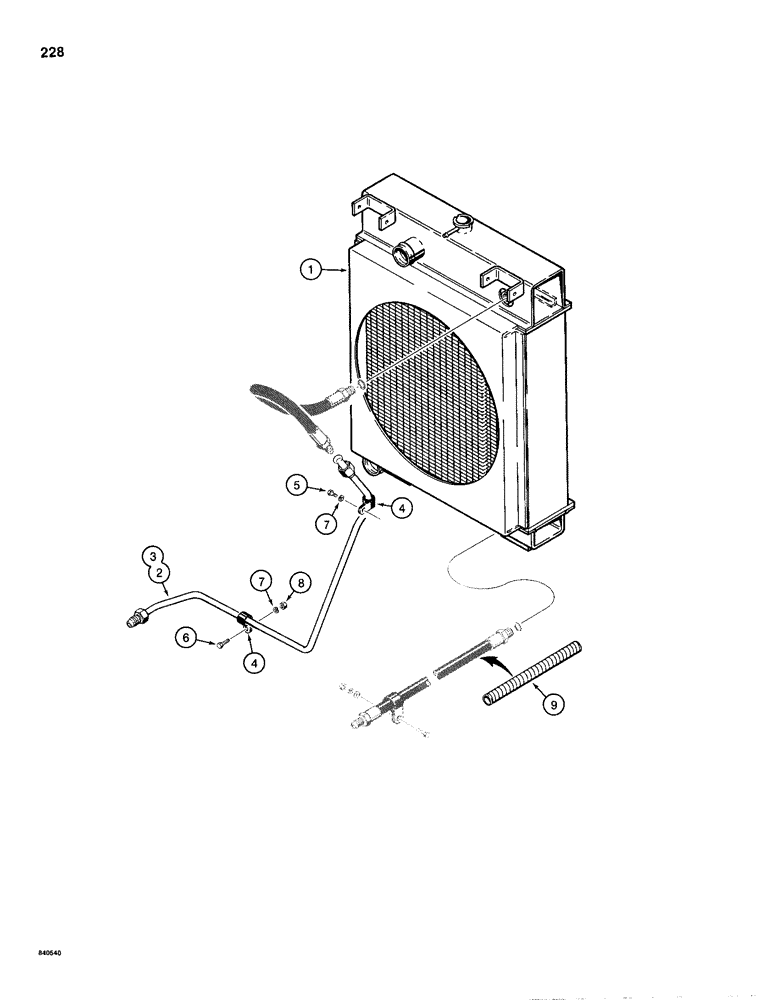

Запчасти Case 1155D (228) - CONVERSION KIT, HEAVY DUTY ANTISANDBLAST RADIATOR AND COOLING CIRCIUT CONNECTIONS (06) - POWER TRAIN

R50209

RADIATOR

KIT - conversion to heavy duty antisandblast radiator, includes instruction sheet, Includes: Ref 1 - 9

1шт.

This kit includes all the parts you need to replace a radiator with the cooler tank on the bottom (shown on figure 48) with the preferred radiator with the cooler tank on the side (shown on figure 50). See figures 48 and 50 for identification of the radiators.

1шт.

1

R48933

RADIATOR

ASSEMBLY - heavy duty antisandblast, parts list Fig. 50

1шт.

2

R50163

TUBE,0.75" OD

- crossover, dozer and drawbar models, if used

1шт.

3

R50165

TUBE,0.75" OD

- crossover, loader models, if used

1шт.

4

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- crossover tube

2шт.

5

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

R43083

LOOM

WRAP - lower radiator hose

1шт.
