(190) - TRANSMISSION BEVEL PINION SHAFT AND GEAR

Запчасти Case 1155D (190) - TRANSMISSION BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

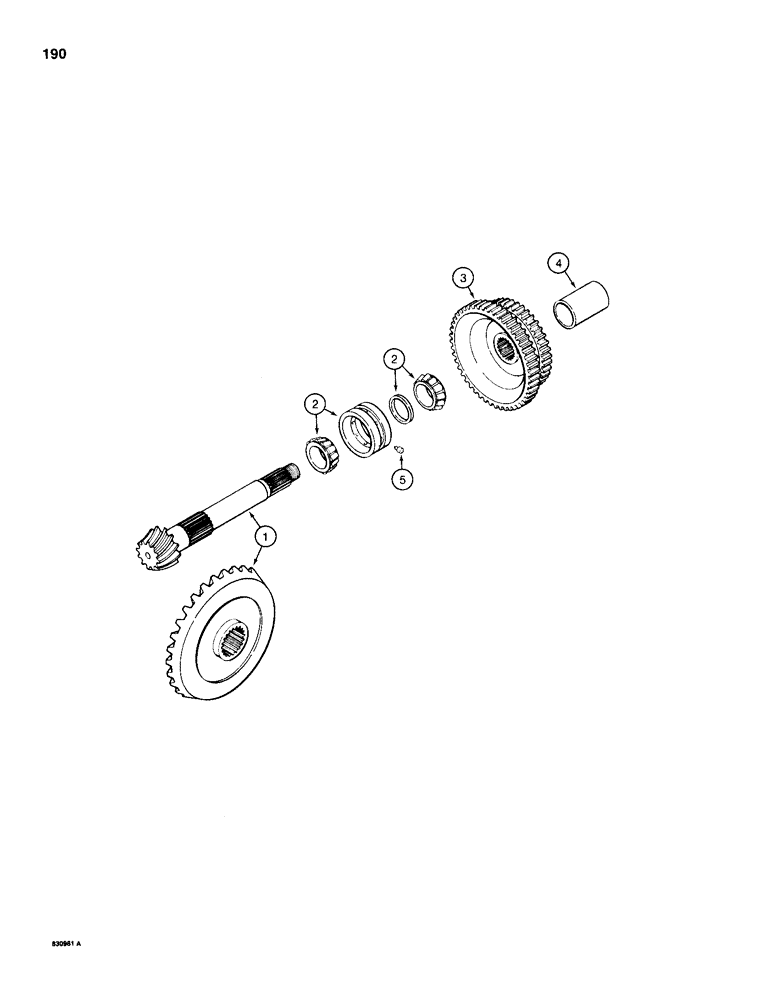

Схема запчастей Case 1155D - (190) - TRANSMISSION BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN
1
3
4
5
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G107899

GEAR, BEVEL

SHAFT AND GEAR SET - matched, right-hand

1шт.

1

G107902

GEAR

SHAFT AND GEAR SET - matched, left-hand

1шт.

2

A50680

TAPERED BEARING,2.2505" ID x 4.251" OD x 2.5786"

- pinion gear

2шт.

3

G102299

GEAR

- pinion shaft

2шт.

4

A50682

BUSHING

SPACER - pinion gear

2шт.

5

G109429

PIN,7.32mm OD x 14.22mm L

- bearing retaining

2шт.
