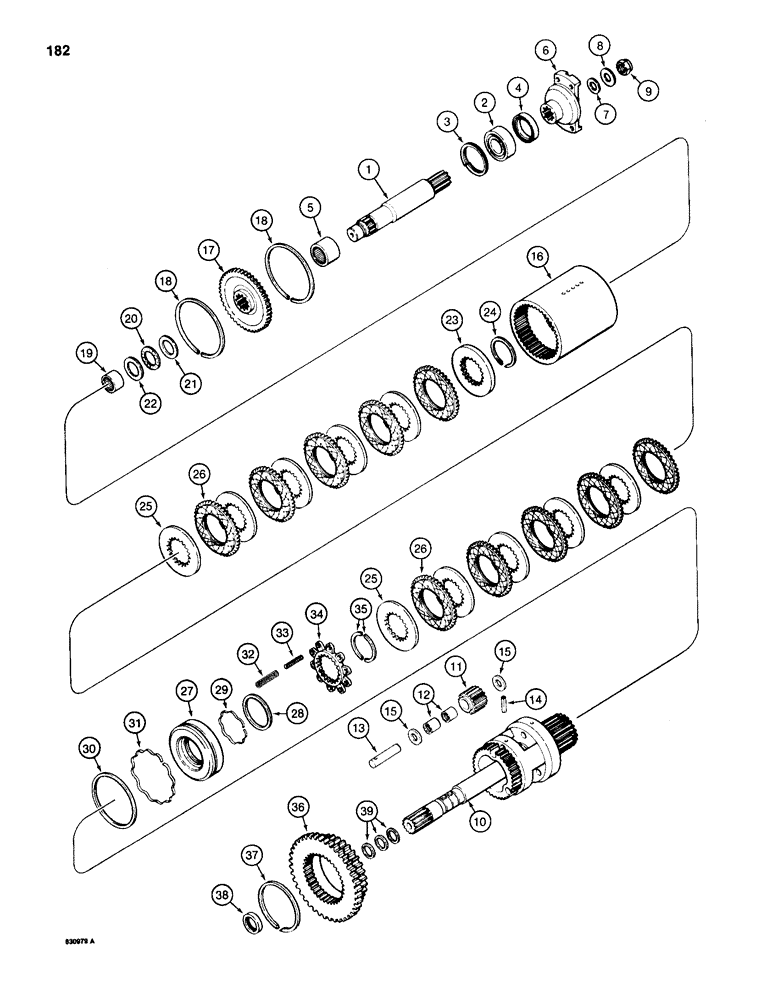

Запчасти Case 1155D (182) - TRANSMISSION INPUT SHAFT, TRANSMISSION PLANETARY SYSTEM (06) - POWER TRAIN

1

A50605

SHAFT

INPUT SHAFT - transmission

1шт.

2

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BALL BEARING - input shaft

1шт.

3

A51419

SNAP RING,#354, 3.684, Int, Spiral

- ball bearing

1шт.

4

A50420

SEAL

OIL SEAL - part of front cover assembly, see Fig. 178

1шт.

Part of transmission seal kit P/N G101829

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

- input shaft

1шт.

6

G103021

YOKE

- input shaft to drive shaft

1шт.

7

A50608

WASHER

- plastic

1шт.

Part of transmission seal kit P/N G101829

1шт.

8

A51808

WASHER

- yoke retainer

1шт.

9

131-465

LOCK NUT,7/8"-14, G8

NUT - hex, self-locking, 7/8" - 14 NF, plated

1шт.

G102422

GEAR WHEEL

PLANETARY ASSEMBLY - with high range clutch, Includes: Ref. 10 - 37

1шт.

10

A50964

GEAR WHEEL

CARRIER - planetary, transmission system

1шт.

11

A50616

GEAR

- planetary, 18 teeth, transmission planetary system

3шт.

12

A62548

NEEDLE BEARING,0.62" ID x 0.88" OD x 0.875"

- planetary , transmission planetary system

6шт.

13

A50618

SHAFT

- planetary gear, transmission system

3шт.

14

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Transmission planetary system 1/8" x 7/8", Slotted

3шт.

15

A50617

WASHER

THRUST WASHER - planetary gear, transmission system

6шт.

16

G102600

RING

GEAR - planetary, transmission planetary system

1шт.

17

A50637

GEAR

- 70 external teeth, transmission planetary system

1шт.

18

A50639

RING

SNAP RING - gear, transmission planetary system

2шт.

19

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

- clutch, transmission planetary system

1шт.

20

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

- gear, transmission planetary system

1шт.

21

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

RACE - thrust bearing, inner, 0.032" (0.793 mm) thick, transmission planetary system

1шт.

22

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE - thrust bearing, outer, 0.125" (3.17 mm) thick, transmission planetary system

1шт.

23

A50634

PLATE

- backing, transmission planetary system

1шт.

24

A50635

SNAP RING,#287, 2.713, Ext

- clutch, transmission planetary system

1шт.

25

A50631

PLATE

- steel, 22 internal teeth, transmission planetary system

10шт.

26

G102263

DISC

FRICTION DISC - 70 external teeth, transmission planetary system

10шт.

A50621

PISTON

ASSEMBLY - high range clutch, Includes: Ref. 27 - 31, transmission planetary system

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - high range clutch, transmission planetary system

1шт.

28

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- seal, inner, transmission planetary system

1шт.

Part of clutch repair kit P/N G101831

1шт.

29

G102093

SPRING

- wave, small, transmission planetary system

1шт.

Part of clutch repair kit P/N G101831

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - seal, outer, transmission planetary system

1шт.

Part of clutch repair kit P/N G101831

1шт.

31

G102094

SPRING

- wave, large, transmission planetary system

1шт.

Part of clutch repair kit P/N G101831

1шт.

32

A50627

SPRING

- piston return, outer, transmission planetary system

10шт.

Part of clutch repair kit P/N G101831

1шт.

33

A50628

SPRING

- piston return, inner, transmission planetary system

10шт.

Part of clutch repair kit P/N G101831

1шт.

34

A50629

RETAINER

- piston return springs, transmission planetary system

1шт.

35

A50630

RING

- split, spring retainer, transmission planetary system

1шт.

36

G106716

GEAR

- forward and reverse drive, transmission planetary system

1шт.

37

A50620

RING

RETAINING RING - gear, transmission planetary system

1шт.

38

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - PTO shaft, transmission planetary system

1шт.

Part of transmission seal kit P/N G101829

1шт.

39

A51841

RING

- seal, PTO shaft, transmission planetary system

3шт.

Part of transmission seal kit P/N G101829

1шт.

G101829

GASKET KIT

KIT - transmission seal, Includes: Refs. 4, 7, 38 & 39, for complete kit see Fig. 206, transmission planetary system

1шт.

G101831

GASKET KIT

KIT - clutch repair, Includes: Refs. 28 - 33, for complete kit see Fig. 208, transmission planetary system

1шт.
