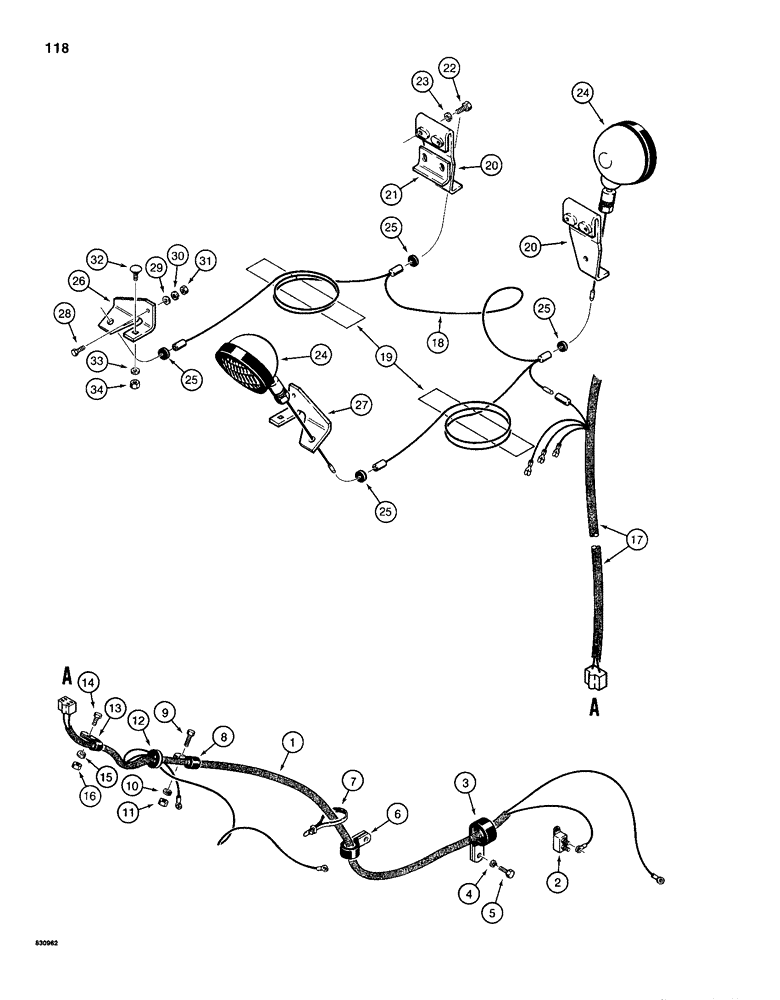

Запчасти Case 1155D (118) - LAMPS AND WIRING, MODELS WITH CAB (04) - ELECTRICAL SYSTEMS

1

R47446

HARNESS

- circuit breaker to main cab harness

1шт.

2

R45475

BREAKER

CIRCUIT BREAKER - 40 amp, for circuit breaker mounting, Fig. 106

1шт.

3

S86530

CLAMP

- harness, above circuit breaker

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

R14668

CLAMP

- use intake manifold hardware

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

49838

CLAMP

- harness, below instrument panel

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

353-703

GROMMET

- harness, at instrument panel

1шт.

13

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness, above instrument panel, loader models only

1шт.

14

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Loader models only Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Loader models only 5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

Loader models only 5/16"-18, G5

1шт.

17

R47447

HARNESS

- main wiring, cab

1шт.

For additional main cab harness connections, Fig. 122.

1шт.

18

R47448

ELECTRICAL WIRE

WIRE - cab lamps

1шт.

19

NSS

NOT SOLD SEPARAT

TAPE - wire retaining, vinyl covered, buy locally

1шт.

20

R47401

SUPPORT

BRACKET - front lamp mounting

2шт.

21

R47405

SUPPORT

CLAMP - bracket retaining, front lamps

2шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

R51415

LAMP

ASSEMBLY - flood, parts list Fig. 120

4шт.

25

353-700

BUSHING

GROMMET - lamp wire at cab frame, 3/8" hole size

4шт.

26

R47403

BRACKET

- rear lamp mounting, left-hand

1шт.

27

R47404

BRACKET

- rear lamp mounting, right-hand

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

29

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

111-110

SCREW,Short NK, 1/4"-20 x 7/8", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 7/8", G2

2шт.

33

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

34

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.
