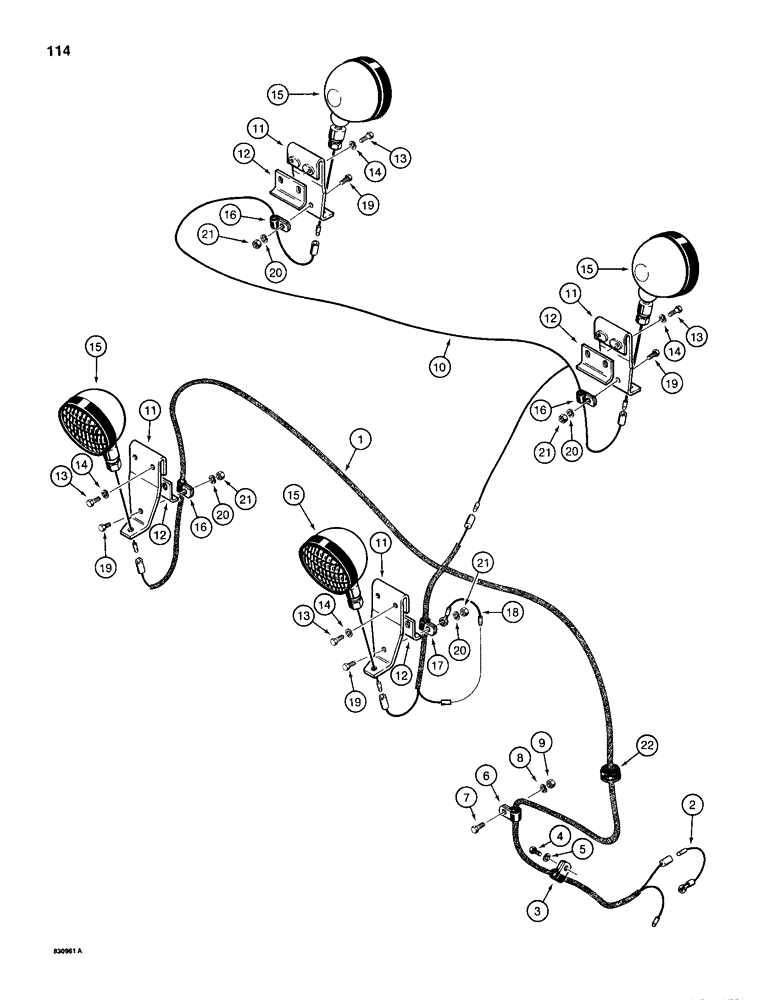

Запчасти Case 1155D (114) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, *WITH REAR LAMPS MOUNTED OUTSIDE CANOPY SCREEN, IF USED (04) - ELECTRICAL SYSTEMS

1

R47470

HARNESS

- rear lamps

1шт.

2

R47807

ELECTRICAL WIRE

WIRE - ground, rear harness

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness, on hydraulic reservoir

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness, on rear cover, if used

1шт.

7

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 1-1/4", grade 8, Teflon coated, if used

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

10

R47471

HARNESS

- front lamps

1шт.

11

R47401

SUPPORT

BRACKET - lamp mounting

4шт.

12

R47405

SUPPORT

CLAMP - bracket retaining

4шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

R51415

LAMP

ASSEMBLY - flood, parts list Fig. 120

4шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness to lamp bracket, all lamps except right-hand rear

3шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness to lamp bracket, right-hand rear

1шт.

18

R47807

ELECTRICAL WIRE

WIRE - ground, at right-hand rear lamp

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

22

A23870

GROMMET

- rear lamp harness, through top of battery cover, if used

1шт.
