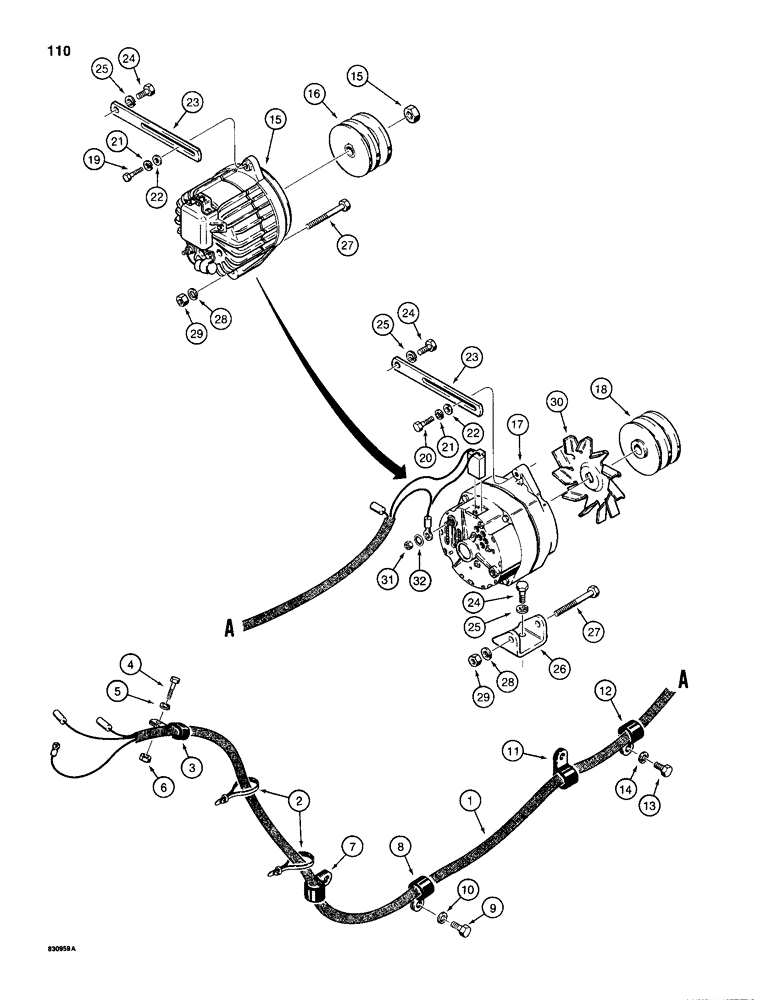

Запчасти Case 1155D (110) - FRONT ELECTRICAL WIRING, INSTRUMENT PANEL TO ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

R47118

HARNESS

- front wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D47783

CLAMP

- harness, at instrument panel

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

R14668

CLAMP

- harness, use manifold hardware

1шт.

8

S86530

CLAMP

- harness, at circuit breaker mounting plate

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

49845

CLAMP

- harness, use manifold hardware

1шт.

12

49845

CLAMP

- harness, behind alternator

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

R36588

ALTERNATOR

- 16 amp, 24 volt, Motorola No. 70D44966E01, parts list Fig. 82 and 84, if used

1шт.

16

A41361

PULLEY

- Motorola alternator only

1шт.

17

A167152

ALTERNATOR

- 40 amp, 24 volt, Delco-Remy No. 1105510, parts list Fig. 86, if used

1шт.

18

L59716

PULLEY

- Delco-Remy alternator only

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Motorola alternator only Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

20

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated, Delco-Remy alternator only

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

D41740

WASHER

- flat, 3/8", hardened

1шт.

23

R40121

STRAP

- alternator adjusting

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

26

A160391

BRACKET

- alternator mounting

1шт.

27

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

A43384

FAN

- Delco-Remy alternator only

1шт.

31

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1 (8.8), plated, output terminal, Delco-Remy alternator only

1шт.

32

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , Used with Ref.31 Int Tooth, 1/4"

1шт.
