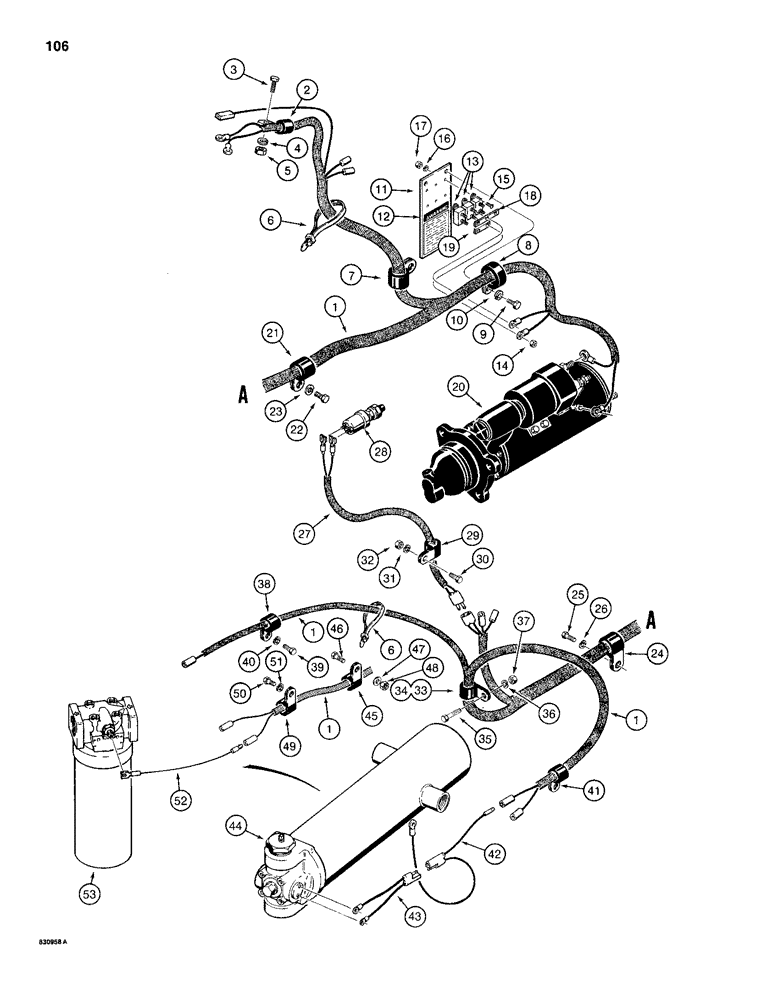

Запчасти Case 1155D (106) - REAR ELECTRICAL WIRING, HARNESS TO INSTRUMENT PANEL, STARTER & REAR OF TRAC (04) - ELECTRICAL SYSTEMS

1

R45667

HARNESS

- main rear wiring, loader models

1шт.

1

R49618

HARNESS

- main rear wiring, dozer and drawbar models

1шт.

2

D47783

CLAMP

- harness, at instrument panel

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

R14668

CLAMP

- harness, use intake manifold hardware

1шт.

8

S86530

CLAMP

- harness, at circuit breaker plate

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

R51820

PLATE

- circuit breaker and decal mounting, includes decal, Includes: Ref. 12

1шт.

12

REF

INSTRUCTION

DECAL - Warning, wrong jumper cable connections to starter terminals (see Fig. 464 for decal)

1шт.

13

R45475

BREAKER

CIRCUIT BREAKER - 40 amp, 24 volt, two used without cab, three used with cab, Includes: Ref. 14

2-3шт.

14

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF, plated

2шт.

15

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW - pan Phillips head, No. 8 - 32 NC x 3/8", plated

4-6шт.

16

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4-6шт.

17

129-16

NUT,#8-32

4-6шт.

18

R45467

PLATE ASSY.

PLATE - circuit breaker retaining, with three holes, upper

1шт.

19

R45468

PLATE ASSY.

PLATE - circuit breaker retaining, with two holes, lower

1шт.

20

REF

INSTRUCTION

STARTER - for correct assembly and components, Fig. 88 - 94, for mounting, Fig. 104

1шт.

21

S86530

CLAMP

- harness, at brake mounting frame

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

S86530

CLAMP

- harness to main frame, loader models only

1шт.

25

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Loader models only Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

R27209

ELECTRICAL WIRE

WIRE - starter switch

1шт.

28

D34924

SWITCH

- starter, push button

1шт.

29

49838

CLAMP

- starter switch wire

1шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - hex, 5/16" - 18 NC, plated

1шт.

33

R14668

CLAMP

- harness, below key switch, used to route rear harness and positive battery cable together through the same clamp, no longer used, replace with Ref. 34 clamp for harness

1шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness, below key switch, use to route rear harness alone through its own clamp (double-clamp with positive battery cable clamp on loader models, or with battery ground cable clamp on dozer models)

1шт.

35

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

38

R14668

CLAMP

- harness wire to backup alarm with positive battery cable

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness wire, uses transmission filter bracket hardware, Fig. 231, parts used with horizontally-mounted transmission filter, if used

1шт.

42

R43543

ELECTRICAL WIRE

WIRE - ground, transmission filter, eyelet bolts to transmission filter mounting bracket, parts used with horizontally-mounted transmission filter, if used

1шт.

43

R43544

ELECTRICAL WIRE

WIRE - at filter indicator connection, parts used with horizontally-mounted transmission filter, if used

1шт.

44

R47180

FILTER

- transmission, horizontally-mounted, if used, Fig. 232, mounting Fig. 230, parts used with horizontally-mounted transmission filter, if used

1шт.

45

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness wire, on dozer models bolt to tube clamp bracket at control valve (Fig. 275), on loader models bolt to hydraulic reservoir using Ref. 46-48, parts used on vertically-mounted filter, if used

1шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Loader models only, parts used on vertically-mounted filter, if used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Loader models only, parts used on vertically-mounted filter, if used 3/8"

1шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Loader models only, parts used on vertically-mounted filter, if used 3/8"-16, G5

1шт.

49

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness wire at filter, parts used on vertically-mounted filter, if used

1шт.

50

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Parts used on vertically-mounted filter, if used Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used on vertically-mounted filter, if used 3/8"

1шт.

52

R52649

ELECTRICAL WIRE

WIRE - at filter indicator connection, parts used on vertically-mounted filter, if used

1шт.

53

R49464

FILTER

- transmission, vertically-mounted, if used, Fig. 233A, mounting parts Fig. 230, parts used on vertically-mounted filter, if used

1шт.
