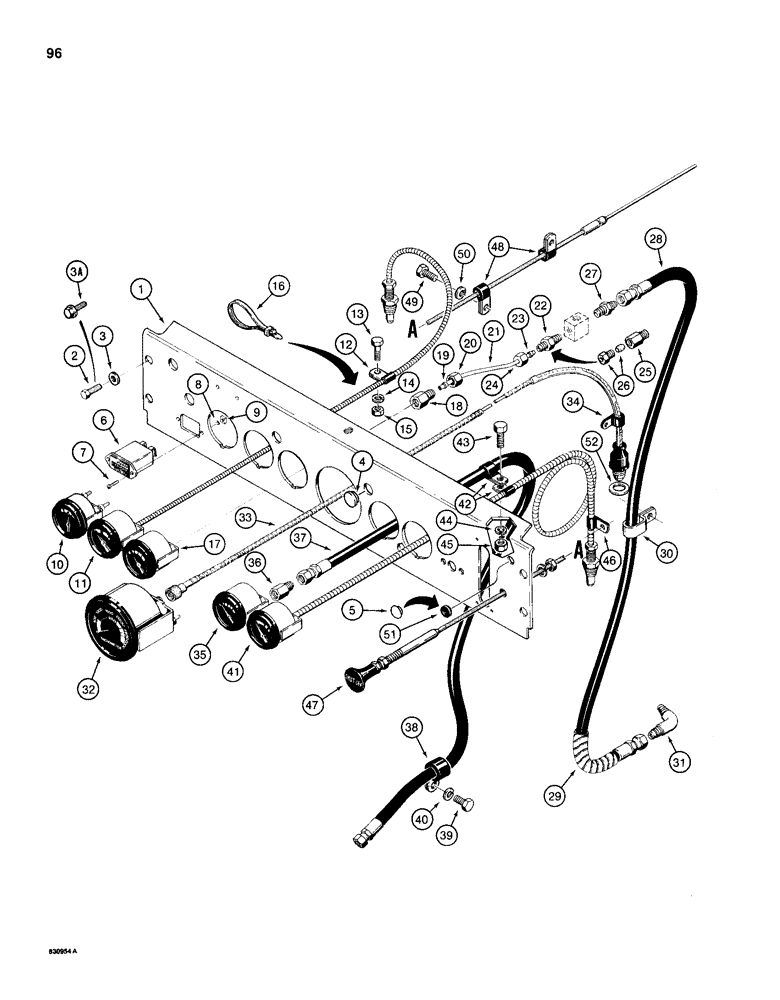

Запчасти Case 1155D (096) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

R51578

PANEL

INSTRUMENT PANEL - includes decal, for decal part number see Fig. 462

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

For instrument panel lamps, lamp switch, and engine oil pressure switch, see figure 101. For air restriction indicator, see figure 61. For instrument panel cover and lockup parts, see figure 405. If your instrument panel decal has holes for panel mounting hardware, use bolt 2 and washer 3. If your instrument panel decal does not extend under panel mounting hardware, use bolt 3A.

1шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, replaces lock washer used in production on some models, if used

4шт.

For instrument panel lamps, lamp switch, and engine oil pressure switch, see figure 101. For air restriction indicator, see figure 61. For instrument panel cover and lockup parts, see figure 405. If your instrument panel decal has holes for panel mounting hardware, use bolt 2 and washer 3. If your instrument panel decal does not extend under panel mounting hardware, use bolt 3A.

1шт.

3a

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, if used

4шт.

For instrument panel lamps, lamp switch, and engine oil pressure switch, see figure 101. For air restriction indicator, see figure 61. For instrument panel cover and lockup parts, see figure 405. If your instrument panel decal has holes for panel mounting hardware, use bolt 2 and washer 3. If your instrument panel decal does not extend under panel mounting hardware, use bolt 3A.

1шт.

4

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16" diameter, if used

1шт.

5

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8" diameter, if used

1шт.

6

L107631

METER

HOURMETER - engine

1шт.

7

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

MACHINE SCREW - Fillister head, No. 5 - 40 NC x 1/2"

2шт.

8

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

9

129-44

SQUARE NUT,Sq, #5-40

2шт.

10

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

11

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

12

D47783

CLAMP

- engine temperature cable and wiring harnesses

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

R46054

OIL PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER - straight, engine oil pressure gauge, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

19

D37176

SLEEVE

- adapter

1шт.

20

D37362

TUBE NUT

- adapter

1шт.

21

R37216

TUBE,152.4 mm L

- nylon, 6" (152 mm) long, engine oil pressure, cut from bulk tubing, see Parts Substitution List for bulk tube options

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for service order 222-400, Figs. 25 and 26, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

23

D37176

SLEEVE

- adapter

1шт.

24

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - straight, service replacement, Includes: Ref. 25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

26

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

27

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

1шт.

28

R40333

HOSE

- 50" (1270 mm) long, engine oil pressure

1шт.

29

R12586

TAPE

GUARD - hose

1шт.

30

R14668

CLAMP

- engine oil pressure hose and fuel shutoff cable, uses intake manifold hardware

1шт.

31

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree

1шт.

32

R27126

TACHOMETER

- engine rpm

1шт.

33

R27130

CABLE

- tachometer

1шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tachometer cable, uses intake manifold hardware

1шт.

35

R53929

GAUGE

- transmission oil pressure

1шт.

36

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight

1шт.

37

R43230

HOSE

- 90" (2286 mm) long, transmission oil pressure

1шт.

38

S86530

CLAMP

- transmission oil pressure hose at brake frame

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

R38645

GAUGE

- torque converter temperature

1шт.

42

49838

CLAMP

- transmission oil pressure hose and torque converter temperature cable

2шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

47

R42035

CONTROL

- fuel shutoff

1шт.

48

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- fuel shutoff cable

2шт.

49

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

51

353-703

GROMMET

- wiring harness, used on cab models only

1шт.

52

195-21

WASHER,5/16"

- flat, , non-plated, if used 5/16"

1шт.

If tachometer cable does not seat down tightly into it's adapter on the engine, insert 1 flat washer, Ref. 52 into the adapter first.

1шт.
