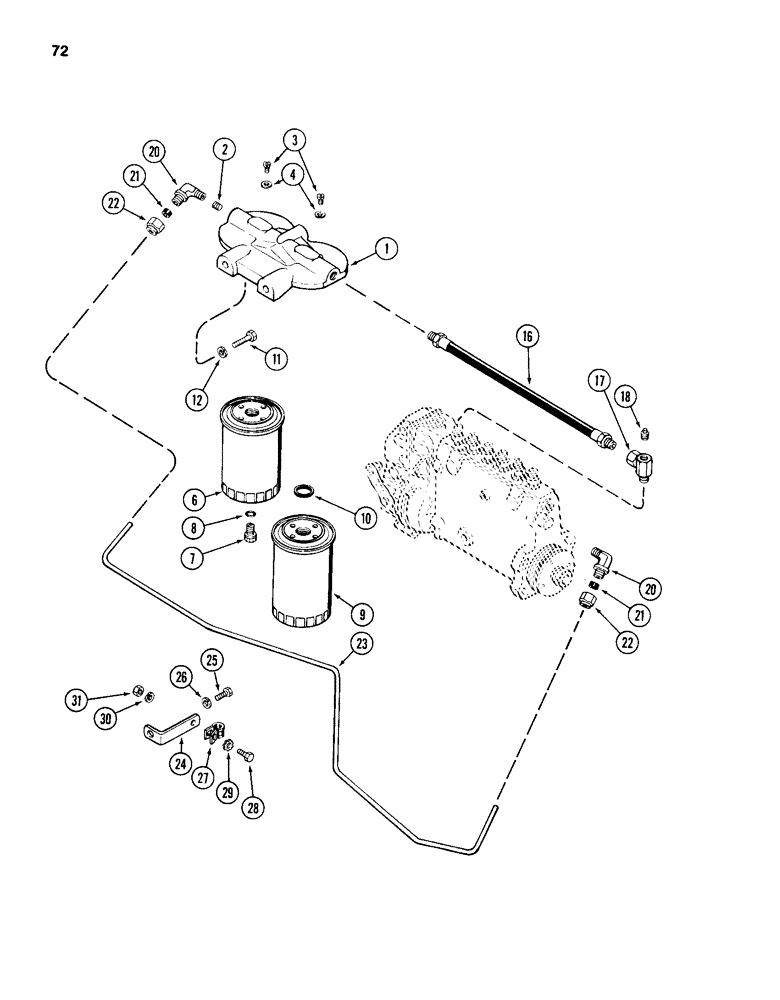

Запчасти Case 1155D (072) - FUEL FILTER SYSTEM, 504BD AND 504BDT DIESEL ENGINES (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - filter, fuel, Includes: Ref. 2 & 3

1шт.

2

221-1849

PLUG

- socket hex head, 1/8 inch PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed, slotted round head, No. 10-32 x 5/16 inch

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (aluminum)

2шт.

A41745

KIT

ELEMENT KIT - filters, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage \s8(Reference No. A58712)\s(10, Includes: Ref. 7 & 8

1шт.

7

G49080

PLUG

- filter drain, 12 point head, 3/8-24 inch

1шт.

8

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage \s8(Reference No. A58713)\s(10, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - filter to head (See Note)\s8(Reference No. A42315)\s(10

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump, 16 inch (406 mm) long

1шт.

17

A20539

FITTING

UNION - hose (at pump)

1шт.

18

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, square head, 1/8 inch PT

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter tube, Includes: Ref. 21 & 22

2шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - for 5/16 inch tube

1шт.

23

A157329

TUBE

- pump to first stage filter

1шт.

24

A64856

BRACKET

- tube support

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube retaining

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

29

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - internal-external shakeproof, 1/4 inch

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.
