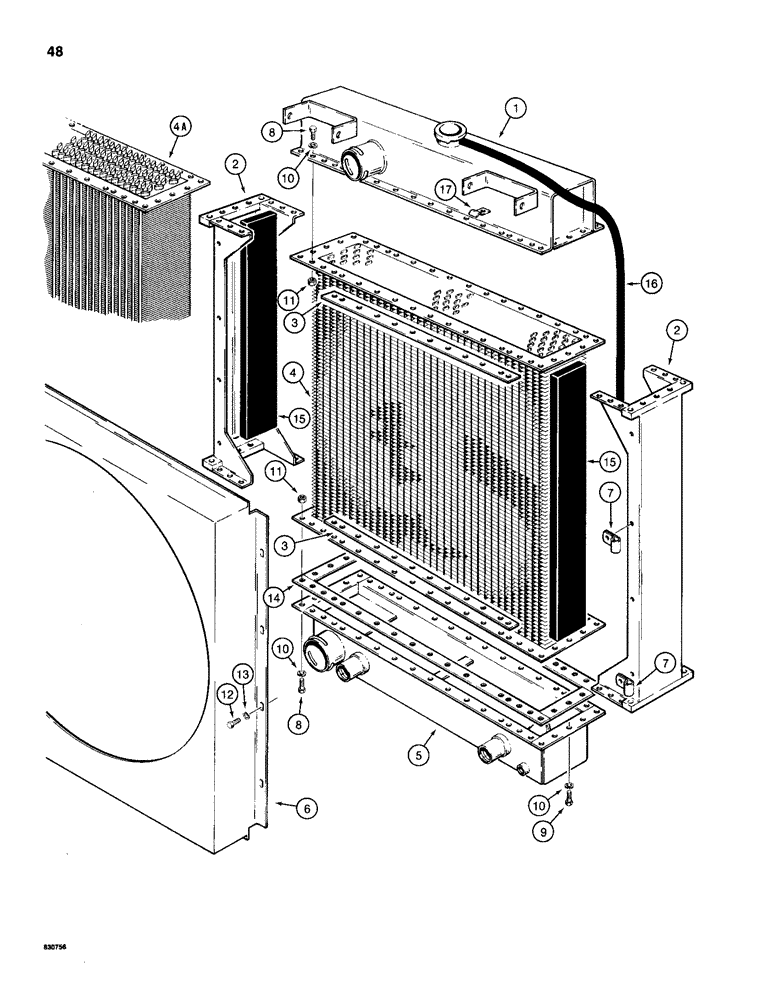

Запчасти Case 1155D (048) - RADIATOR ASSEMBLIES, WITH COOLER TANK ON THE BOTTOM (02) - ENGINE

R47150

RADIATOR

ASSEMBLY - standard, General Thermodynamics No. 286-C, with copper core ,assembly no longer available, for service order R50209 conversion kit (which includes R48933 radiator assembly on figure 50,) see figure 228 for kit, Includes: Ref. 1 - 15

1шт.

R47151

RADIATOR

ASSEMBLY - antisandblast, General Thermodynamics No. 286-D, with steel core, assembly no longer available, for service order R50209 conversion kit (which includes R48933 radiator assembly on Fig. 50), seeFig. 228 for kit, Includes: Ref. 1 - 15

1шт.

1

N7892

TANK

- top

1шт.

2

N7890

LARGE PLATE

SIDE ASSEMBLY - radiator

2шт.

3

N8739

WASHER

PLATE - reinforcement, core

4шт.

4

N7888

BODY

CORE - copper, R47150 standard radiator assembly

1шт.

4a

N7885

CORE

- steel, R47151 antisandblast radiator assembly

1шт.

5

N7891

TANK

- bottom

1шт.

6

N8458

SHROUD

- radiator

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP - overflow tube

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

72шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

84шт.

11

9635082

NUT,5/16" - 18, Gr 5

72шт.

12

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - hex head, 1/4" - 20 NC x 3/4", plated

8шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

14

N6649

STRIP-GASKET

- cork, 36" (914 mm) long, Serial Range: cut-length

1шт.

15

N7887

PADDING

INSULATOR - vibration

2шт.
