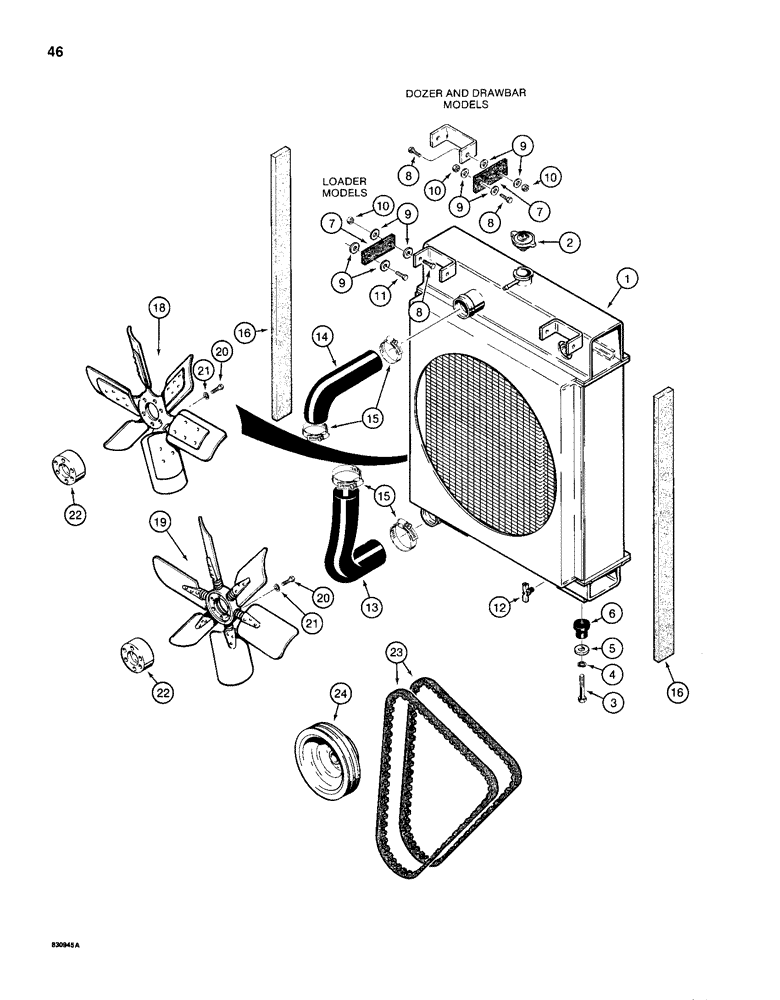

Запчасти Case 1155D (046) - RADIATOR, FANS, AND HOSES (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - for correct assembly and components, Figs. 48 & 50

1шт.

2

D25826

CAP

- radiator

1шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Core 1/2"

2шт.

5

D25022

WASHER

- flat, 1-3/4" OD

2шт.

6

R29799

SHOCK ABSORBER

INSULATOR - vibration

2шт.

7

D73500

STRAP

- radiator mounting

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4 used on dozer and drawbar models, two used on loader models Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2-4шт.

9

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 1-3/8" OD

8шт.

10

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated, four used on dozer and drawbar models, two used on loader models

2-4шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Use with Loctite, used on loader models only Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

12

217-92

COCK

VALVE - drain

1шт.

13

R50208

RADIATOR HOSE,66.70 mm ID x 300.00 mm, SAE 20R4 Class D-1, SAE 20R4 Class SC

HOSE - radiator, lower

1шт.

14

R47084

RADIATOR HOSE,2.50" ID x 11.00", SAE 20R4

Upper 2.50" ID x 11.00", SAE 20R4

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, adjustable

4шт.

16

REF

INSTRUCTION

PAD - air, non-recirculating, 2" (51 mm) x 31-5/16" (795 mm), cut from R30870, see below

2шт.

18

R27704

FAN

- pusher, if used, optional

1шт.

19

R27705

FAN

- reversible, if used, standard, recommended for use on all models

1шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Pusher and reversible fans, dozer and drawbar models Hex, 3/8"-16 x 1 3/4", G5

6шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Pusher and reversible fans, loader models Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

22

R41829

ELECTRO/HYD CONTACT

SPACER - pusher and reversible fans, dozer and drawbar models (loader models do not use spacer)

1шт.

23

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Fan, Matched, Dozer and drawbar models 0.69" W x 60.00" L

1шт.

23

L71057

SET OF BELTS,0.69" W x 62.00" L

Fan, Matched set of two, Loader models 0.69" W x 62.00" L

1шт.

24

REF

INSTRUCTION

PULLEY - fan drive, see figure 32

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.
