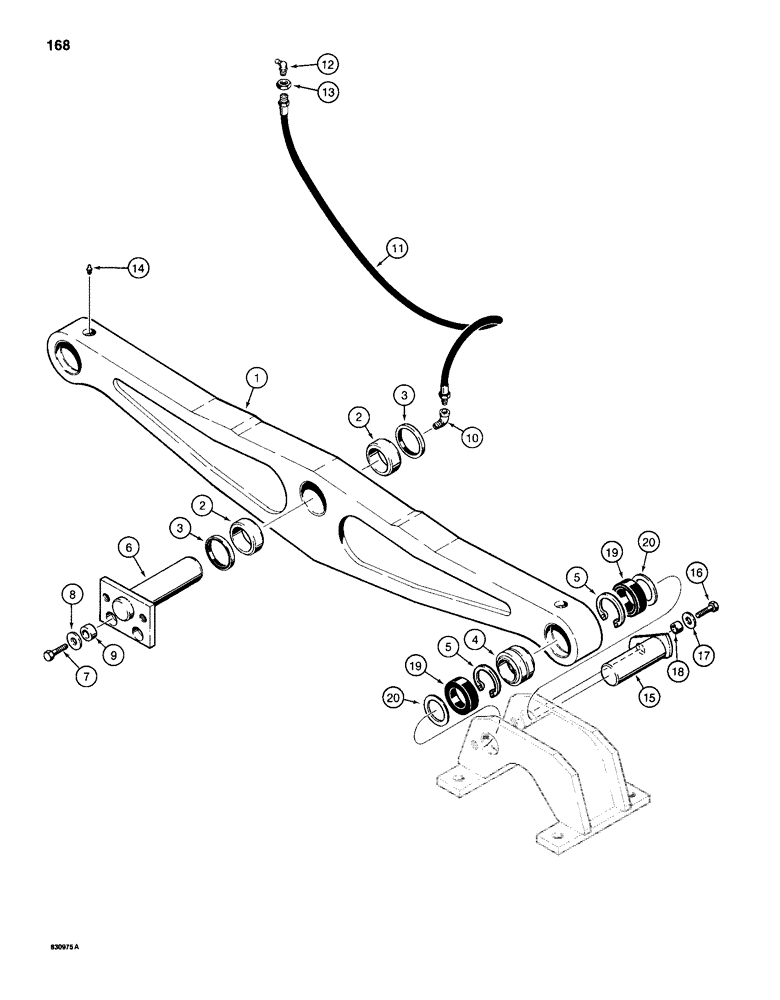

Запчасти Case 1155D (168) - SUSPENSION SYSTEM - EQUALIZER BEAM, DOZER AND DRAWBAR MODELS (11) - TRACKS/STEERING

R47800

BEAM

EQUALIZER BEAM ASSEMBLY - 62" (1575 mm) gauge standard dozer models , Includes: Ref. 1 - 5

1шт.

R48206

BEAM

EQUALIZER BEAM ASSEMBLY - 74" (1880 mm) gauge wide track and LGP dozer models, not shown, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

EQUALIZER BEAM - suspension

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- center

2шт.

3

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

- bushing

2шт.

4

S109373

BUSHING

BEARING - outer, self-aligning

2шт.

5

NLS

NO LONGER SERVICED

3.156", Int, #315, outer brg

4шт.

6

R40497

PIN,63.5mm OD x 213mm L

- center, equalizer beam to main frame

1шт.

7

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite Hex, 3/4"-10 x 2", G5

2шт.

8

D31328

WASHER

- hardened, 3/4"

2шт.

9

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

10

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

STREET ELBOW - 90 degree, 1/8" NPT

1шт.

11

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

- 41" (1041 mm) long

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF, tapered

1шт.

13

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

15

R47945

PIN,50.77mm OD x 151.13mm L

- beam, outer

2шт.

16

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8, use with Loctite

2шт.

17

D31328

WASHER

- hardened, 3/4"

2шт.

18

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

19

R36521

SEAL

- pin

4шт.

20

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- seal

4шт.
