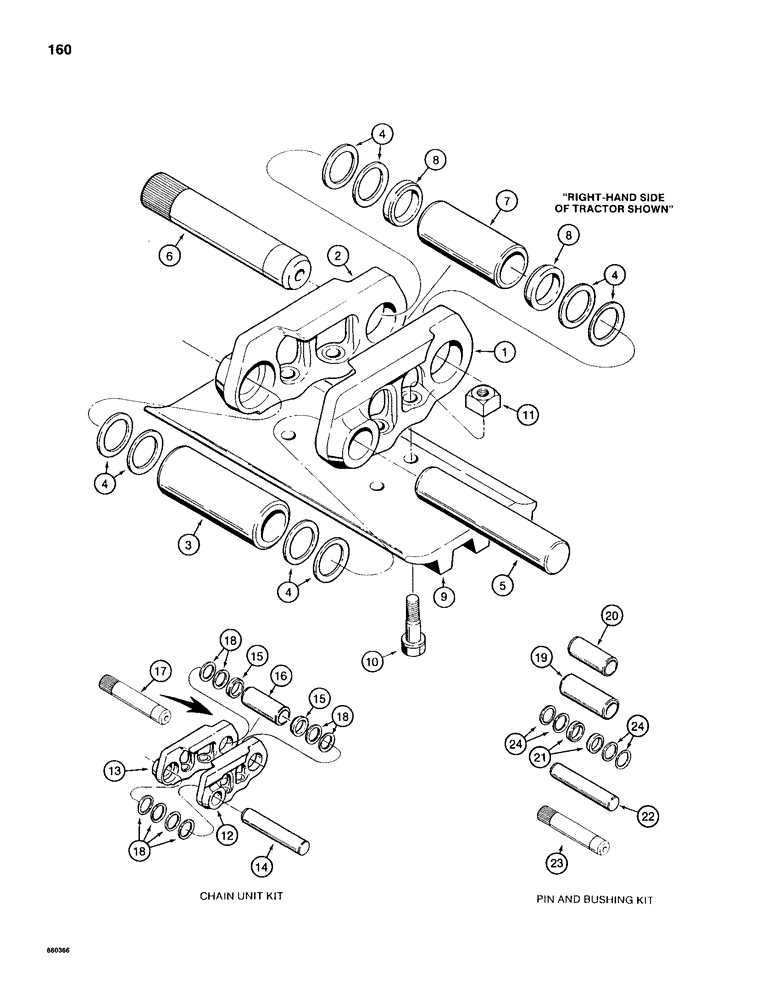

Запчасти Case 1155D (160) - SEALED TRACK CHAIN, WITH 2-5/16" (59 MM) OD BUSHINGS, IF USED (11) - TRACKS/STEERING

R51200

CHAIN (CE)

CHAIN ASSEMBLY - 40 unit, loader models and all dozer models except LGP models, Includes: Ref. 1 - 9

2шт.

See track frame Figs. 134-138 for correct sprocket usage.

1шт.

1

R51185

DRAG LINK

LINK - track, right-hand

40шт.

2

R51186

CHAIN LINK

LINK - track, left-hand

40шт.

3

R51195

BUSHING

- standard pin, 2-5/16" (59 mm) OD

39шт.

4

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

BELLEVILLE SPRING - bushing

160шт.

5

S108923

PIN

- Standard

39шт.

6

S108926

PIN

- Master

1шт.

7

R51196

BUSHING

PIN - master pin

1шт.

8

R51199

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

TRACK SHOE - Fig. 164 & 166 for options

80шт.

10

R27166

BOLT

- special

320шт.

11

R25688

SQUARE NUT

- square, special

320шт.

R51729

LINK ASSY.

KIT - chain unit, includes instruction sheet, Includes: Ref. 12 - 18

1шт.

12

R51185

DRAG LINK

LINK - track, right-hand, chain unit kit ( includes standard & master track pins)

1шт.

13

R51186

CHAIN LINK

LINK - track, left-hand, chain unit kit ( includes standard & master track pins)

1шт.

14

S108923

PIN

- Track, Standard, Chain unit kit (Includes standard & master track pins)

2шт.

15

R51199

SPACER

- bushing, chain unit kit ( includes standard & master track pins)

2шт.

16

R51196

BUSHING

- chain unit kit ( includes standard & master track pins)

1шт.

17

S108926

PIN

- Chain unit kit (includes standard & master track pins)

1шт.

18

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

BELLEVILLE SPRING - bushing, chain unit kit ( includes standard & master track pins)

8шт.

R51730

AXLE PIN

KIT - pin and bushing, includes instruction sheet, Includes: Ref. 19 - 24

1шт.

19

R51195

BUSHING

- standard , long, pin &bushing kit (services complete track chain, both sides of trac)

78шт.

20

R51196

BUSHING

- master , short, pin & kit (services complete track chain, both sides of trac)

2шт.

21

R51199

SPACER

- master , pin & bushing kit (services complete track chain, both sides of trac)

4шт.

22

S108923

PIN

- Standard, Option, .003" (0.076 mm) oversize, bushing kit (Services complete track chain, both sides of trac)

78шт.

23

R54282

SERVICE KIT

PIN - master, service option, .003" (0.076 mm) oversize, bushing kit (services complete track chain, both sides of trac)

2шт.

24

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

BELLEVILLE SPRING - pin & bushing kit (services complete track chain, both sides of trac)

320шт.
