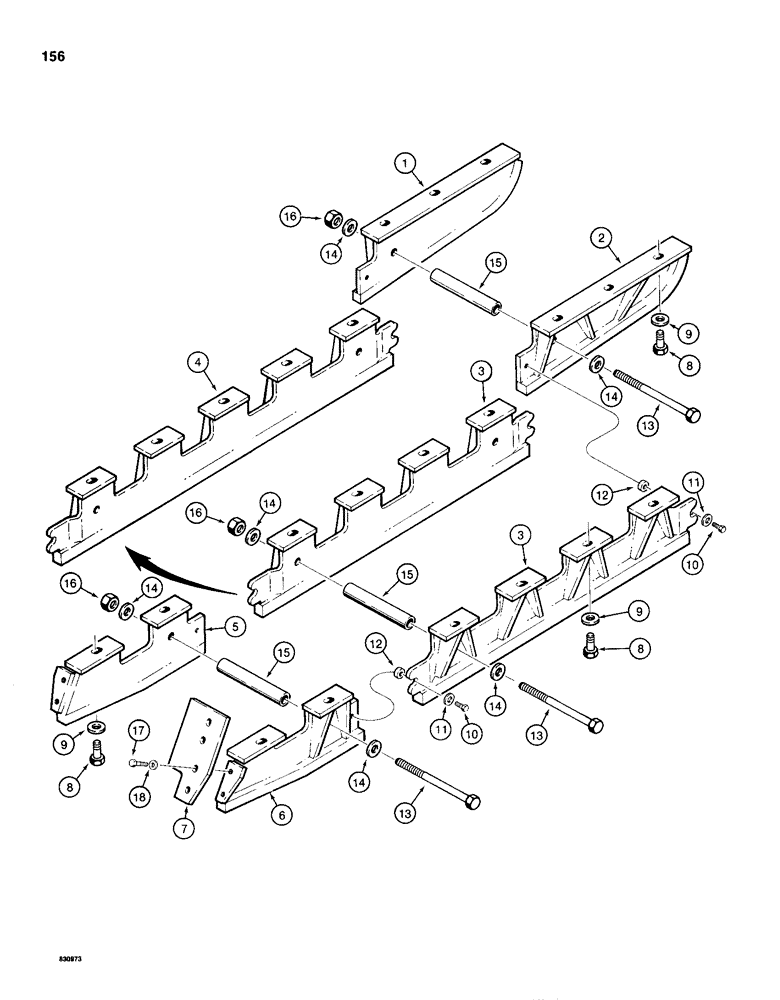

Запчасти Case 1155D (156) - TRACK GUARDS (11) - TRACKS/STEERING

1

R44377

PROTECTOR

TRACK GUARD - front, left-hand track - outer, right-hand track - inner

2шт.

2

R44378

PROTECTOR

TRACK GUARD - front, right-hand track - outer, left-hand track - inner

2шт.

3

R46198

GUARD ASSY.

TRACK GUARD - center, all models except LGP dozer models

4шт.

4

R44373

PROTECTOR

TRACK GUARD - center, LGP dozer models only

4шт.

5

R44385

GUIDE

TRACK GUARD - rear, left-hand track - outer, right-hand track - inner

2шт.

6

R44386

GUIDE

TRACK GUARD - rear, right-hand track - outer, left-hand track - inner

2шт.

7

R46471

COVER

- rear, track guard

4шт.

8

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite Hex, 3/4"-10 x 1 1/2", G5

36-40шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

36-40шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

11

D64050

WASHER

- hardened, 1/2"

8шт.

12

R43651

SPACER

- track guards

8шт.

13

13-12176

BOLT,Hex, 3/4" - 10 x 11", Gr 5

- hex head, 3/4" - 10 NC x 11"

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

8шт.

15

R27555

SPACER

- track guards

8шт.

16

131-669

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC, plated

8шт.

17

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Use with Loctite Hex, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, 5/8"

16шт.
