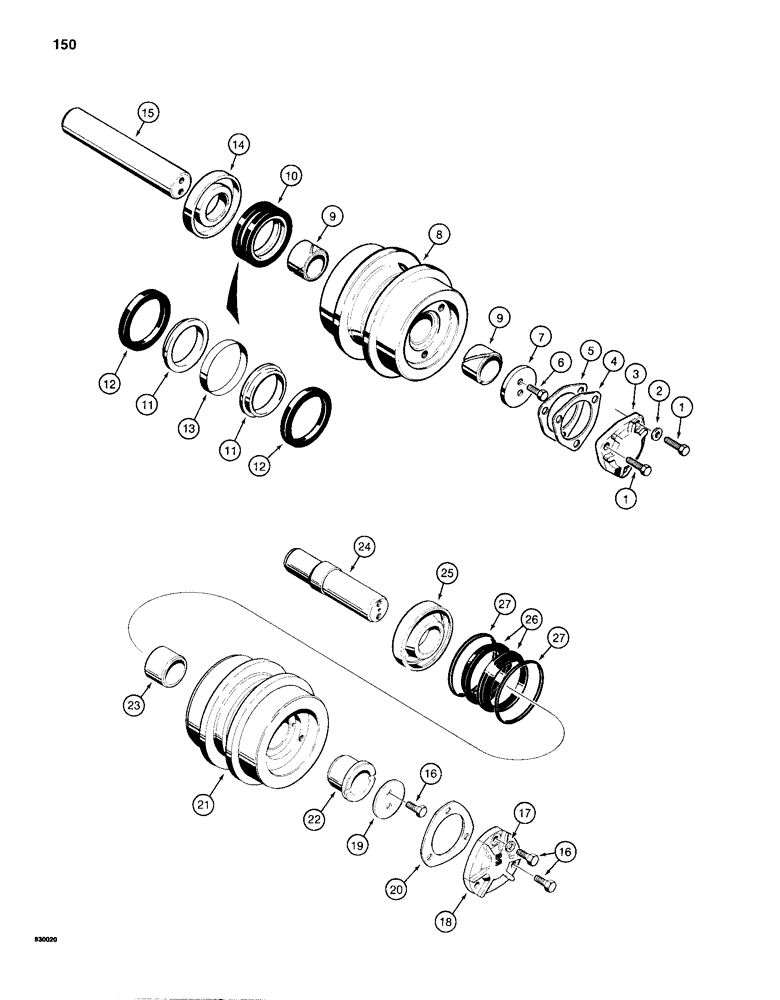

Запчасти Case 1155D (150) - CARRIER ROLLER, R25680 TRACK CARRIER ROLLER, FOR I.D. SEE ITEM 3 OF ILLUSTRATION (11) - TRACKS/STEERING

R25680

CARRIER

ROLLER ASSEMBLY - track, no longer available, order R33594 for service, see below, Includes: Ref. 1 - 15

2-4шт.

1

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

R29288

COVER ASSY

COVER - roller

1шт.

4

D30384

SHIM,.010" Thk

(0.25 mm), Brown .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(013 mm), Blue .005" Thk

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex head, 3/8" - 16 NC x 3/4", G8

2шт.

7

D30382

WASHER

RETAINER - shaft

1шт.

8

R25683

CARRIER

HUB - roller

1шт.

9

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

10

R39273

SEAL

FACE SEAL ASSEMBLY - roller, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - face seal, split

1шт.

D36826

SEAL KIT

KIT - seal repair, Includes: Ref. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D35265

COLLAR

RETAINER - seal

1шт.

15

R25685

SHAFT

- roller

1шт.

R33594

ROLLER

CARRIER ROLLER ASSEMBLY - track, with "I" on surface of cover

2-4шт.

16

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm x 1.75 x 20 mm (8.8), plated, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

5шт.

17

D35288

WASHER

- copper, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

18

R33602

CAP

COVER - R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

19

R33601

RETAINER

- shaft, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

20

R33606

GASKET

- cover, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

R33596

HUB CARRIER

HUB ASSEMBLY - R25670 track roller-double flange, Includes: Ref. 21 - 23, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

21

NSS

NOT SOLD SEPARAT

HUB - R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

22

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- hub, flanged, outer, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

23

R33597

BUSHING

- hub, inner, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

R33600

SHAFT

ASSEMBLY - R25670 track roller-double flange, Includes: Ref. 24 & 25, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT - R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

25

R33599

RETAINER

- face seal, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

R33607

SEAL

FACE SEAL ASSEMBLY - R25670 track roller-double flange, Includes: Ref. 26 & 27, R33594 track carrier roller for ID - see Ref. 18 of illustration

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rubber, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

2шт.

27

N6847

O-RING,75mm ID x 8mm Width

- seal, R25670 track roller-double flange, R33594 track carrier roller for ID - see Ref. 18 of illustration

2шт.
