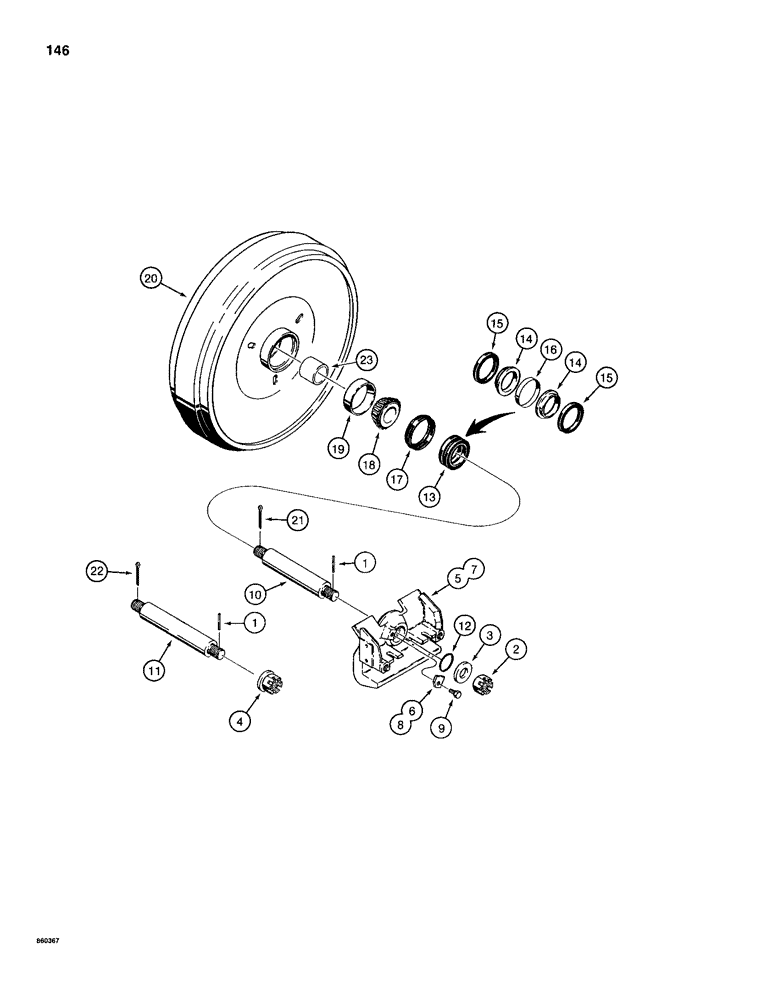

Запчасти Case 1155D (146) - IDLER ASSEMBLY - SHAFT RETAINED BY NUTS, IF USED (11) - TRACKS/STEERING

R45817

FRONT IDLER

IDLER ASSEMBLY - uses separate castle nut and washer (Refs. 2 and 3) to retain shaft, no longer available, order R52666 idler assembly Fig. 148, Includes: Ref. 1 - 23

2шт.

R51582

FRONT IDLER

IDLER ASSEMBLY - uses flange nut (Ref. 4) to retain shaft, no longer available, order R52666 idler assembly Fig. 148, Includes: Ref. 1 - 23

2шт.

1

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

PIN, , At locking tab end of shaft 5/16" x 1 7/8", Slotted

1шт.

2

25-1320

SLOTTED NUT,1 1/4"-12, G5

R45817 idler assembly only, if used 1 1/4"-12, G5

2шт.

3

D43745

WASHER

- hardened, 1/4" (6 mm) thick, R45817 idler assembly only, if used

2шт.

4

R51426

NUT

CASTLE NUT - with 7/16" (11 mm) thick flange, R51582 idler assembly only, if used

2шт.

5

R45660

BRACKET

- R45817 idler assembly, if not available order R51583 bracket and R51567 tab (Ref. 7 & 8)

2шт.

6

R46823

PLATE

TAB - locking, used with R45660 bracket (Ref. 5) only, if used

1шт.

7

R51583

BRACKET

- R51582 idler assembly

2шт.

8

R51567

LARGE PLATE

TAB - locking, used with R51583 bracket (Ref. 7) only

1шт.

9

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

10

R46990

SHAFT

- R45817 idler assembly only, 12-13/16" (326 mm) overall length, used with Ref. 2 & 3 only

1шт.

11

R51162

SHAFT

- R51582 idler assembly only, 13-1/4" (336 mm) overall length, used with Ref. 4 only

1шт.

12

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- idler shaft

2шт.

13

R39273

SEAL

FACE SEAL ASSEMBLY - idler assembly, Includes: 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

KIT - face seal repair, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

17

R34742

SEAL

ADAPTER - seal

2шт.

18

R51424

CUP

TAPERED ROLLER BEARING - idler assembly

2шт.

19

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

20

R50083

DRIVE SPROCKET

HUB - idler

1шт.

21

132-351

COTTER PIN,1/4" x 2 1/4"

PIN, Split (Cotter), , R45817 idler assembly only, inner end of idler shaft 1/4" x 2 1/4"

1шт.

22

132-183

COTTER PIN,5/16" x 2 1/8"

PIN, Split (Cotter), , R51582 idler assembly only, inner end of idler shaft 5/16" x 2 1/8"

1шт.

23

R51581

SPACER

- bearings, if used

1шт.
