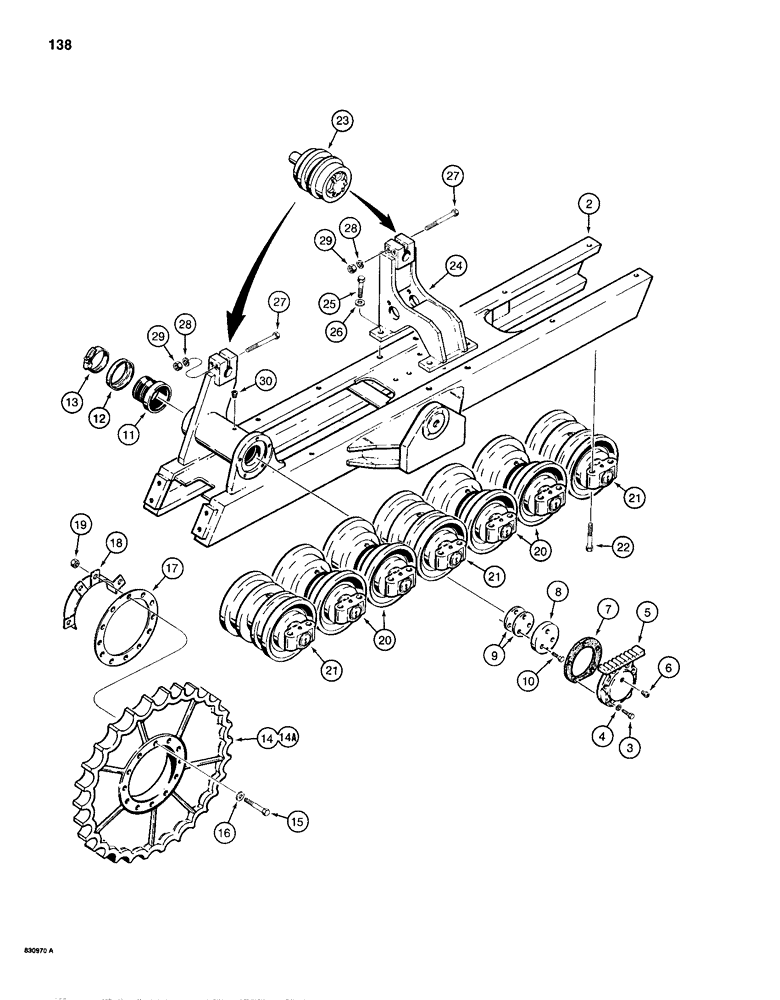

Запчасти Case 1155D (138) - TRACK FRAME, SPROCKET, AND ROLLERS, 74" GAUGE WIDE TRACK & LGP DOZER MODELS (11) - TRACKS/STEERING

1

R45420

CHASSIS

TRACK FRAME - left-hand, wide track dozer models, not shown (same as 62" gauge standard dozer models, Fig. 136)

1шт.

1

R45422

CHASSIS

TRACK FRAME - right-hand, wide track dozer models, not shown (same as 62" gauge standard dozer models, Fig. 136)

1шт.

2

R45405

CHASSIS

TRACK FRAME - left-hand, LGP dozer models, not shown

1шт.

2

R45406

CHASSIS

TRACK FRAME - right-hand, LGP dozer models

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

5

R46782

COVER

ASSEMBLY - pivot shaft, Includes: Ref. 6

2шт.

6

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

7

R27377

GASKET,0.38mm Thk

- pivot shaft cover

1шт.

8

R36949

PLATE

- end, pivot shaft

2шт.

9

R27540

SHIM,.031" Thk

Pivot shaft end plate .031" Thk

1шт.

10

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex head, 5/8" - 18 NF x 1-3/4", grade 8

6шт.

11

R41714

SEAL

- pivot shaft

2шт.

12

R41713

GUARD

- seal, pivot shaft

2шт.

13

214-180

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - worm screw type, pivot shaft

2шт.

14

R45917

DRIVE SPROCKET

SPROCKET - use with standard sealed track chain only (with 2-3/16" diameter bushings), Fig. 159

2шт.

14a

R47743

DRIVE SPROCKET

SPROCKET - identify by "I" on sprocket surface, may be used with either sealed track chain (Fig. 159 or 161) or Case Lubricated Track chain (Fig. 163)

2шт.

15

R31277

BOLT

- hex head, 3/4" - 10 NC x 4", grade 8

24шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

24шт.

17

R27241

SHIM,1/32" Thk

Sprocket 1/32" Thk

1шт.

18

R36703

GUARD

- final drive shaft, if used

4шт.

19

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

24шт.

20

REF

INSTRUCTION

TRACK ROLLER - single flange, for correct assembly and components Fig. 152 & 154

8шт.

21

REF

INSTRUCTION

TRACK ROLLER - double flange, for correct assembly and components see Fig. 152 & 154, wide track models use four, LGP models use six (LGP) positioning shown on Fig. 138)

4-6шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Use with Loctite Hex, 3/4"-10 x 3", G5

48-56шт.

23

REF

INSTRUCTION

CARRIER ROLLER - for correct assembly and components Fig. 150, wide track models use two, LGP models use four

2-4шт.

24

R45454

SUPPORT

BRACKET - carrier roller and equalizer beam mounting, parts used on LGP dozer models only

2шт.

25

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Parts used on LGP dozer models only Hex, 3/4"-10 x 2", G5

8шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4", parts used on LGP dozer models only

8шт.

27

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- hex head, 5/8" - 11 NC x 4-3/4", grade 8, parts used on LGP dozer models only

8шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Parts used on LGP dozer models only 5/8"

8шт.

29

129-107

NUT,5/8"-11, G5

Parts used on LGP dozer models only 5/8"-11, G5

8шт.

30

221-841

PLUG

- hex socket head, 1/4" NPT, parts used on LGP dozer models only

2шт.
