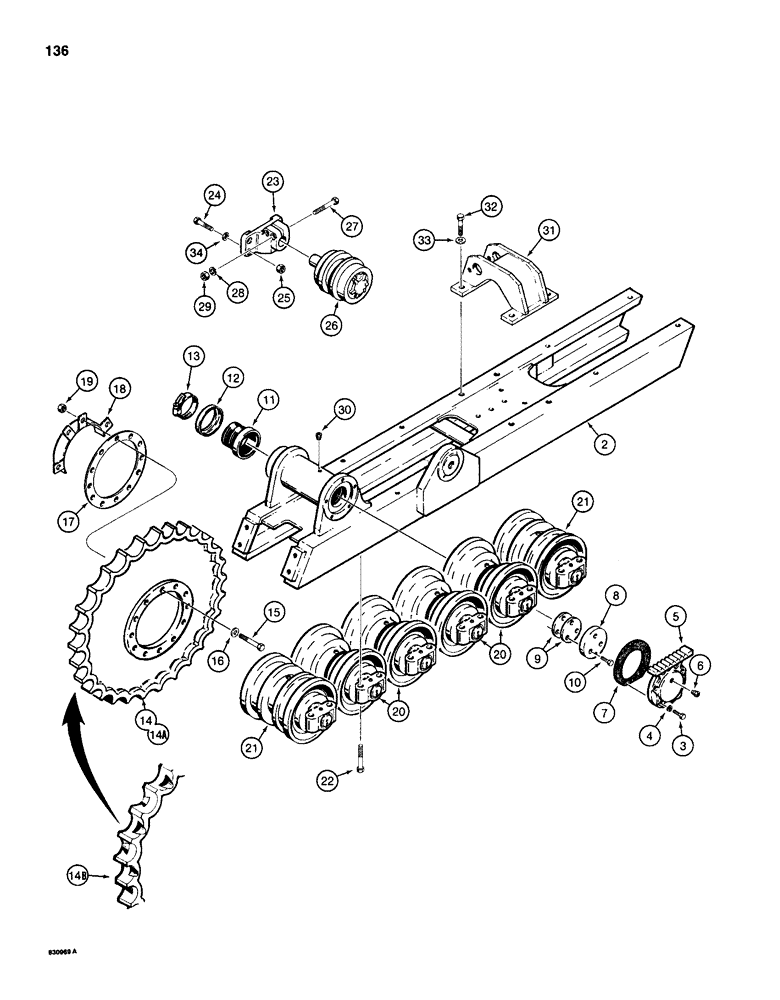

Запчасти Case 1155D (136) - TRACK FRAME, SPROCKET, AND ROLLERS, DRAWBAR MODELS AND 62" GUAGE STANDARD DOZER MODELS (11) - TRACKS/STEERING

1

R45420

CHASSIS

TRACK FRAME - left-hand, not shown

1шт.

2

R45422

CHASSIS

TRACK FRAME - right-hand

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

5

R46782

COVER

ASSEMBLY - pivot shaft, Includes: Ref. 6

2шт.

6

221-841

PLUG

- socket head, 1/4" NPT

1шт.

7

R27377

GASKET,0.38mm Thk

- pivot shaft cover

1шт.

8

R36949

PLATE

- end, pivot shaft

2шт.

9

R27540

SHIM,.031" Thk

Pivot shaft end plate .031" Thk

1шт.

10

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex head, 5/8" - 18 NF x 1-3/4", grade 8

6шт.

11

R41714

SEAL

- pivot shaft

2шт.

12

R41713

GUARD

- seal, pivot shaft

2шт.

13

214-180

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - pivot shaft

2шт.

14

R45916

DRIVE SPROCKET

SPROCKET - use with standard sealed chain only (with 2-3/16" diameter bushings), Fig. 158

2шт.

14a

R47742

DRIVE SPROCKET

SPROCKET - identify by "I" on sprocket surface, may be used with either sealed track chain (Fig. 158 or 160) or Case Lubricated Track chain (Fig. 162)

2шт.

14b

R46172

SPROCKET ASSY.

SPROCKET - relieved, service option

2шт.

15

R27242

BOLT

- hex head, 3/4" - 10 NC x 3", grade 8, special

24шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

24шт.

17

R27241

SHIM,1/32" Thk

Sprocket 1/32" Thk

1шт.

18

R36703

GUARD

- final drive shaft, if used

4шт.

19

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

24шт.

20

REF

INSTRUCTION

TRACK ROLLER - single flange, for correct assembly and components Fig. 152 & 154

8шт.

21

REF

INSTRUCTION

TRACK ROLLER - double flange, for correct assembly and components Fig. 152 & 154

8шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Use with Loctite Hex, 3/4"-10 x 3", G5

48шт.

23

R27143

BRACKET

- carrier roller

2шт.

24

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8, use with Loctite

8шт.

25

129-107

NUT,5/8"-11, G5

8шт.

26

REF

INSTRUCTION

CARRIER ROLLER - for correct assembly and components see Fig. 150

2шт.

27

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

4шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

29

129-107

NUT,5/8"-11, G5

4шт.

30

221-841

PLUG

- hex socket head, 1/4" NPT, pivot shaft housing

2шт.

31

R47476

BRACKET

- equalizer beam mounting

2шт.

32

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

33

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

8шт.

34

D35268

SHIM,1/32" Thk

Carrier roller bracket, Upper or lower bolt holes as required to align roller with track chain, if used 1/32" Thk

1шт.
