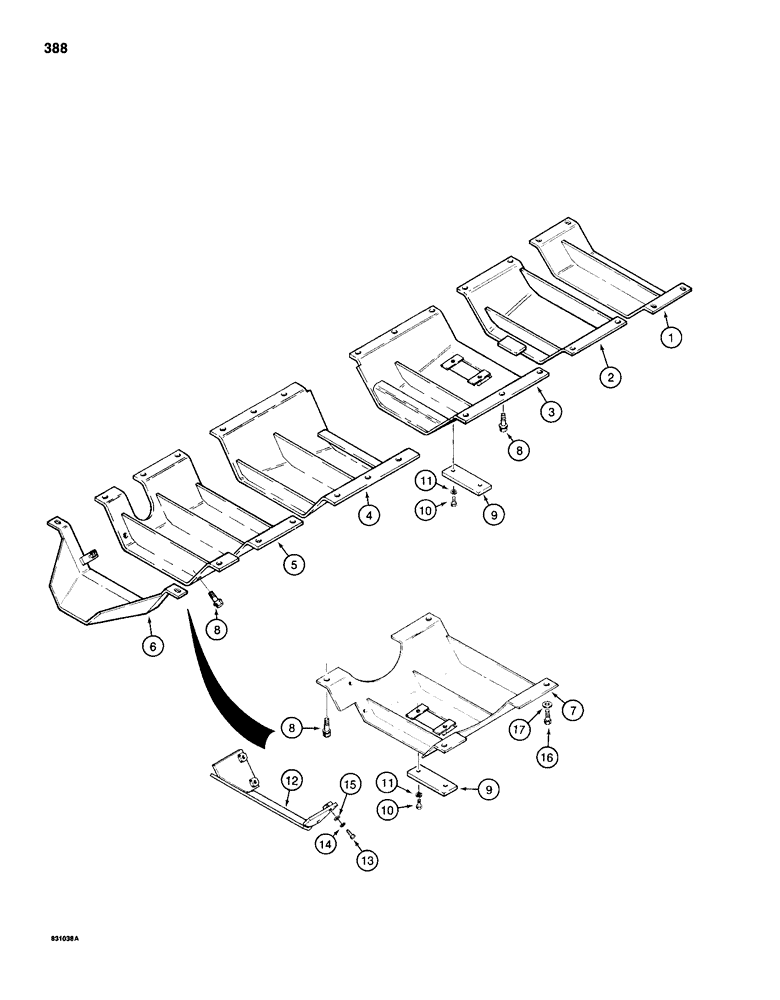

Запчасти Case 1155D (388) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R26803

GUARD ASSY.

GUARD - radiator

1шт.

2

R47161

GUARD

- engine front

1шт.

3

R47167

GUARD

- crankcase

1шт.

4

R36545

GUARD ASSY.

GUARD - torque converter

1шт.

5

R38229

GUARD

- at pivot shaft

1шт.

6

R26861

GUARD

- transmission, standard, if used, may be replaced with Ref. 7-11

1шт.

7

R26356

GUARD ASSY.

GUARD - transmission, heavy duty, if used

1шт.

8

121-506

FLANGE BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex flange head, 5/8" - 11 NC x 2", grade 8

28шт.

9

R48231

COVER

PLATE - drain cover

1-2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

12

R48004

GUARD ASSY.

GUARD - rear, transmission, used on models with Hyster winch and heavy dut transmission guard (Ref. 7)

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

16

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Front mounting holes of transmission guard (Ref. 7), replaces flange head bolt used in production on some models Hex, 5/8"-11 x 1 3/4", G5

2шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, use with Ref. 16 bolt

2шт.
