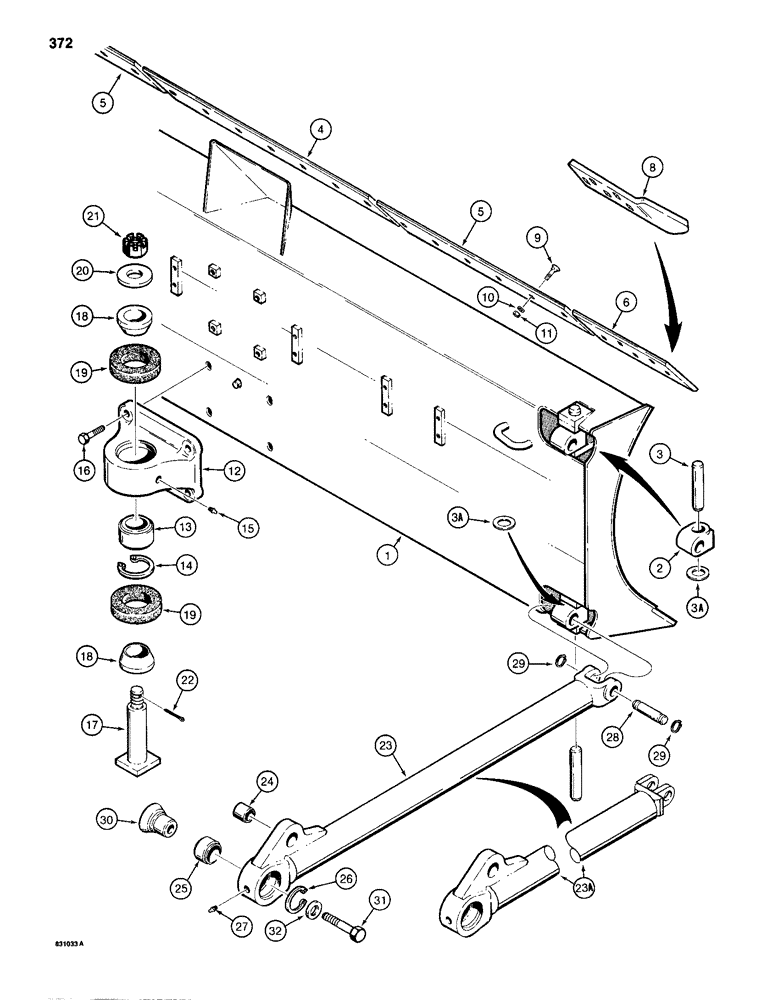

Запчасти Case 1155D (372) - ANGLE TILT PITCH DOZER MODELS, DOZER BLADE AND STRUTS (09) - CHASSIS/ATTACHMENTS

1

R52874

BULL BLADE

BLADE ASSEMBLY - 62" (1575 mm) gauge standard dozer models, if used, Includes: Ref. 2 - 3A

1шт.

1

R52875

BULL BLADE

BLADE ASSEMBLY - 74" (1880 mm) gauge wide track dozer models, if used, Includes: Ref. 2 - 3A

1шт.

2

70315

UNIVERSAL JOINT

BRACKET - tilt cylinder and strut mounting

4шт.

3

R45247

AXLE PIN

PIN - bracket

4шт.

3a

A163363

WASHER

- flat, shim

1шт.

4

R44885

EDGE

CUTTING EDGE - 33" (840 mm) long, three used on 62" (1575 mm) gauge standard dozer models, one used in center position on 74" (1880 mm) gauge wide track dozer models

1-3шт.

5

R45446

EDGE

CUTTING EDGE - 39" (989 mm) long, used in outer positions on 74" (1880 mm) gauge wide track dozer models only

1шт.

6

R42470

EDGE, CUTTING

CUTTING EDGE - end, standard, if used

2шт.

7

R41351

EDGE, CUTTING

CUTTING EDGE - left-hand, heavy duty, if used, not shown

1шт.

8

R41352

EDGE, CUTTING

CUTTING EDGE - right-hand, heavy duty, if used

1шт.

9

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

28-30шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28-30шт.

11

129-183

NUT,5/8"-11, G8

28-30шт.

R45972

PIVOT

BRACKET ASSEMBLY - pivot

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET - pivot

1шт.

13

R41800

SPHERICAL BEARING,69.85mm ID x 111.13mm OD x 61.11mm W

- self-aligning

1шт.

14

R32220

SNAP RING,4.331", Int, #433

RING, Snap, , bushing 4.331", Int, #433

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

4шт.

17

R45099

PIN

- pivot

1шт.

18

R45224

SPACER

- pin mounting

2шт.

19

R45226

GASKET

- pin mounting

2шт.

20

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- flat

1шт.

21

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2" - 6 NC

1шт.

22

132-352

COTTER PIN,1/4" x 2 1/2"

PIN, Split (Cotter), 1/4" x 2 1/2"

1шт.

R45072

STRUT

ASSEMBLY - 62" (1575 mm) gauge standard dozer models

2шт.

R45232

STRUT

ASSEMBLY - 74" (1880 mm) gauge wide track dozer models, with straight clevis at blade mounting, no longer used, replace with R51281 right-hand strut or R51283 left-hand strut with offset mounting lugs at blade, right-hand

1шт.

R51283

FRONT IDLER

STRUT ASSEMBLY - 74" (1880 mm) gauge wide track dozer models, with offset mounting lugs at blade, left-hand, not shown

1шт.

23

NSS

NOT SOLD SEPARAT

STRUT - C-frame to blade, with straight clevis at blade mounting, if used

1шт.

23a

NSS

NOT SOLD SEPARAT

STRUT - C-frame to blade, with offset mounting lugs at blade, right-hand shown, if used

1шт.

24

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tilt cylinder mounting

1шт.

25

D23601

HOUSING

BUSHING - lower, self-aligning

1шт.

26

100-21315

SNAP RING,3.156", Int, #315

RING, Snap, , bushing, CLAMP - P-type, hose to radiator shroud 3.156", Int, #315

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

28

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - strut to dozer blade

2шт.

29

D26918

SNAP RING,#125, Ext

RING, Snap, , pin #125, Ext

4шт.

30

R46802

PIN

- strut to angle cylinder slide bracket

2шт.

31

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

- hex head, 1" - 8 NC x 4-1/2", grade 8

2шт.

32

D51030

WASHER

- flat, 1", hardened

2шт.
