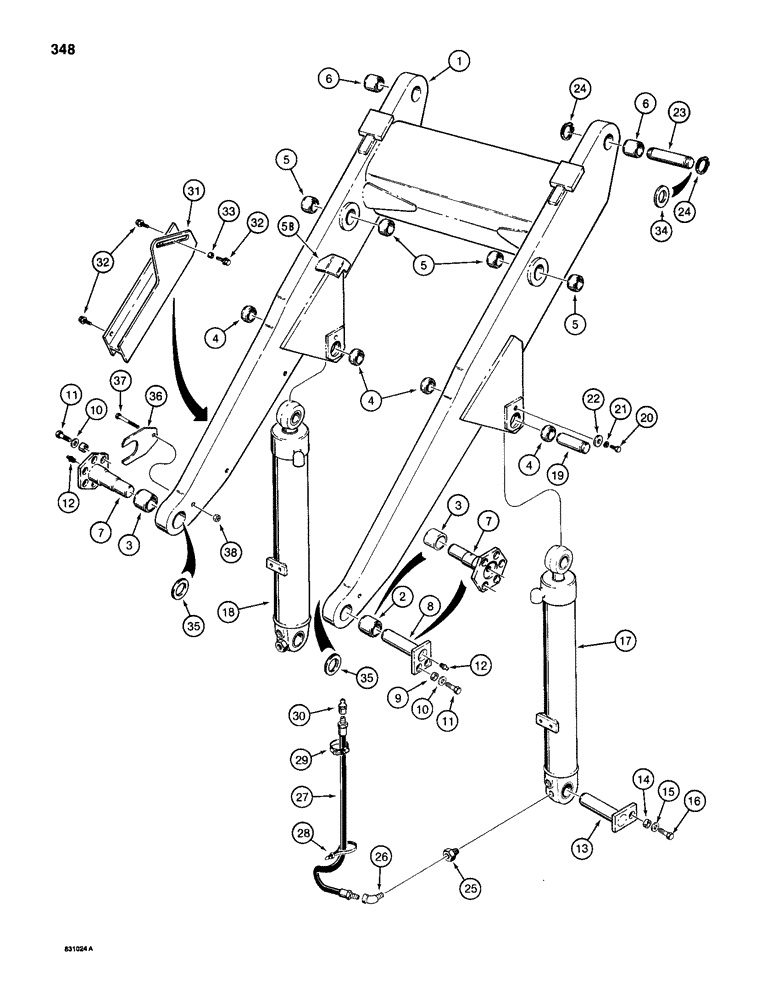

Запчасти Case 1155D (348) - LOADER LIFT FRAME, MOUNTING PARTS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R45429

ARM

FRAME - loader lift, includes instruction sheet, uses pin Ref. 7 on both sides, replaces frame that used pin Ref. 8 on the right-hand side Includes: Ref. 2 - 6

1шт.

For the tapped blocks welded to the loader lift frame on models with clam bucket hydraulics see figure 266.

1шт.

2

D40302

BUSHING

- pivot, lift frame at main frame, right-hand, 2-3/4" (70 mm) O.D. x 2-1/4" (57 mm) ID, use only with pin Ref. 8, if used

1шт.

3

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

- pivot, lift frame at main frame, 3" (76 mm) O.D. x 2-1/2" (63 mm) ID, used with Ref. 7 pin

1шт.

4

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- lift cylinder pivot

4шт.

5

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot, bucket tilt lever

4шт.

5a

R41185

SUPPORT

BRACKET - rub, right-hand, not shown, opposite of Ref. 5B

1шт.

5b

R41186

SUPPORT

BRACKET - rub, left-hand

1шт.

6

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- pivot, bucket tilt links

2шт.

7

R45895

PIN

- lift frame to main frame, with five holes

1-2шт.

8

R45437

PIN

- right-hand, lift frame to main frame, with two holes, no longer used, replace with R45895 pin (Ref. 7) and R27011 bushing (Ref. 3)

1шт.

9

T25138

BUSHING

SPACER - pin

4шт.

10

D31328

WASHER

- special

4шт.

11

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite Hex, 3/4"-10 x 2", G8

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

13

R30127

PIN

- lift cylinder to main frame

2шт.

14

T25138

BUSHING

SPACER - pin

2шт.

15

D31328

WASHER

- special

2шт.

16

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite Hex, 3/4"-10 x 2", G8

2шт.

17

G34836

CYLINDER

- loader lift, right-hand, parts list Fig. 294

1шт.

18

G34837

CYLINDER

- loader lift, left-hand, parts list Fig. 294

1шт.

19

R27086

PIN

- lift cylinder to loader lift frame

2шт.

20

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Use with Loctite Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

21

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

23

R27061

PIN

- loader lift, Serial Range: frame-bucket

2шт.

24

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

25

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8"

2шт.

26

221-1401

ELBOW,45º, 1/8"-27, NPT

STREET ELBOW - 45 degree, 1/8" NPT

2шт.

27

R40124

HOSE

- 25" (635 mm) long, lube

2шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

2шт.

30

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

GREASE FITTING - straight, 1/8" NPT, female

2шт.

31

R46257

SUPPORT

STRUT - support

1шт.

32

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

3шт.

33

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - strut mounting

1шт.

34

D37449

SHIM,.0747" Thk

Bucket at lift frame (2-1/32" ID) .0747" Thk

1шт.

R36091

SHIM

KIT - shim, lift frame to main frame, kit no longer available, individual shims may be ordered from the following list, or may be replaced with shims and hardware Ref. 36-38

1шт.

35

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

SHIM - 9/64" thick x 2-1/16" ID

1шт.

35

D37449

SHIM,.0747" Thk

(2-1/32" ID) .0747" Thk

1шт.

35

L45897

SHIM

- 1/16" thick x 2-9/16" ID

1шт.

35

L41507

SHIM

- 11/64" thick x 2-1/2" ID

1шт.

35

L47706

WASHER

SHIM - 7/64" thick x 2-1/4" ID

1шт.

36

R51763

SHIM,1.981mm Thk

Loader lift frame mounting 1.981mm Thk

1шт.

37

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

38

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
