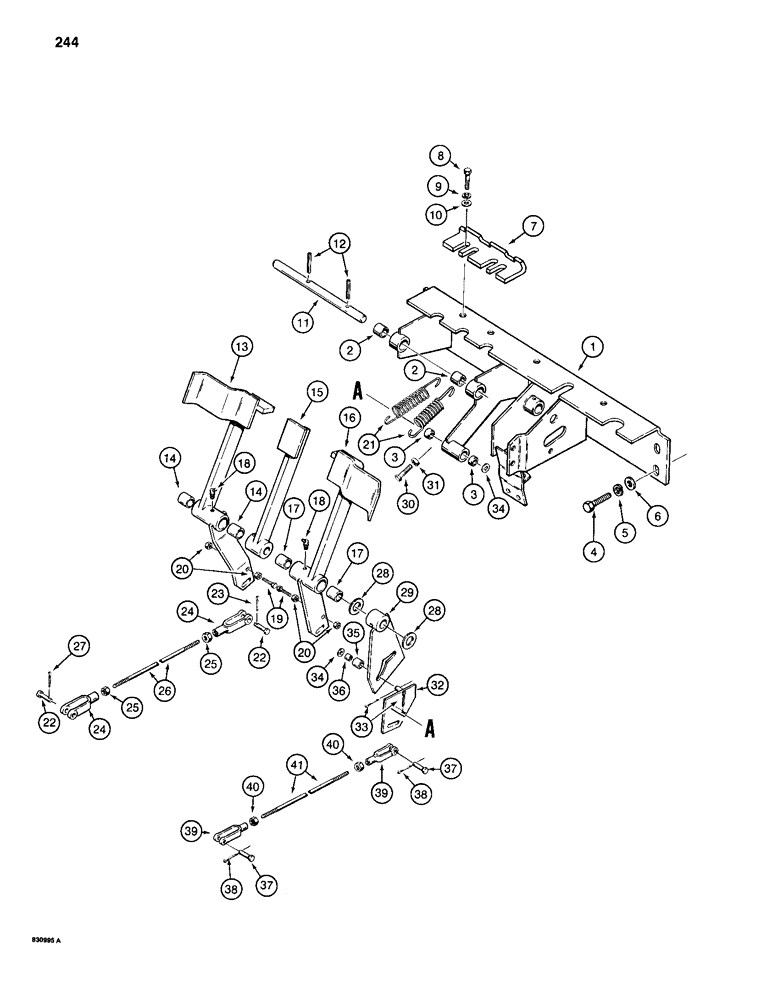

Запчасти Case 1155D (244) - POWER BRAKES - PEDALS AND RODS, LOADER MODELS ONLY (07) - BRAKES

1

R43554

FRAME

- brake mounting

1шт.

2

R29752

BUSHING

- frame, pedal shaft

2шт.

3

R27466

BUSHING

- frame, follower cam shaft

2шт.

4

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

6

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

5шт.

7

R37371

SUPPORT

BRACKET - brake pedal stop

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

11

R27495

SHAFT

- brake pedals

1шт.

12

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

2шт.

13

R49048

PEDAL

- brake, left-hand, Includes: Ref. 14

1шт.

14

R29752

BUSHING

- pedal

2шт.

15

R49059

PEDAL

- modulator

1шт.

16

R49047

PEDAL

- brake, right-hand, Includes: Ref. 17

1шт.

17

R29752

BUSHING

- pedal

2шт.

18

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 30 degree, special short, 1/8" NPT

2шт.

19

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

4шт.

21

A35789

SPRING

- pedal return

2шт.

22

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

23

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , at pedals 3/32" x 3/4"

2шт.

24

H44198

YOKE

CLEVIS - rod end, 5/16" - 24 NF, plated, replaces fiberglass clevis used in production on some models

4шт.

25

129-122

NUT,5/16"-24, G5

4шт.

26

R46619

TRUSS ROD

ROD - brake control

2шт.

27

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , at control valve 3/32" x 1/2"

2шт.

28

D35268

SHIM,1/32" Thk

(0.76 mm) 1/32" Thk

1шт.

29

R27491

CAM

- modulator

1шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

31

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

32

R33694

BRACKET

- cam follower

1шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

34

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

35

R27497

COLLAR

BOSS - cam, Includes: Ref. 36

1шт.

36

R27466

BUSHING

- boss

1шт.

37

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated

2шт.

38

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

39

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - modulator rod end, 1/4" - 28 NF, replaces fiberglass clevis used in production on some models

2шт.

40

129-121

NUT,1/4"-28, G5

2шт.

41

R46618

TRUSS ROD

ROD - modulator control

1шт.
