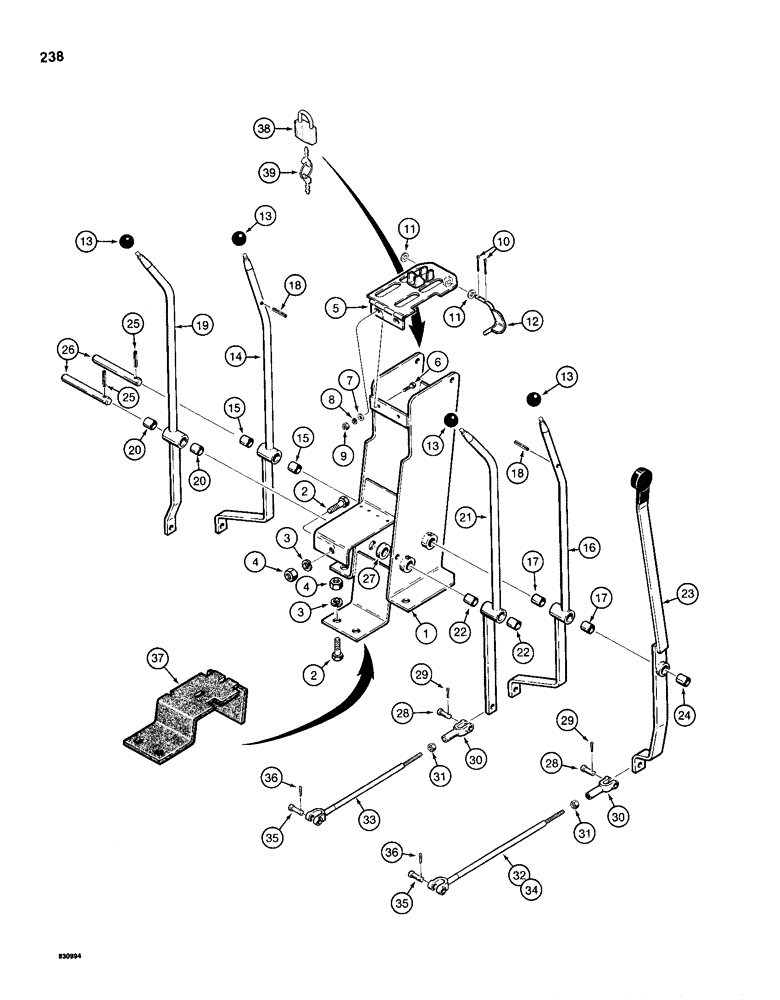

Запчасти Case 1155D (238) - TRANSMISSION CONTROL TOWER AND LEVERS (06) - POWER TRAIN

1

R45828

FRAME

CONTROL TOWER - transmission controls

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

R28887

LARGE PLATE

PLATE- lock

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

7

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

11

195-517

WASHER,1/4"

- flat, 1/16", plated

2шт.

12

R36318

LOCK

LATCH - lock

1шт.

13

70213

KNOB

- control lever

4шт.

14

R45833

LEVER

CONTROL LEVER - track speed, left-hand, Includes: Ref. 15

1шт.

15

R31144

BUSHING

- control lever

2шт.

16

R45834

LEVER

CONTROL LEVER - track speed, right-hand, Includes: Ref. 17

1шт.

17

R31144

BUSHING

- control lever

2шт.

18

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

19

R49976

LEVER

CONTROL LEVER - forward and reverse, left-hand, Includes: Ref. 20

1шт.

20

R31144

BUSHING

- control lever

2шт.

21

R49977

LEVER

CONTROL LEVER - forward and reverse, right-hand, Includes: Ref. 22

1шт.

22

R31144

BUSHING

- control lever

2шт.

23

R26827

LEVER

CONTROL LEVER - dual range, high-low, Includes: Ref. 24

1шт.

24

R31144

BUSHING

- control lever

1шт.

25

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

26

R26815

SHAFT

- lever

2шт.

27

R26854

SPACER

- rear shaft

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

5шт.

29

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , at control levers 3/32" x 3/4"

5шт.

30

H44198

YOKE

CLEVIS - rod end, 5/16" - 24 NF, metal, replaces fiberglass clevis used in production on some models

5шт.

31

129-122

NUT,5/16"-24, G5

5шт.

32

R26817

ROD

- track speed

2шт.

33

R26818

ROD

- forward and reverse

2шт.

34

R26817

ROD

- high-low range

1шт.

35

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

5шт.

36

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , at control valve 3/32" x 1/2"

5шт.

37

R39306

SEAL

- cab models, if used

1шт.

38

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 39

1шт.

39

R29555

KEY

- for Master padlock only

2шт.

39

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
