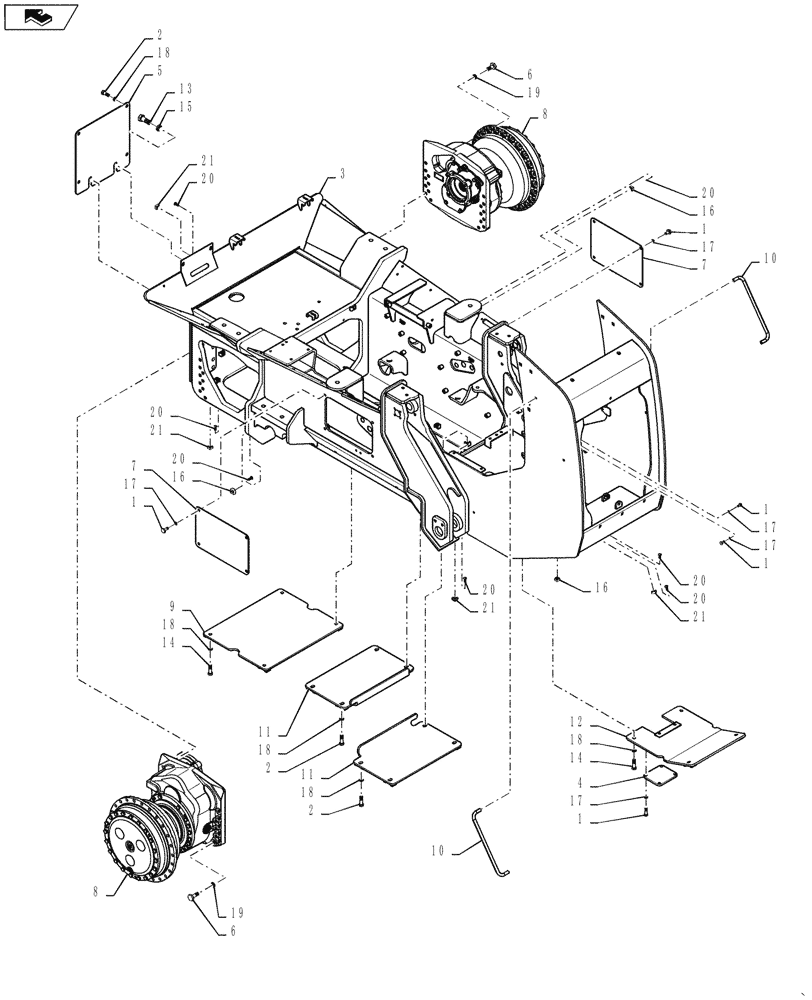

Запчасти Case 1150M WT/LGP (39.100.AB[02]) - FRAME (39) - FRAMES AND BALLASTING

1

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

2

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

16шт.

3

47570143

FRAME

Main

1шт.

4

84375837

PLATE

Oil Drain Cover

1шт.

5

84381503

PLATE

Plate, Center Box

1шт.

6

84388492

PREV TORQUE BOLT,Hex, M20 x 80mm, Cl 10.9

M20 x 80, 10.9

36шт.

7

84418665

COVER

Powertrain, Fender

2шт.

8

47466855

FINAL DRIVE

Narrow Gauge, LT

2шт.

8

47466855R

REMAN-FINAL DRIVE

Narrow Gauge, LT

2шт.

8

47466855C

CORE-FINAL DRIVE

Return Number

2шт.

8

47466856

FINAL DRIVE

Wide Guage, WT/LGP

2шт.

9

84530201

COVER PLATE

Belly Pan, Rear

1шт.

10

84544970

HANDLE

Powertrain, Narrow Frame

2шт.

11

84546062

PLATE

Belly Pan, Rear

2шт.

12

84546066

PLATE

Belly Pan, Front

1шт.

13

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

2шт.

14

86837482

BOLT,Hex, M16 x 55, 10.9, Full Thd

4шт.

15

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

16

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

M12 x 1.75, Square

12шт.

17

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12 x 13.65 x 24.9 x 3.2 Hts Boron

16шт.

18

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 x 17.75 x 31.5 x 4.2 Hts Boron

20шт.

19

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20 x 21.25 x 38.1 x 4.2 Hts Boron

36шт.

20

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

32шт.

21

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

Square

20шт.
