Запчасти Case 1150M WT/LGP (35.742.AB[01]) - RIPPER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

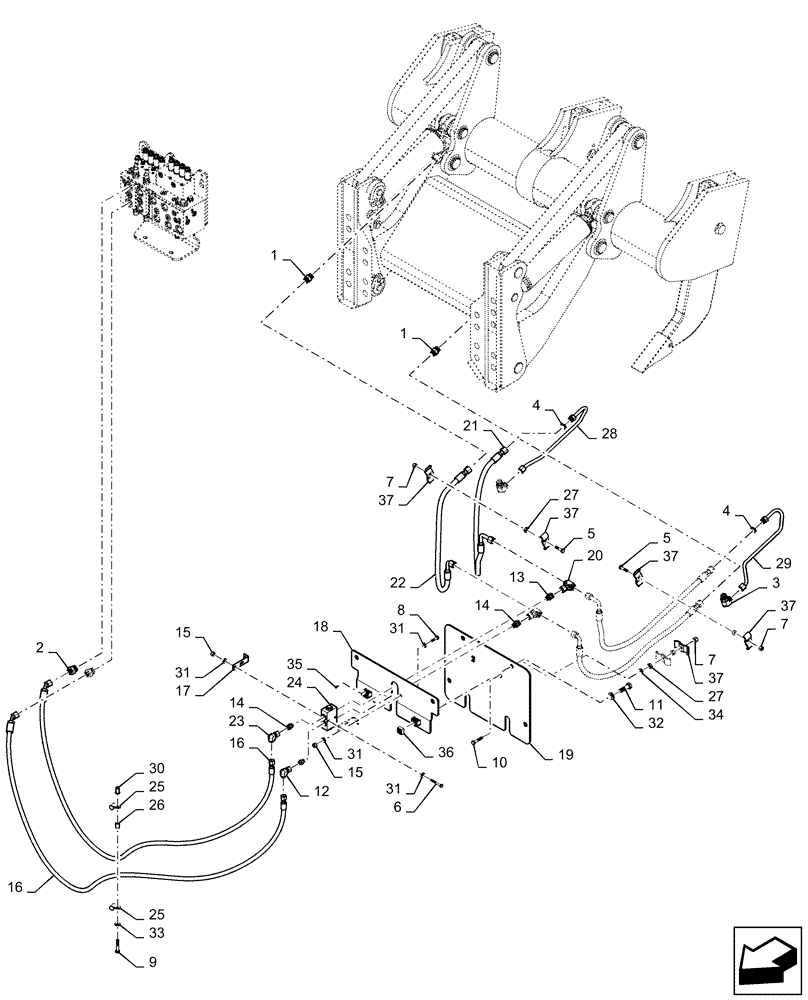

Схема запчастей Case 1150M WT/LGP - (35.742.AB[01]) - RIPPER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
18
20
19
31
27
14
21
30
5
11
10
9
2
4
7
35
16
6
15
37
8
22
37
31
7
1
5
14
24
29
31
3
17
33
37
7
34
32
26
27
1
13
37
4
36
25
15
12
28
25
31
16
37
23

Артикул

Название

Примечание

Количество

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

2

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

2шт.

3

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

6

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

10

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

11

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

12

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

13

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

14

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

15

16104121

NUT,M8 x 1.25, Cl 10

4шт.

16

47587805

HOSE,9.53mm ID x 2300mm L, SAE 100R17

2шт.

17

47588828

BRACKET

2шт.

18

47588965

PLATE

1шт.

19

47588982

PLATE

1шт.

20

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

2шт.

21

84466221

HOSE,12.7mm ID x 760mm L, SAE 100R13

2шт.

22

84466222

HOSE,12.7mm ID x 770mm L, SAE 100R16

2шт.

23

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

24

85802820

CHECK VALVE

1шт.

25

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

26

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

27

87311572

SPACER,12.7mm x 19mm x 9mm

6шт.

28

87352784

TUBE,12.70 mm OD

1шт.

29

87352785

TUBE,12.70 mm OD

1шт.

30

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

32

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

33

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

34

87698854

NUT,M10

2шт.

35

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

36

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

2шт.

37

434130A1

HOSE CLAMP

8шт.

Выбрано товаров: 37
