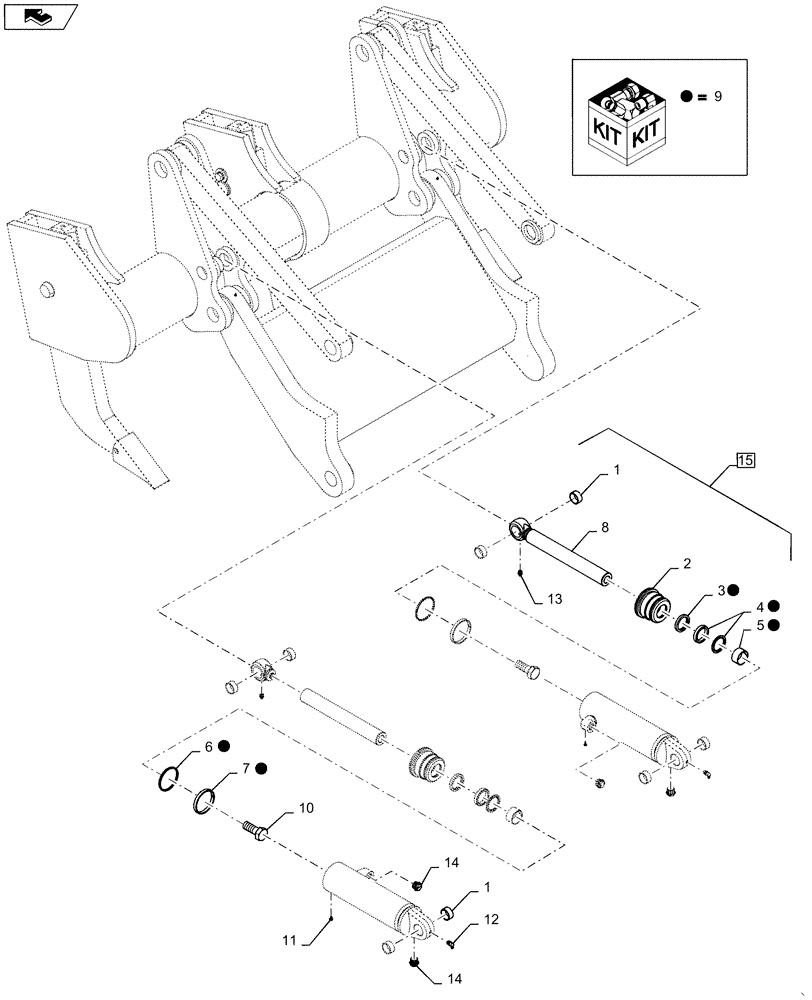

Запчасти Case 1150M WT/LGP (35.742.AA[02]) - RIPPER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

1.25 x .12 x .69

8шт.

2

84208516

GLAND

82.6 Bore, 44.4 Rod

2шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1.75

2шт.

4

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer

2шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod

2шт.

6

84323047

SEAL

Static Head, 82.6

2шт.

7

S109445

RING,82.55mm OD, Ext

Wear;

2шт.

8

G100617

ROD

2шт.

9

84567645

SEAL KIT

Incl 3 - 7

1шт.

10

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

2шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

4шт.

15

87651121

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

LH Incl 1 - 8, 10 - 14

1шт.

15

87651121R

REMAN-HYD CYLINDER

LH

1шт.

15

87651121C

CORE-HYD CYLINDER

Return Number

1шт.

15

87651091

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

RH Incl 1 - 8, 10 - 14

1шт.

15

87651091R

REMAN-HYD CYLINDER

RH

1шт.

15

87651091C

CORE-HYD CYLINDER

Return Number

1шт.
