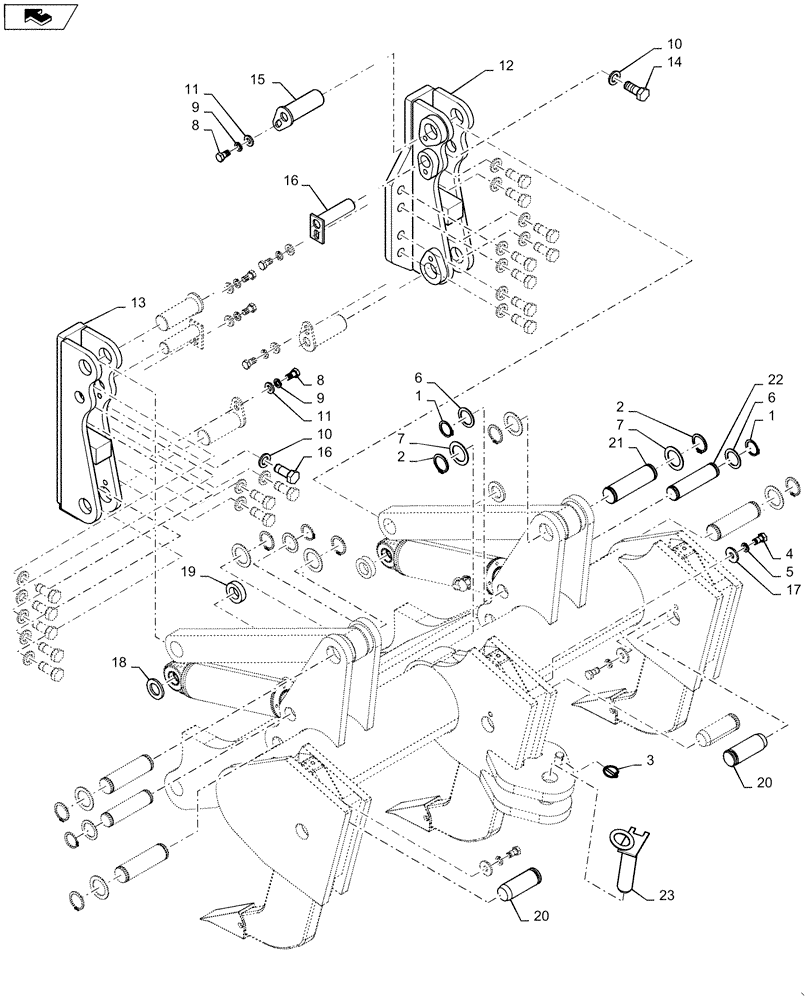

Запчасти Case 1150M WT/LGP (35.742.AA[01]) - RIPPER (35) - HYDRAULIC SYSTEMS

1

103-16175

SNAP RING,#175, Ext

4шт.

2

103-16200

SNAP RING,#200, Ext

8шт.

3

A30338

PIN

1шт.

4

409-91020

BOLT

3шт.

5

492-11062

BEARING WASHER,5/8"

3шт.

6

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

7

495-81282

WASHER,2 1/16" x 3" x .109"

8шт.

8

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

6шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

6шт.

10

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

18шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

6шт.

12

84388253

SUPPORT

LH

1шт.

13

84388248

SUPPORT

RH

1шт.

14

87354794

BOLT,Hex, M24 x 60mm, Cl 10.9

18шт.

15

87355606

PIN,50.8mm OD x 144.78mm L

4шт.

16

87355608

PIN,38.1mm OD x 144.78mm L

2шт.

17

419223A1

WASHER

1шт.

18

87383796

WASHER

2шт.

19

87383797

WASHER

2шт.

20

87383798

PIN,50.8mm OD x 139.7mm L

3шт.

21

87383799

PIN,50.8mm OD x 179.8mm L

4шт.

22

87383800

PIN,44.45mm OD x 179.8mm L

2шт.

23

87339515

PIN

1шт.
