Запчасти Case 1150M WT/LGP (35.741.AD[01]) - TILT CYLINDER (35) - HYDRAULIC SYSTEMS

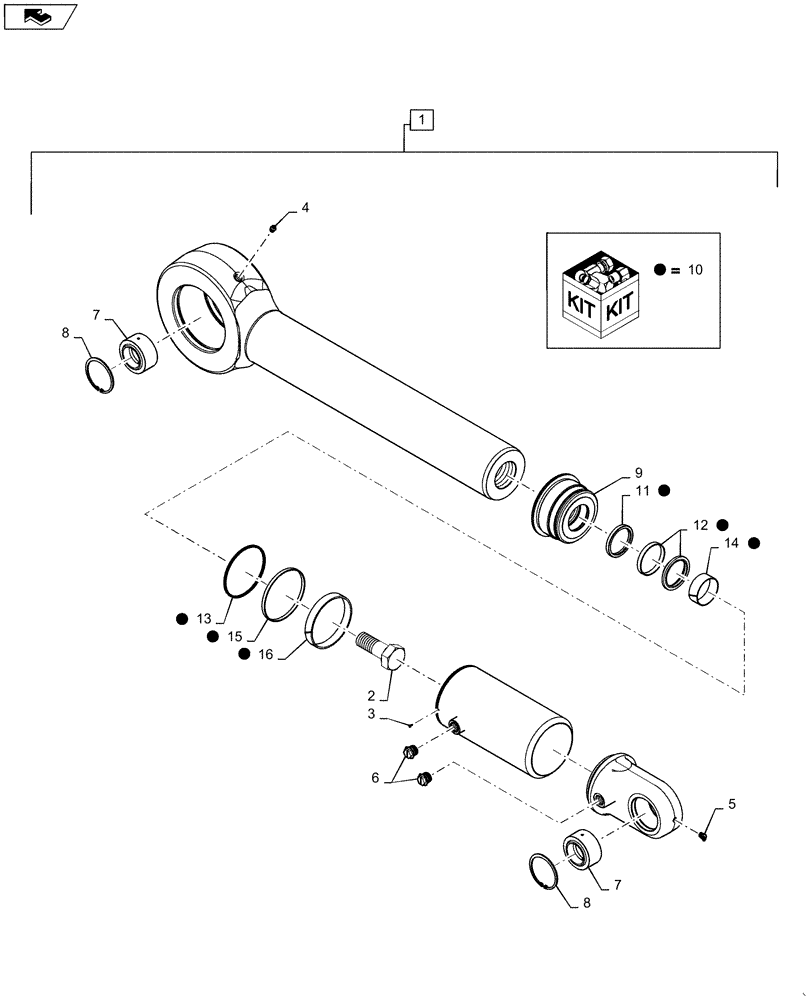

Схема запчастей Case 1150M WT/LGP - (35.741.AD[01]) - TILT CYLINDER (35) - HYDRAULIC SYSTEMS
1
10
14
10
8
12
16
13
3
5
10
10
home
9
7
7
10
11
6
10
10
4
8
15
10
2

Артикул

Название

Примечание

Количество

1

84390531

HYDRAULIC CYLINDER

Tilt; Incl 2 - 9, 11 - 16

1шт.

1

47446374R

REMAN-HYD CYLINDER

Reman for New PN 84390531

1шт.

1

47446374C

CORE-HYD CYLINDER

Return Number

1шт.

2

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

3

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Shipping

2шт.

7

D23601

HOUSING

Spherical Bearing 2.00" ID

2шт.

8

100-21315

SNAP RING,3.156", Int, #315

4шт.

9

84205602

GLAND

1шт.

10

84479824

SEAL KIT

127.0 x 63.5; Incl 11 - 16

1шт.

11

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

12

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

13

87615485

SEAL,118.72mm ID x 125.88mm OD x 4.85mm Thk

Static Head

1шт.

14

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

Rod Bearing

1шт.

15

87715789

SEAL,127mm OD

Piston; 4-Piece; 127.0 Bore

1шт.

16

G102090

RING,127mm OD, Ext

Wear

1шт.

Выбрано товаров: 18
