Запчасти Case 1150M WT/LGP (35.741.AC[01]) - ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

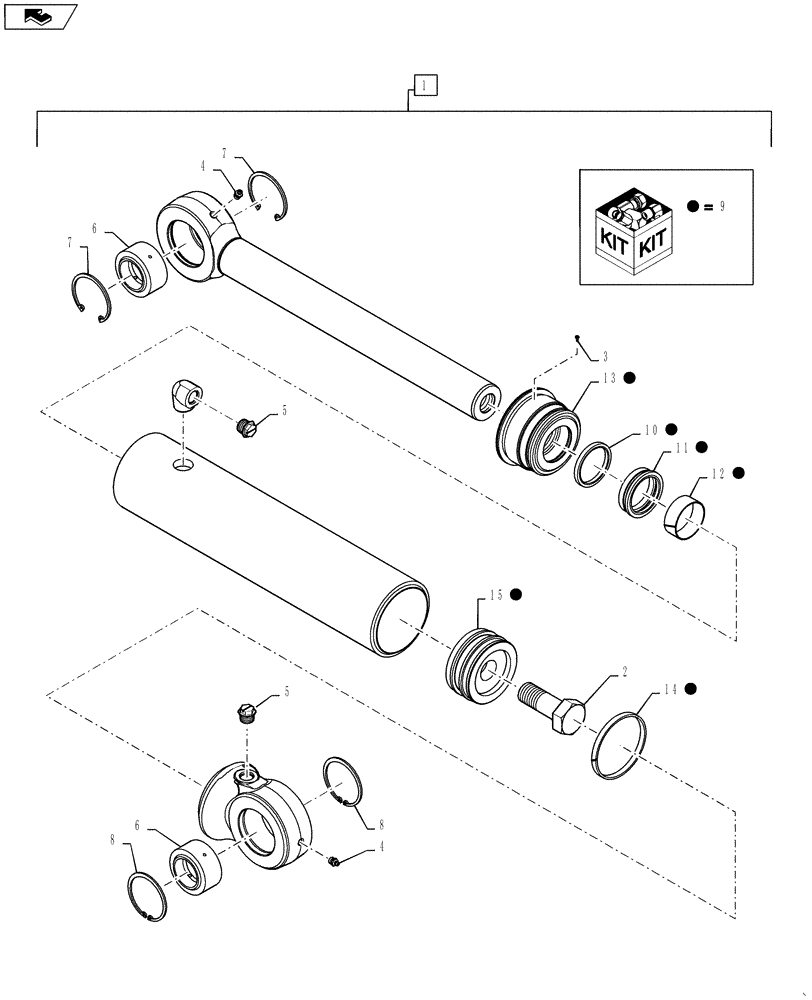

Схема запчастей Case 1150M WT/LGP - (35.741.AC[01]) - ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS
7
9
2
9
6
9
12
6
7
home
5
8
9
15
9
4
9
1
9
4
5
13
11
9
8
3
10
14

Артикул

Название

Примечание

Количество

1

84402337

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 465.7mm Stroke

Angle; Incl 2 - 8, 10 - 15

2шт.

1

84402337R

REMAN-HYD CYLINDER

Angle

2шт.

1

84402337C

CORE-HYD CYLINDER

Return Number

2шт.

2

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

3

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Shipping

2шт.

6

D23601

HOUSING

Spherical Bearing 2.00" ID

2шт.

7

49477

RING, SNAP

2шт.

8

100-21315

SNAP RING,3.156", Int, #315

2шт.

9

84479825

SEAL KIT

114.3 x 63.5; Incl 10 - 15

1шт.

10

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

11

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

12

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

Rod Bearing

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Static Head, 114.3 Bore; Incl 9

1шт.

14

G103284

GASKET

Wear Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Piston Assembly, 4-Piece, 114.3 Bore; Incl 9

1шт.

Выбрано товаров: 17
