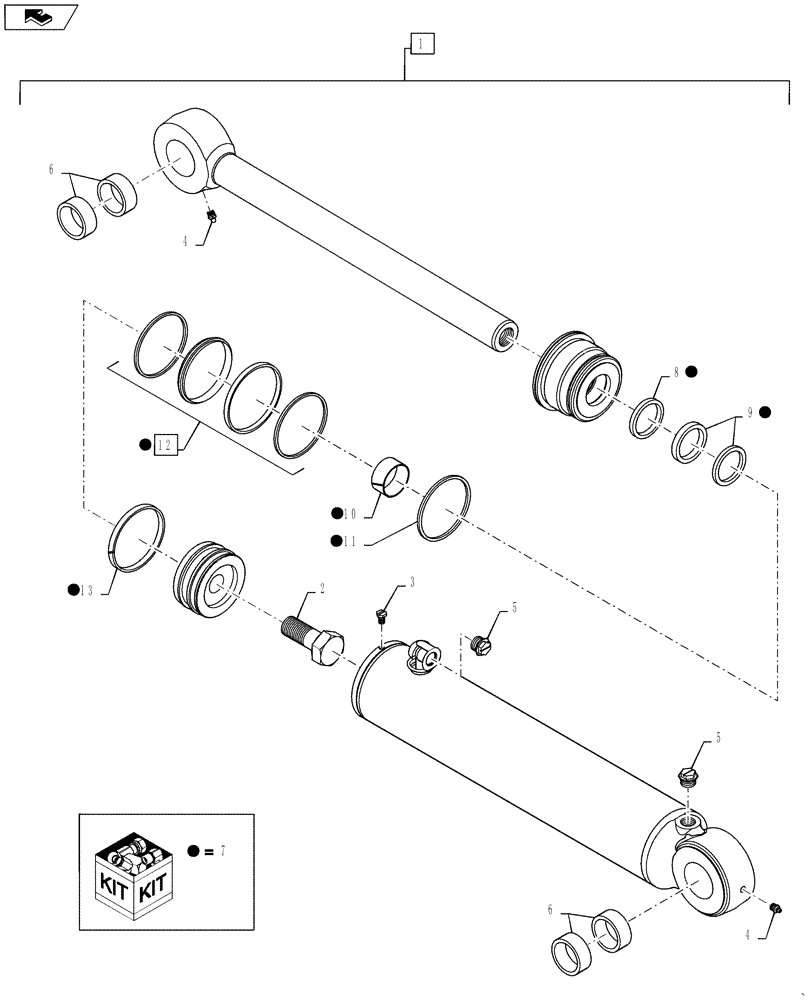

Запчасти Case 1150M WT/LGP (35.741.AA[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84389147

LIFT CYLINDER,Double Acting, 50.8mm Rod, 488mm Stroke

Incl 2 - 6, 8 - 13

2шт.

1

84389147R

REMAN-HYD CYLINDER

1150M LT, 1150M WT/LGP, Both (12/12-), D125C LT, D125C WT/LGP, All CRAWLER DOZER - TIER 4A

2шт.

1

84389147C

CORE-HYD CYLINDER

Return Number

2шт.

2

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1шт.

3

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Shipping

2шт.

6

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

4шт.

7

84479796

SEAL KIT

108.0 x 50.8; Incl 8 - 13

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

9

1542876C1

SEAL KIT,50.8mm Rod

Rod and Buffer Seal

1шт.

10

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

11

87615483

SEAL,100.05mm ID x 108.33mm OD x 4.85mm Thk

Static Head

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL ASSY; Piston; 4-Piece; 108.0 Bore; Incl 7

1шт.

13

G110530

RING,108mm OD, Ext

Wear

1шт.
