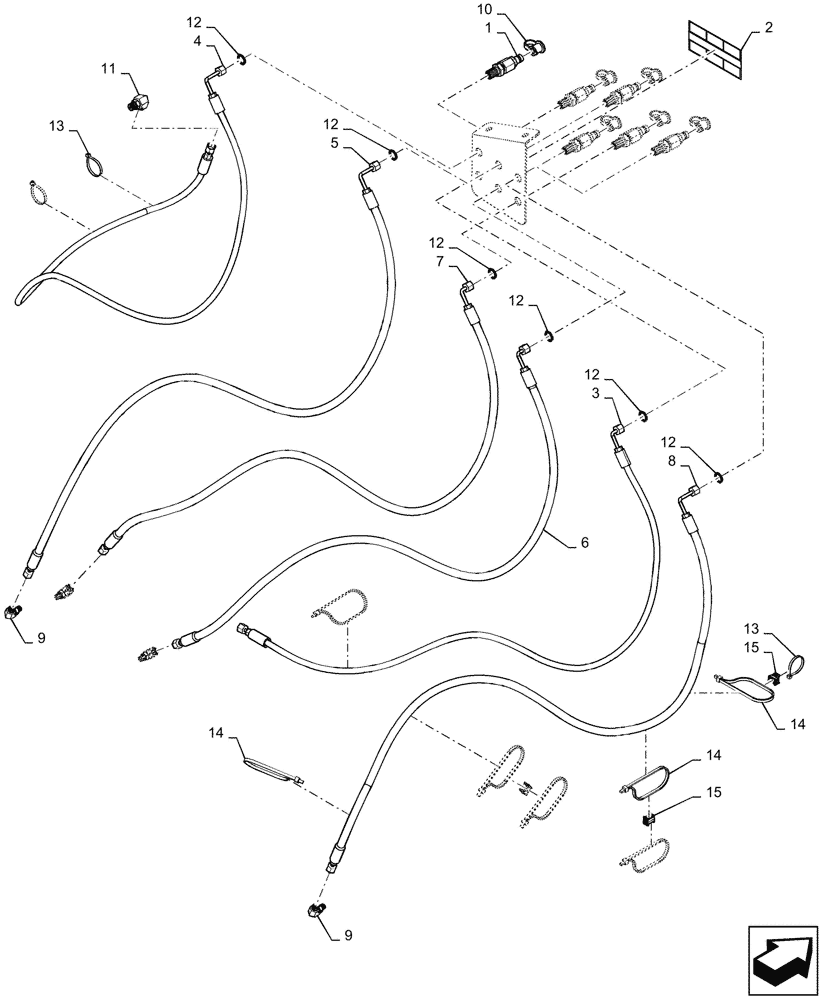

Запчасти Case 1150M WT/LGP (35.525.AA[01]) - DIAGNOSTIC , HOSE (35) - HYDRAULIC SYSTEMS

1

47376296

NIPPLE

Diagnostic Bulkhead

6шт.

2

84124148

DECAL

Diagnostic Hose Chart

1шт.

3

47547429

HOSE

Charge Pressure

1шт.

4

47544590

HOSE,6.35mm ID x 1746mm L, SAE 100R17

Diagnostic

1шт.

5

47594876

HOSE

Right Reverse

1шт.

6

47594710

HOSE

Left Reverse

1шт.

7

47594913

HOSE

Left Forward

1шт.

8

47594983

HOSE

Right Forward

1шт.

9

47743794

ELBOW

4шт.

10

H434163

DUST CAP

6шт.

11

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

14

L18331

CABLE TIE,375.9mm L, Nylon

7шт.

15

86982400

SPACER

3шт.
