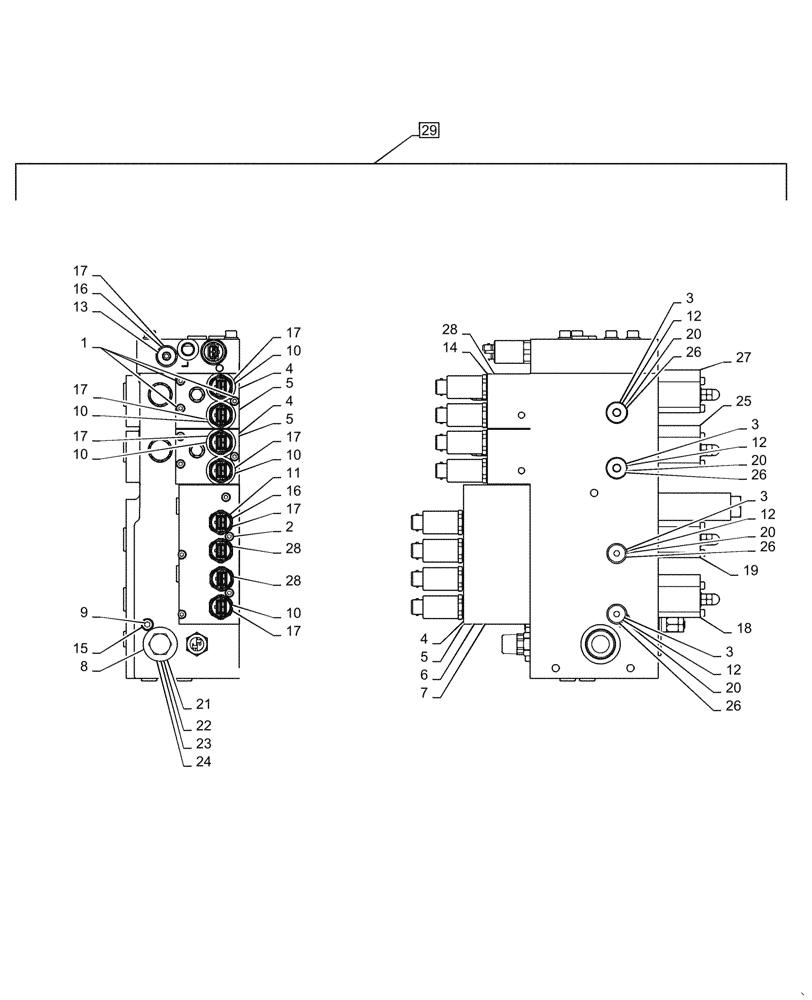

Запчасти Case 1150M WT/LGP (35.359.AE[02]) - 4-SPOOL VALVE, CONTROLLER (35) - HYDRAULIC SYSTEMS

1

864-5050

HEX SOC SCREW,M5 x 50mm, Cl 8.8

6шт.

2

87518268

SCREW,M5 x 80mm, Gr 8.8

5шт.

3

8604567

VALVE, CHECK

M6

4шт.

4

8604582

RETAINER

Spring

4шт.

5

87516617

SPRING

Pressure

4шт.

6

87311985

SPRING

Mono Block

1шт.

7

87516620

RETAINER

Spring

1шт.

8

87516622

PLUG

M33 x 1.5

1шт.

9

87516616

REGULATOR

Flow

1шт.

10

87516634

VALVE PRESSURE RELIE

7шт.

11

87516635

CARTRIDGE

Pressure Reducing Valve

1шт.

12

8602923

SCREW,Lock, M18 x 1.5

4шт.

13

87516636

HYDRAULIC VALVE

Safety

1шт.

14

87516637

HYD VALVE SECTION

1шт.

15

87516644

SEAL KIT

Flow Regulator

1шт.

16

87516645

FILTER

1шт.

17

87516646

SEAL KIT

Safety Valve

9шт.

18

87567785

SPOOL

Tilt

1шт.

19

87567786

SPOOL

Lift

1шт.

20

87567794

CONE

4шт.

21

87613176

SPOOL

Unloading Valve

1шт.

22

87567791

SLEEVE

Unloading Valve

1шт.

23

87613175

ORIFICE

1шт.

24

87567793

SPRING

1шт.

25

87567787

SPOOL

1шт.

26

87567795

SPRING

4шт.

27

87567798

SPOOL

1шт.

28

8604566

SEAL KIT

Ripper Section

1шт.

29

87604364

CONTROL VALVE

Assembly, 4 Spool, Incl 1 - 28

1шт.
