Запчасти Case 1150M WT/LGP (35.359.AE[01]) - 4-SPOOL VALVE, ASSY (35) - HYDRAULIC SYSTEMS

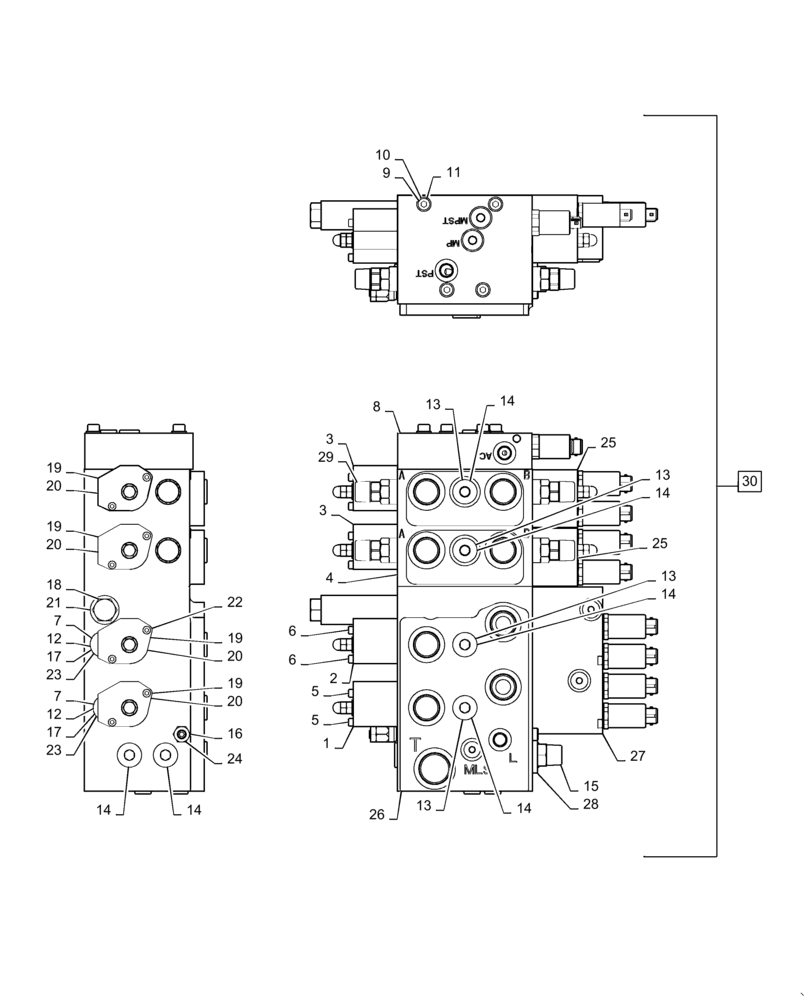

Схема запчастей Case 1150M WT/LGP - (35.359.AE[01]) - 4-SPOOL VALVE, ASSY (35) - HYDRAULIC SYSTEMS
19
24
30
3
20
19
13
13
8
21
6
19
16
27
2
13
1
13
4
26
5
3
28
20
14
14
20
14
22
23
10
14
6
12
29
14
17
18
5
25
25
9
20
23
19
7
11
17
14
15
7
12

Артикул

Название

Примечание

Количество

1

87516585

COVER

Pilot, Tilt

1шт.

2

87516587

COVER

Pilot, Lift

1шт.

3

87516586

COVER

Pilot, Angle

1шт.

4

8604566

SEAL KIT

M6 VALVE

1шт.

5

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

2шт.

6

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

7

87567795

SPRING

Pressure

2шт.

8

87516595

END PLATE

Cover

1шт.

9

87516597

SCREW

4шт.

10

892-11008

LOCK WASHER,8mm ID

4шт.

11

87516610

NUT

4шт.

12

8604567

VALVE, CHECK

M6

2шт.

13

87516611

SPOOL

Sectional Compensator

4шт.

14

87516612

PLUG

Scew, M22 X 15

4шт.

15

87574408

VALVE, PRESSURE RELI

Main

1шт.

16

87567788

VALVE PRESSURE RELIE

LS

1шт.

17

87567794

CONE

Check Valve

2шт.

18

87567789

VALVE

Pre-Charge

1шт.

19

87516617

SPRING

Pressure

4шт.

20

87311984

RETAINER

Spring

4шт.

21

87567796

SEAL KIT

Pre-Charge

1шт.

22

87311986

RING

M6, Check Valve

1шт.

23

8602923

SCREW,Lock, M18 x 1.5

2шт.

24

87516641

SEAL KIT

LS Relief Valve

1шт.

25

87516633

COVER

Pilot, Angle

2шт.

26

87516638

SEAL KIT

Mono Block

1шт.

27

87516632

COVER

Pilot, Mono Block

1шт.

28

87567797

SEAL KIT

Main Relief

1шт.

29

87516614

VALVE, PRESSURE RELI

Plug Screw

4шт.

30

87604364

CONTROL VALVE

4 Spool Assembly, Incl 2 - 29

1шт.

Выбрано товаров: 30
