Запчасти Case 1150M WT/LGP (35.357.AA[01]) - CONTROL VALVE HYDRAULIC HOSES AND ACCUMULATOR (35) - HYDRAULIC SYSTEMS

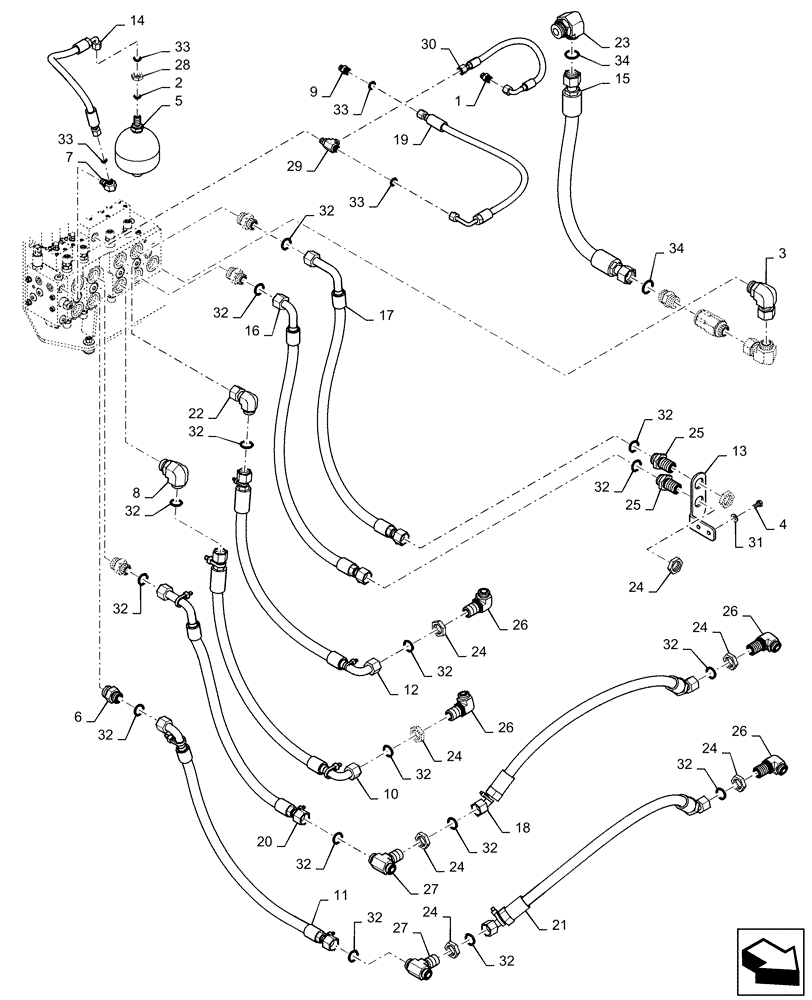

Схема запчастей Case 1150M WT/LGP - (35.357.AA[01]) - CONTROL VALVE HYDRAULIC HOSES AND ACCUMULATOR (35) - HYDRAULIC SYSTEMS
26
26
33
4
15
33
13
32
29
12
1
32
24
16
32
23
32
32
3
10
6
33
30
11
33
32
32
27
9
22
17
32
21
24
32
31
25
32
5
27
34
18
24
24
32
28
24
20
32
32
24
34
14
32
8
2
7
26
26
32
19
24
25
32

Артикул

Название

Примечание

Количество

1

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

8501047

ACCUMULATOR

1шт.

6

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

5шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

8

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

10

47370014

HYDRAULIC HOSE,19.05mm ID x 900mm L, SAE 100R16

Lift A

1шт.

11

47370015

HYDRAULIC HOSE,19.05mm ID x 950mm L, SAE 100R16

Angle A

1шт.

12

47370017

HYDRAULIC HOSE,19.05mm ID x 770mm L, SAE 100R16

Lift B

1шт.

13

47370882

BRACKET

1шт.

14

47418742

HOSE,9.53mm ID x 578mm L, SAE 100R16

Accumulator

1шт.

15

84557718

HYDRAULIC HOSE,25.4mm ID x 765mm L, SAE 100R16

Valve to Filter

1шт.

16

84359098

HOSE ASSY.,19.05mm ID x 959mm L, SAE 100R16

Tilt A

1шт.

17

84359101

HOSE ASSY.,19.05mm ID x 974mm L, SAE 100R16

Tilt B

1шт.

18

84359136

HOSE ASSY.,19.05mm ID x 897mm L, SAE 100R16

Angle B

1шт.

19

84385320

HOSE ASSY.,9.53mm ID x 881mm L, SAE 100R16

Valve to Tank

1шт.

20

84470543

HOSE ASSY.,19.05mm ID x 840mm L, SAE 100R16

Angle B

1шт.

21

84490159

HYDRAULIC HOSE,19.05mm ID x 905mm L, SAE 100R16

Angle A

1шт.

22

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

1шт.

23

86511661

90 ELBOW,Adj, 1 7/16"-12 ORFS x 1 5/8"-12" ORB

1шт.

24

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

8шт.

25

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

26

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

4шт.

27

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

2шт.

28

87010704

BHD LOCK NUT,11/16"-16

1шт.

29

87305436

HYD CONNECTOR

1шт.

30

87533710

HOSE ASSY.

Accumulator Drain

1шт.

31

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

16шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

34

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 34
