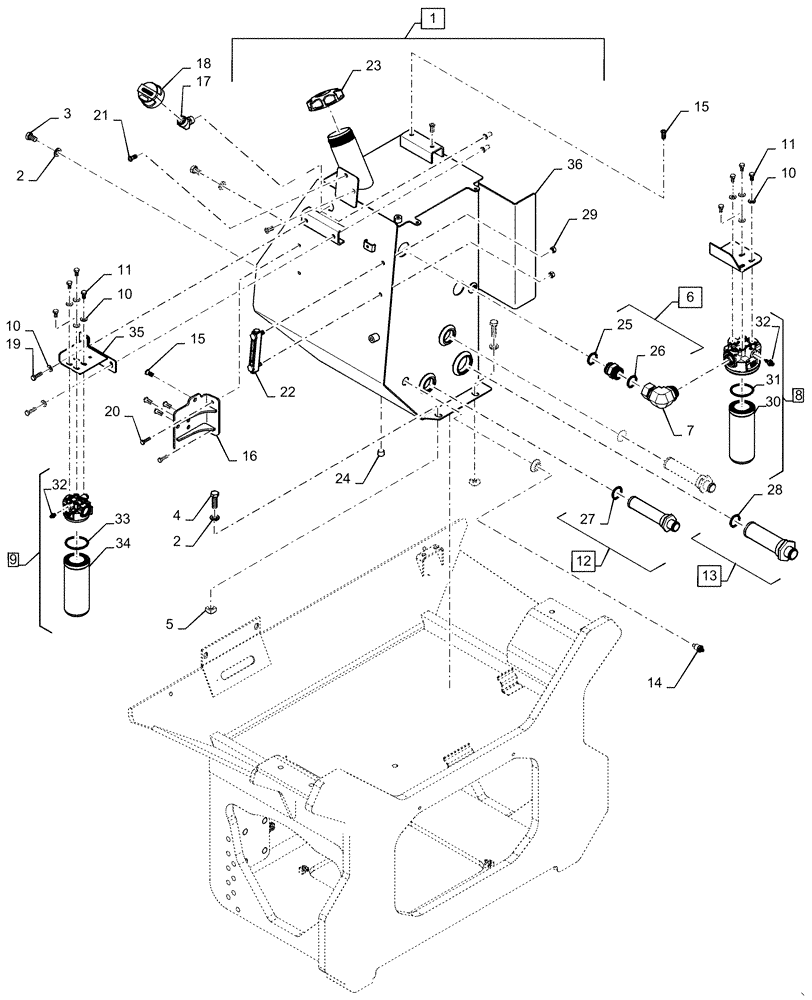

Запчасти Case 1150M WT/LGP (35.300.AQ[01]) - TANK - HYDRAULIC OIL RESERVOIR - BSN - NGC105085 (35) - HYDRAULIC SYSTEMS

1

47377673

RESERVOIR, HYDRAULIC

Incl 22, 23, 36

1шт.

2

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

2шт.

4

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

5

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16 x 2, Square

2шт.

6

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Incl 25, 26

1шт.

7

84329840

90 ELBOW

1шт.

8

47617483

FILTER

Assembly, Implement Incl 30 - 32

1шт.

9

47617479

FILTER

Assembly, Charge Pump Incl 32 - 34

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

12шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

12

84341116

FILTER STRAINER

1.25" Incl 27

2шт.

13

84329266

FILTER STRAINER,1.5"

1.50" Incl 28

1шт.

14

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

15

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10 x 1.5

8шт.

16

47379944

BRACKET

Fuel Filter

1шт.

17

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

18

84339375

BREATHER

1шт.

19

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

85825181

INSERT

Thd

2шт.

22

226456A1

LEVEL GAUGE

Liquid; Incl 1

1шт.

23

84298013

CAP,128.8mm D

Hydraulic

1шт.

24

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Incl 1

1шт.

25

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Incl 6

1шт.

26

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Incl 6

1шт.

27

84375830

O-RING,3mm Thk x 43.69mm ID, 70 Duro

Oil Seal, 44 ID

2шт.

28

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

Oil Seal, 59 ID

1шт.

29

829-1412

NUT,M12, Cl 10.9

Incl 1

2шт.

30

84196445

HYDRAULIC OIL FILTER

Spin On, 11.63"

1шт.

31

84362145

RING

Friction

1шт.

32

8604802

PRESSURE SWITCH

2шт.

33

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

34

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

35

47547435

BRACKET

Mount, Fuel Filter

1шт.

36

47515048

RESERVOIR, HYDRAULIC

Incl in Ref 1

1шт.
