Запчасти Case 1150M WT/LGP (35.104.AA[02]) - WINCH PROVISION PUMP W/ PTO (35) - HYDRAULIC SYSTEMS

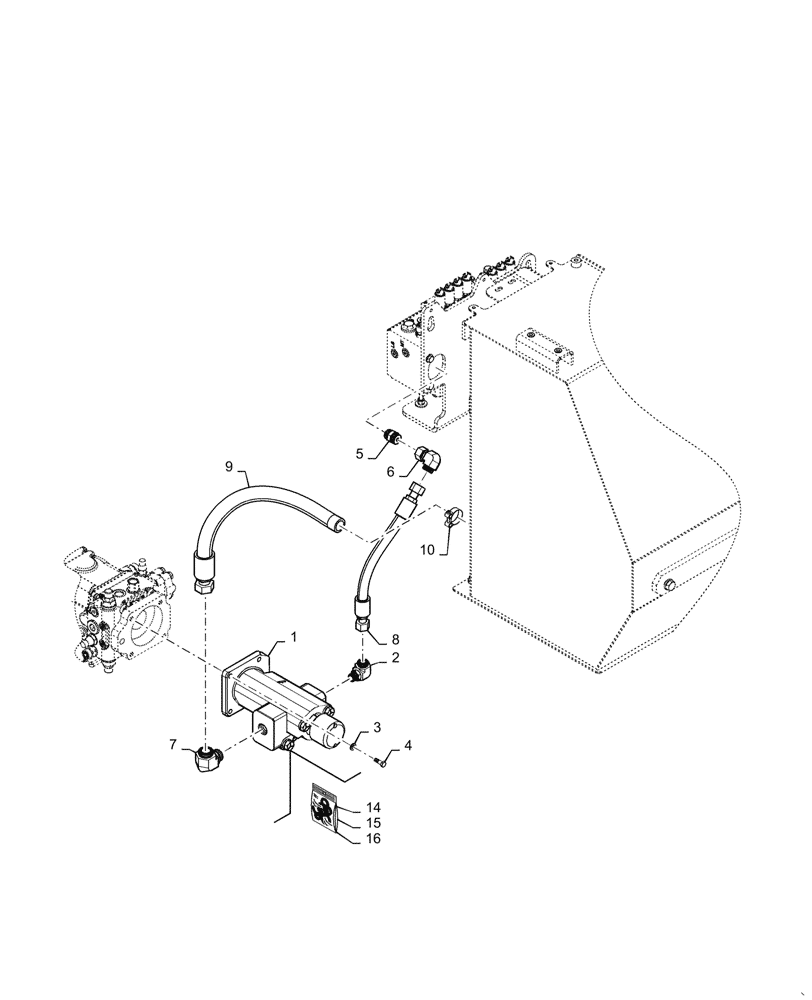

Схема запчастей Case 1150M WT/LGP - (35.104.AA[02]) - WINCH PROVISION PUMP W/ PTO (35) - HYDRAULIC SYSTEMS
5
3
4
15
14
6
7
16
2
1
8
10
9

Артикул

Название

Примечание

Количество

1

87331905

HYDROSTATIC PUMP,65.6 CC

1шт.

1

87331905R

REMAN-HYDROSTAT PUMP

1шт.

1

87331905C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

5

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

6

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1шт.

7

84256799

90 ELBOW

1шт.

8

84387418

HOSE ASSY.,25.4mm ID x 558mm L, SAE 100R17

1шт.

9

84387419

HOSE ASSY.,38.1mm ID x 777mm L, SAE 100R4

1шт.

10

84180945

COLLAR CLAMP,1.87" - 2.18"

1шт.

11

47593292

SEAL KIT

Hydrostatic Pump

1шт.

12

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Fit Hose Callout 8

2шт.

13

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Fits Hose Callout 9

1шт.

14

47593292

SEAL KIT

Incl Lip Seal

1шт.

15

48009538

SEAL KIT

Seal Kit, Incl Shaft Retaining Ring

1шт.

16

48009642

SEAL KIT

All Seals

1шт.

Выбрано товаров: 18
