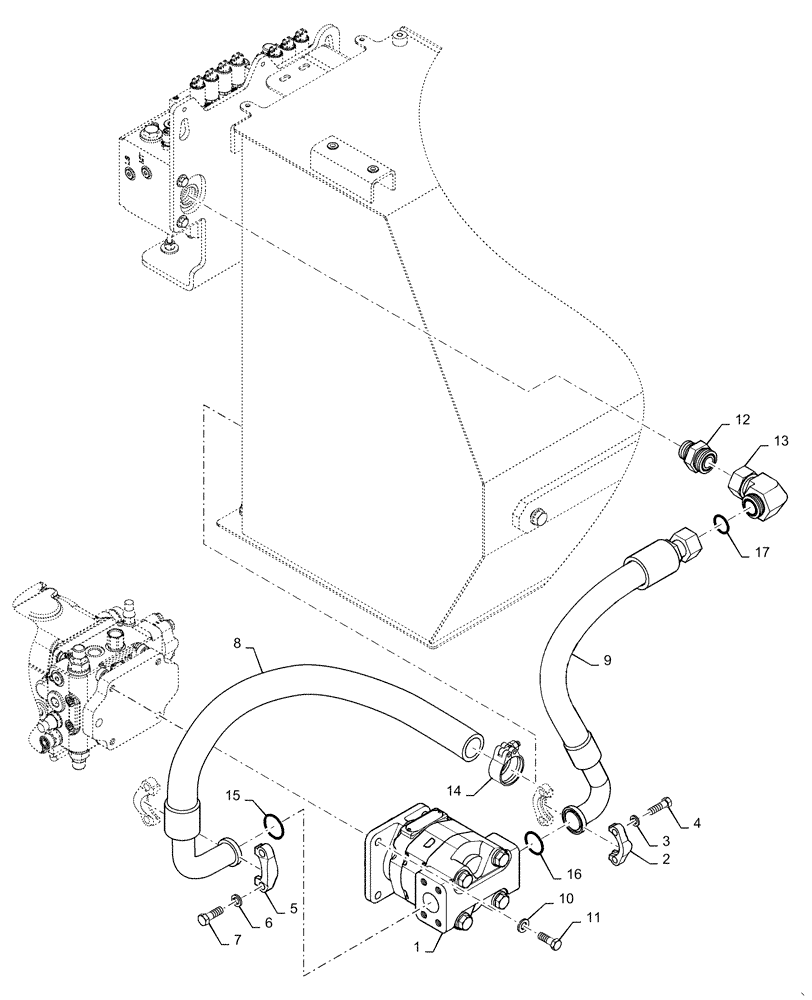

Запчасти Case 1150M WT/LGP (35.104.AA[01]) - WINCH PROVISION PUMP W/O PTO (35) - HYDRAULIC SYSTEMS

1

84323337

HYDRAULIC PUMP,64.56 CC

Winch, Non- PTO

1шт.

84323337R

REMAN-HYD PUMP

1150M

1шт.

84323337C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

70921117

FLANGE

2шт.

3

81547

LOCK WASHER,7/16"

4шт.

4

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

4шт.

5

A14157

FLANGE

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

8

84491001

HOSE ASSY.,38mm ID x 854mm L, SAE 100R4

1шт.

9

47574089

HOSE

1шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

12

201-134

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB

1шт.

13

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

1шт.

14

84180945

COLLAR CLAMP,1.87" - 2.18"

1шт.

15

87632735

O-RING,1.859" ID x 2.137" OD x 0.139"

1шт.

16

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

17

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
