Запчасти Case 1150M WT/LGP (10.400.BF[02]) - RADIATOR & COOLER, HOSE ASSY. (10) - ENGINE

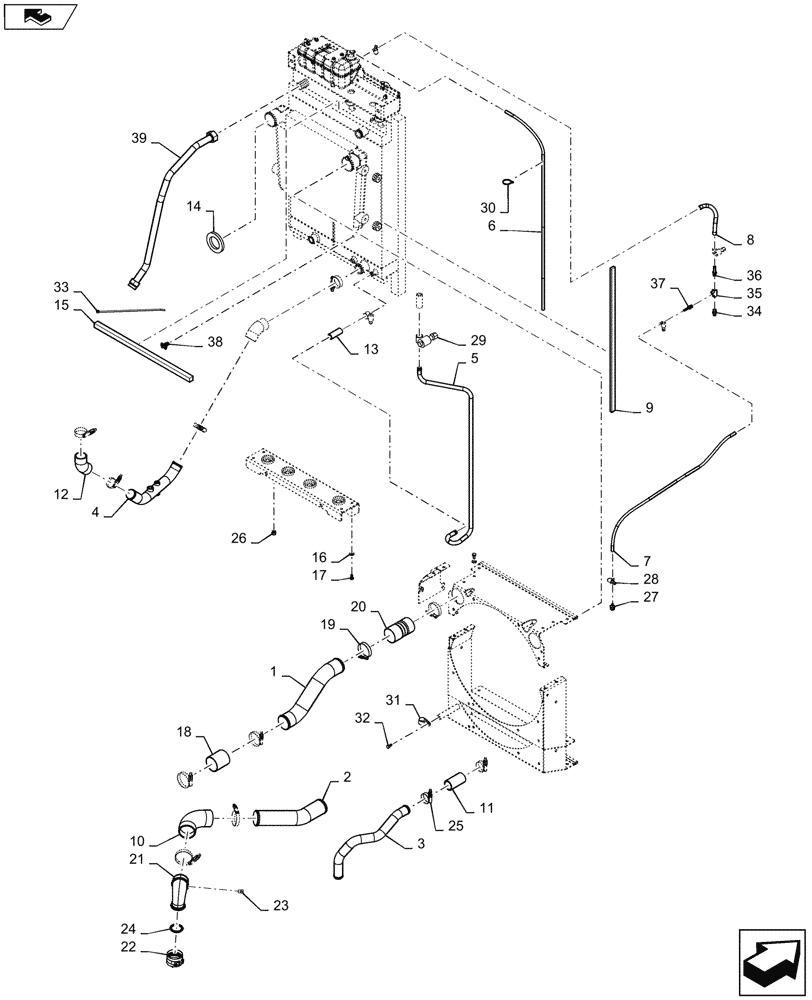

Схема запчастей Case 1150M WT/LGP - (10.400.BF[02]) - RADIATOR & COOLER, HOSE ASSY. (10) - ENGINE
15
24
25
23
11
5
38
36
30
35
14
4
37
home
18
7
3
12
1
28
34
31
29
17
32
19
6
20
21
2
10
39
22
26
8
16
33
9
13
27

Артикул

Название

Примечание

Количество

1

84481460

RIGID TUBE

1шт.

2

84570428

AIR INTAKE TUBE

1шт.

3

47531188

TUBE

1шт.

4

84531917

TUBE

1шт.

5

47534190

TUBE

1шт.

6

84570432

HOSE,6.35mm ID x 1313mm L

1шт.

7

84570429

HOSE,6.35mm ID x 980mm L

1шт.

8

84570430

HOSE,9.4mm ID x 235mm L

1шт.

9

84481481

SEALING STRIP,900mm L

3шт.

10

84570290

INTAKE AIR HOSE,76.2mm ID x 221.7mm L

1шт.

11

84473684

RADIATOR HOSE

2шт.

12

84481472

ELBOW,50.8mm ID x 103.6mm L, SAE J20R4, Class D1

2шт.

13

84540654

RADIATOR HOSE,19mm ID x 76mm L

1шт.

14

84481483

SEAL

2шт.

15

84556843

SEALING STRIP,680mm L

2шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

17

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

10шт.

18

87572375

HOSE,76.2mm ID x 89mm L

1шт.

19

L115549

CLAMP,69.85mm - 92.08mm

8шт.

20

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

2шт.

21

J918685

PIPE

1шт.

22

J069053

CLAMP,66.54mm ID

1шт.

23

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

24

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

25

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

26

76349

PLUG,9/16" - 18 ORB

1шт.

27

87635840

VALVE

1шт.

28

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

5шт.

29

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

4шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

31

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

32

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

33

87050114

STRAP

2шт.

34

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

35

87034745

TEE

1шт.

36

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

37

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

38

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

39

47531155

TUBE

1шт.

Выбрано товаров: 39
