Запчасти Case 1150M WT/LGP (10.400.AP[01]) - RADIATOR HOSE AND HARDWARE (10) - ENGINE

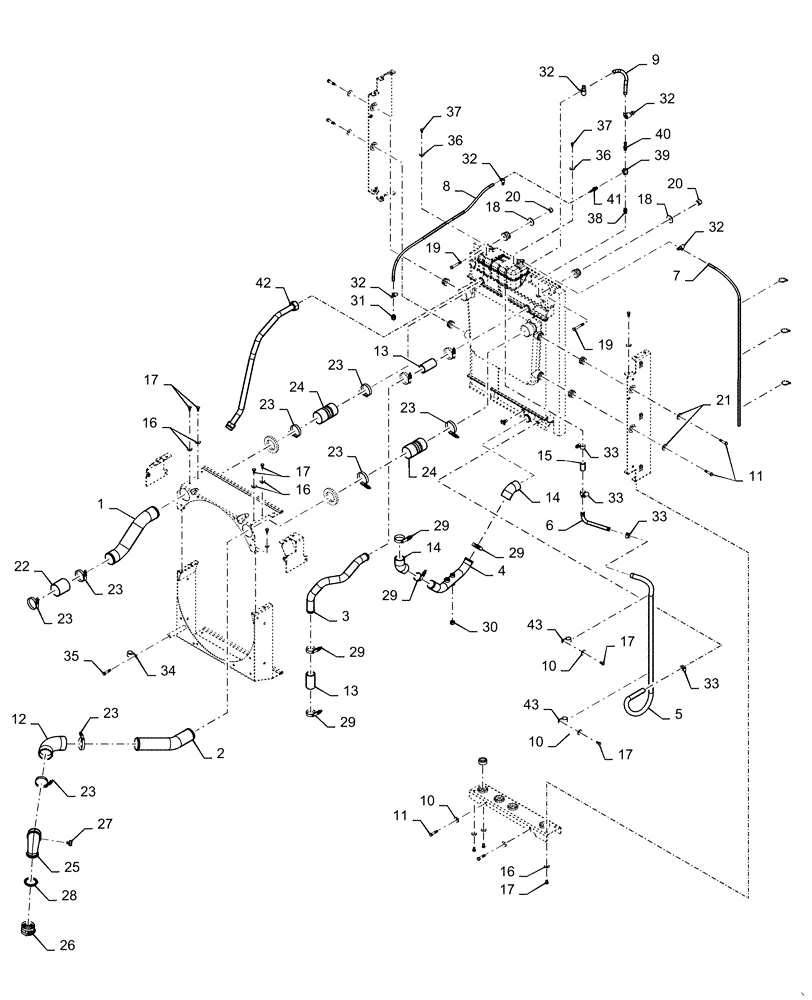

Схема запчастей Case 1150M WT/LGP - (10.400.AP[01]) - RADIATOR HOSE AND HARDWARE (10) - ENGINE
17
10
8
33
17
23
29
21
23
13
16
23
14
19
38
40
6
26
31
11
28
23
10
7
20
20
23
10
36
42
24
16
17
43
32
29
11
24
34
9
30
37
2
37
27
15
25
32
32
36
33
3
32
33
16
35
29
13
1
39
29
18
23
17
33
41
4
19
23
5
22
23
29
14
32
43
18
17
12

Артикул

Название

Примечание

Количество

1

84481460

RIGID TUBE

1шт.

2

84570428

AIR INTAKE TUBE

1шт.

3

47531188

TUBE

1шт.

4

84531917

TUBE

1шт.

5

47595395

HOSE,1460mm L

1шт.

6

47595407

TUBE

1шт.

7

84570432

HOSE,6.35mm ID x 1313mm L

1шт.

8

84570429

HOSE,6.35mm ID x 980mm L

1шт.

9

84570430

HOSE,9.4mm ID x 235mm L

1шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

6шт.

11

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

8шт.

12

84570290

INTAKE AIR HOSE,76.2mm ID x 221.7mm L

1шт.

13

84473684

RADIATOR HOSE

2шт.

14

84481472

ELBOW,50.8mm ID x 103.6mm L, SAE J20R4, Class D1

2шт.

15

84540654

RADIATOR HOSE,19mm ID x 76mm L

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

24шт.

17

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

26шт.

18

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

4шт.

19

86977776

BOLT,Hex, M12 x 70mm, Cl 8.8, Full Thd

2шт.

20

87497916

NUT

2шт.

21

86624147

WASHER,0.53" ID x 1.5" OD x 0.12" Thk

4шт.

22

87572375

HOSE,76.2mm ID x 89mm L

1шт.

23

L115549

CLAMP,69.85mm - 92.08mm

8шт.

24

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

2шт.

25

J918685

PIPE

1шт.

26

J069053

CLAMP,66.54mm ID

1шт.

27

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

28

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

29

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

30

76349

PLUG,9/16" - 18 ORB

1шт.

31

87635840

VALVE

1шт.

32

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

5шт.

33

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

4шт.

34

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

35

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

36

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

37

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

38

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

39

87034745

TEE

1шт.

40

217151

PLUNGER

1шт.

41

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

42

47583077

TUBE

1шт.

43

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

Выбрано товаров: 43
