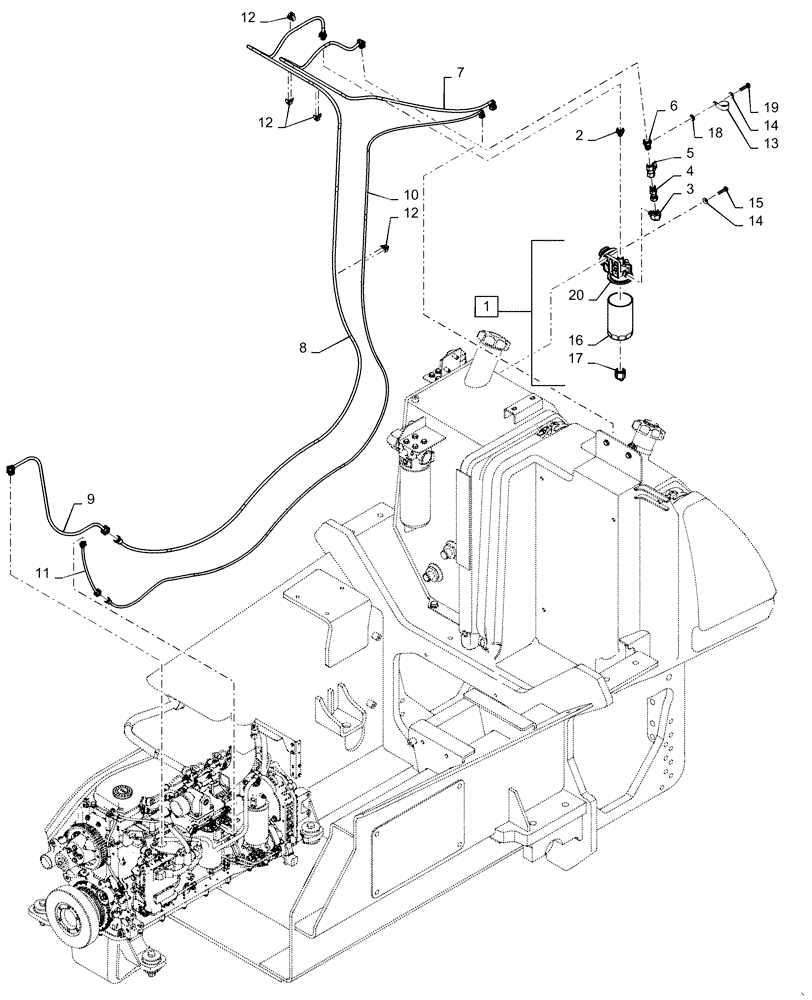

Запчасти Case 1150M WT/LGP (10.210.AF[02]) - FUEL LINE & FUEL FILTER (10) - ENGINE

1

84348875

FILTER ASSY

Incl 16, 17, 20

1шт.

2

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

4

84520680

HYD CONNECTOR

SAE 8 13/16 - 16 UN

1шт.

5

86984713

SHUT-OFF VALVE

Fuel

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

246 NG 12 To 1/2" NPTF

1шт.

7

47415597

FUEL TUBE,8.75mm ID x 10mm OD x 3840mm L

Tank To Filter

1шт.

8

47415599

FUEL TUBE,8.75mm ID x 10mm OD x 1275mm L

Plastic/Rubber

1шт.

9

47360119

FUEL TUBE

Plastic/Rubber

1шт.

10

47360121

FUEL TUBE,8.75mm ID x 10mm OD x 3120mm L

Plastic/Rubber

1шт.

11

84590423

FUEL TUBE,8.75mm ID x 10mm OD x 403mm L

Plastic/Rubber

1шт.

12

84298475

HOSE CLAMP

Dual

13шт.

13

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

Closed, 33.3mm Insul 3/8 Bolt

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 x 10.65 x 23.0 x 2.2 Hts Boron

4шт.

15

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

3шт.

16

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

17

87519307

SENSOR

Water In Fuel

1шт.

18

363082R1

SPACER,3/8" Pipe x .656"

1шт.

19

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

20

87705123

FILTER HEAD

Fuel Filter Head

1шт.
