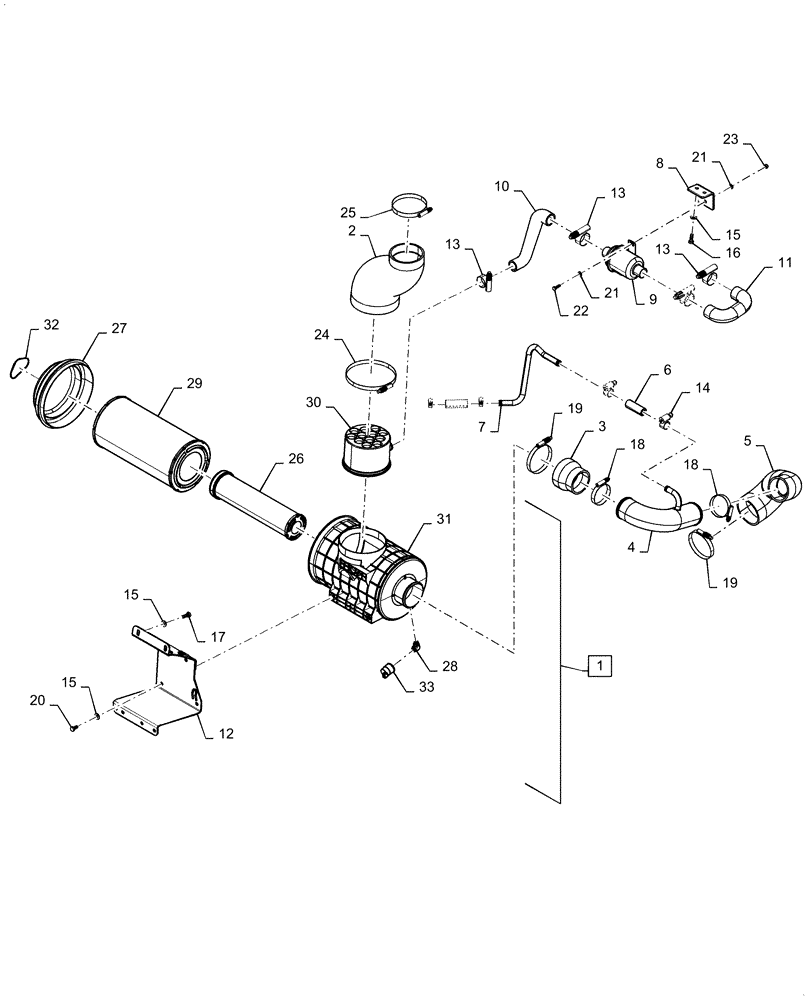

Запчасти Case 1150M WT/LGP (10.202.AK[02]) - AIR CLEANER & INTAKE PARTS NON REGULATED EMISSIONS (10) - ENGINE

1

47459041

AIR CLEANER

Assembly, 26 - 33

1шт.

2

47879961

AIR INTAKE

Duct

1шт.

3

84467779

INTAKE AIR HOSE

Cleaner to Turbo, Upper Section

1шт.

4

84422190

AIR INTAKE TUBE

Cleaner to Turbo, Hose Scetion Assembly

1шт.

5

84467781

INTAKE AIR HOSE

Cleaner to Turbo, Lower

1шт.

6

47517569

HOSE,19.05mm ID x 80mm L, SAE 30R2

Intake Air

2шт.

7

47766735

HYD TUBE

CCV

1шт.

8

84371209

BRACKET

Assembly, Valve

1шт.

9

406089A2

VALVE

Check, Aspirator

1шт.

10

84378396

HOSE

Aspirator to Valve

1шт.

11

84371205

HOSE

Aspirator to Exhaust

1шт.

12

47579467

BRACKET

Air Cleaner

1шт.

13

76084436

HOSE CLAMP,1.25" - 2.12", Worm Gear

4шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

4шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

9шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

17

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

18

76086813

CLAMP,3.25" - 4.12", Worm Gear

2шт.

19

L127771

CLAMP,107.95mm - 130.18mm

2шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

24

87437258

CLAMP,6.75" - 7.62", Worm Gear

1шт.

25

47846551

HOSE CLAMP

Constant Torque

1шт.

26

82028977

AIR FILTER

Secondary Element

1шт.

27

84388888

COVER

Cover

1шт.

28

47449868

FITTING,90 Deg

90 Degree

1шт.

29

84368651

AIR PRE-CLEANER ASSY

Primary Element

1шт.

30

47506851

AIR FILTER,87.6mm ID x 108.5mm OD x 403mm L

Intake Element Assembly

1шт.

31

84368650

BODY

Main

1шт.

32

47459618

LABEL

Air Cleaner

1шт.

33

279492A1

RESTRICTION SWITCH

Indiator

1шт.
