(90.160.CK[05]) - FOAM INSULATION

Запчасти Case 1150M WT/LGP (90.160.CK[05]) - FOAM INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

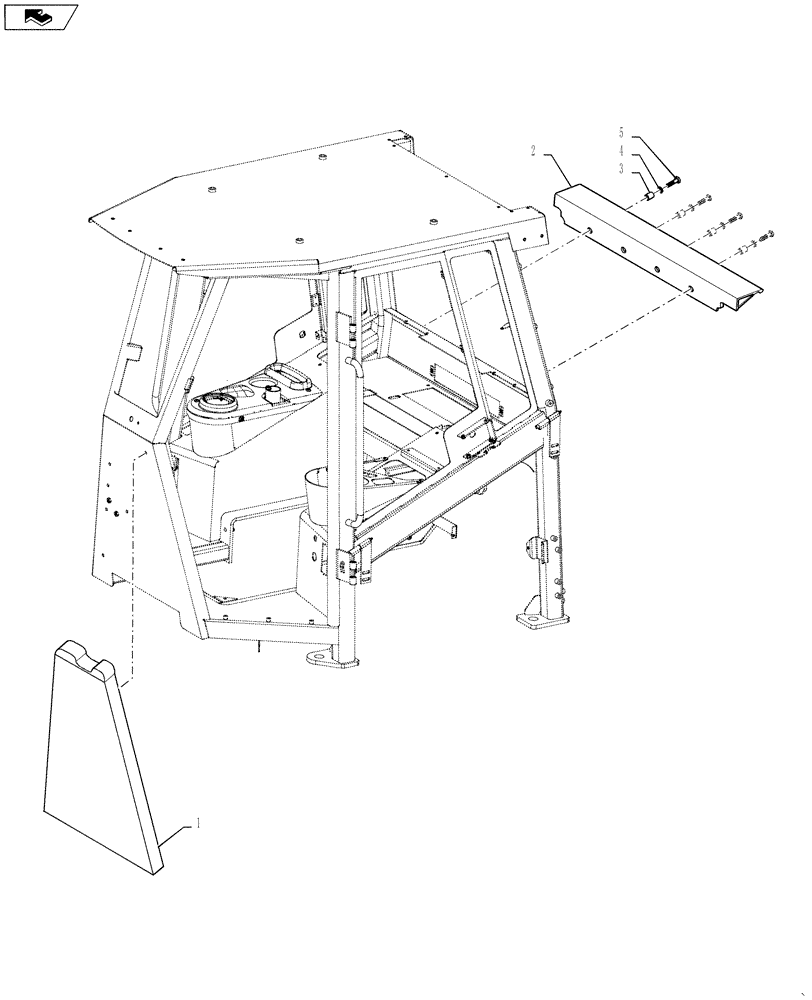

Схема запчастей Case 1150M WT/LGP - (90.160.CK[05]) - FOAM INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
home
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

84540286

FOAM INSULATION

Firewall Seal

1шт.

1

47719833

FOAM

Rear

1шт.

3

87605321

SPACER,6.8mm ID x 10.3mm OD x 6.4mm L

1/8 PIPE x 6.4 MM

4шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

Выбрано товаров: 5
