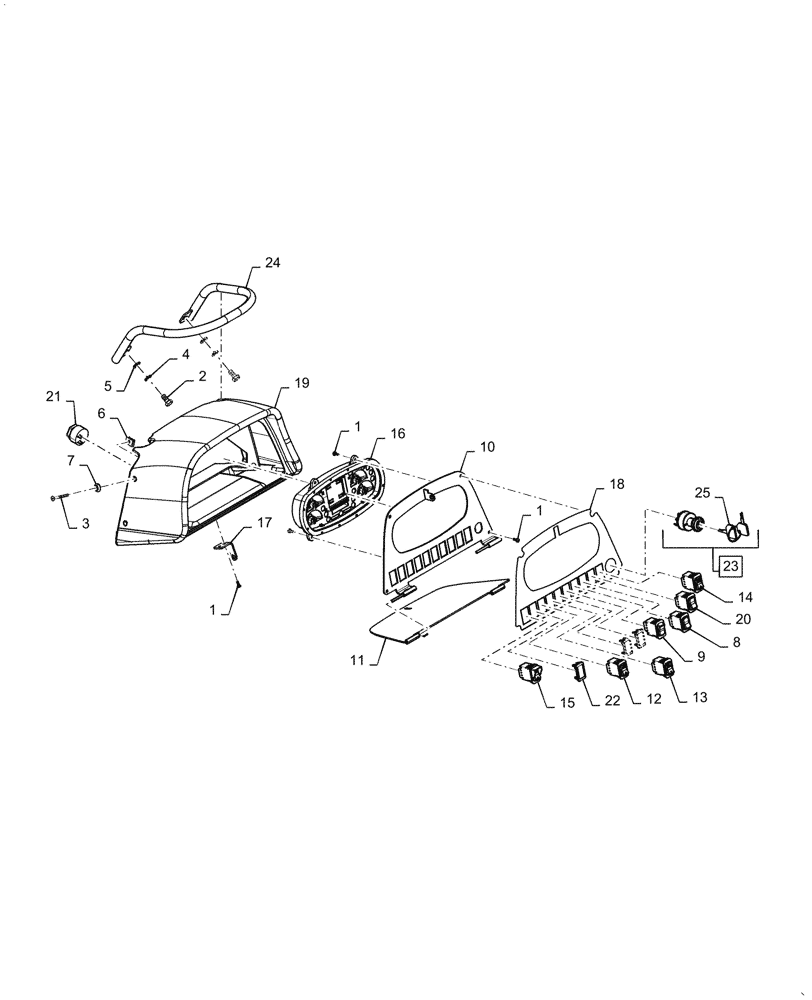

Запчасти Case 1150M WT/LGP (90.160.AO[02]) - CANOPY, INSTRUMENT CLUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

540-712

SCREW,Cross Pan Hd, M5 x 12

10шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

3

843-1650

SCREW,Flat , M6 x 50mm, Cl 4.8

4шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

76047274

NUT,M6 x 1

4шт.

7

79076208

WASHER

4шт.

8

84222272

SWITCH

Rocker, Up-Down

1шт.

9

84222273

ROCKER SWITCH

Display - Enter

1шт.

10

47581788

PLATE

Console

1шт.

11

84353470

COVER

Damage Prevention Plate, Console

1шт.

12

84375594

SWITCH

Rocker, Front Work Lamps

1шт.

13

84375595

SWITCH

Rocker, Rear Work Lamps

1шт.

14

84375598

SWITCH

Rocker, Blade Level Enable

1шт.

15

84375599

SWITCH

Rocker, Park Brake

1шт.

16

84380414

INSTRUMENT CLUSTER

Assembly

1шт.

17

84424372

BRACKET

Damage Prevention Plate, Lock up

1шт.

18

47405184

DECAL

Console Cover

1шт.

19

84577483

TRIM PANEL

Console

1шт.

20

84586964

SWITCH

Implement Enable

1шт.

21

87312549

HORN

Warning

1шт.

22

126844A1

PLUG,1.427” x .62” , Plastic

Switch

3шт.

23

427182A1

IGNITION SWITCH

Assy, Incl 25

1шт.

24

47496041

HANDLE

Front Console

1шт.

25

47457834

IGNITION KEY

Incl in 23

1шт.
