(90.151.AK[01]) - REAR VIEW MIRROR

Запчасти Case 1150M WT/LGP (90.151.AK[01]) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

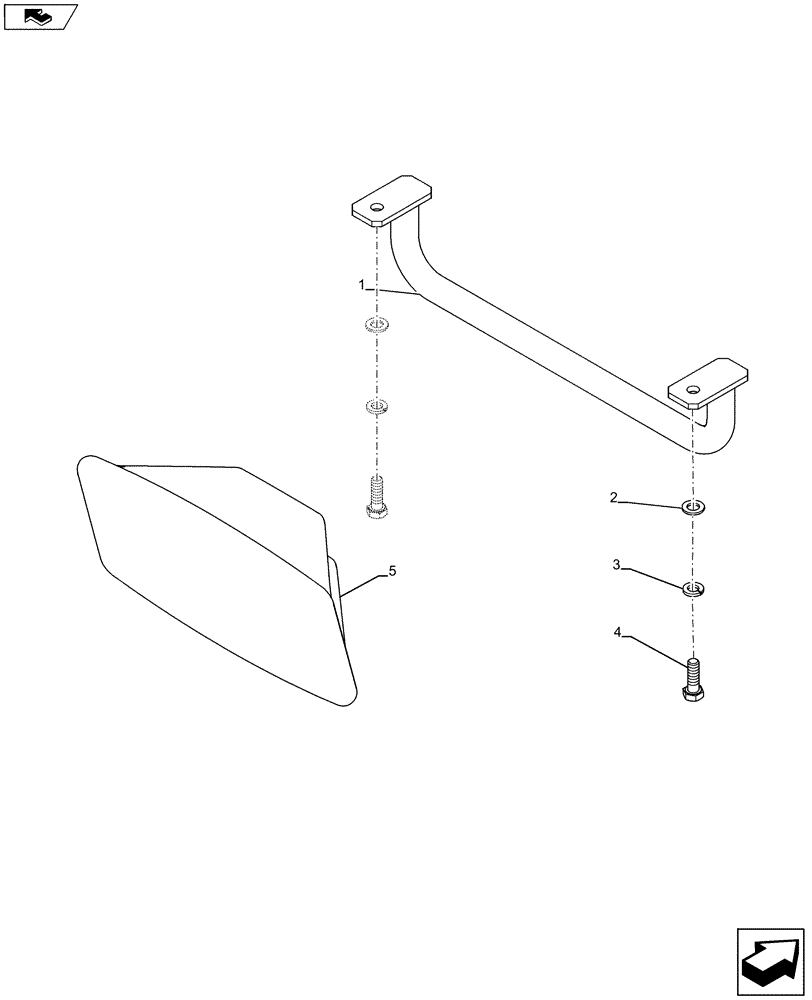

Схема запчастей Case 1150M WT/LGP - (90.151.AK[01]) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
5
home
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87444309

BRACKET

Mounting, Rear View Mirror

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

892-11008

LOCK WASHER,8mm ID

2шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

76067706

REAR VIEW MIRROR

Mirror Assembly

1шт.

Выбрано товаров: 5
