(90.150.BJ[03]) - SCREEN, FORESTRY CANOPY ONLY

Запчасти Case 1150M WT/LGP (90.150.BJ[03]) - SCREEN, FORESTRY CANOPY ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

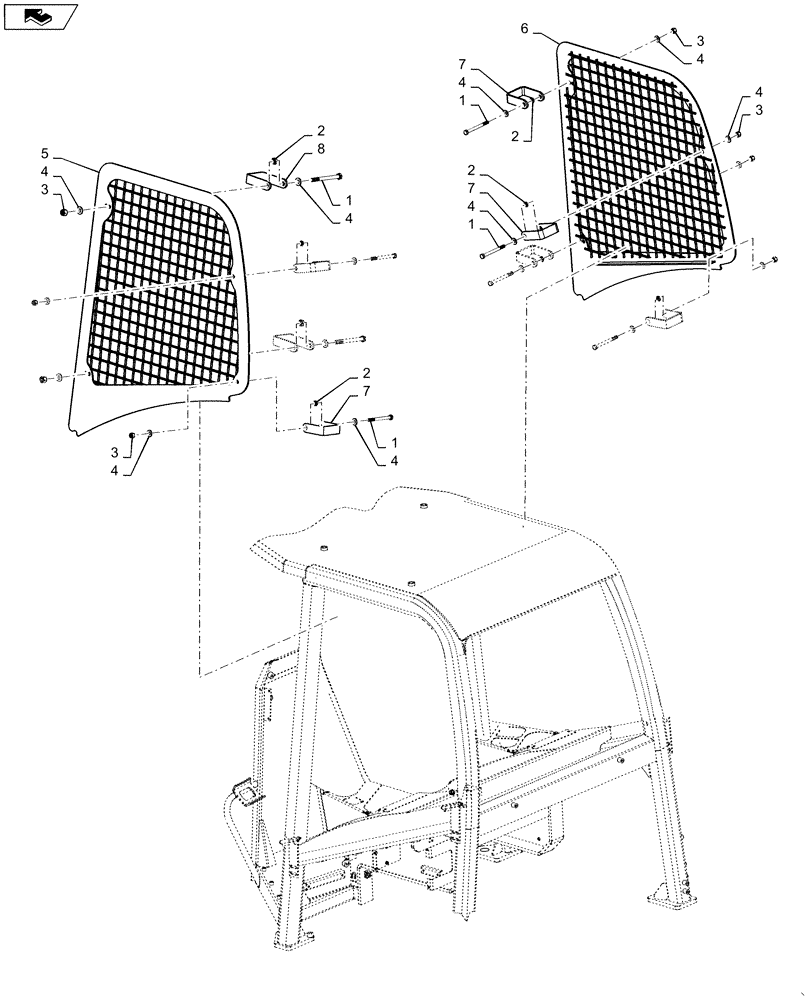

Схема запчастей Case 1150M WT/LGP - (90.150.BJ[03]) - SCREEN, FORESTRY CANOPY ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
3
4
2
4
7
1
4
7
6
4
3
4
2
4
3
7
4
1
home
1
1
8
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

8шт.

2

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

16шт.

5

47567968

SCREEN

Frame W, Side, Left Hand

1шт.

6

47567969

SCREEN

Frame W, Side, Right Hand

1шт.

7

87426206

CLAMP

Side Screen 107 x 90 mm

6шт.

8

87426207

CLAMP

Side Screen 127 x 90 mm

2шт.

Выбрано товаров: 8
