(90.108.AE[03]) - DECALS - EU

Запчасти Case 1150M WT/LGP (90.108.AE[03]) - DECALS - EU (90) - PLATFORM, CAB, BODYWORK AND DECALS

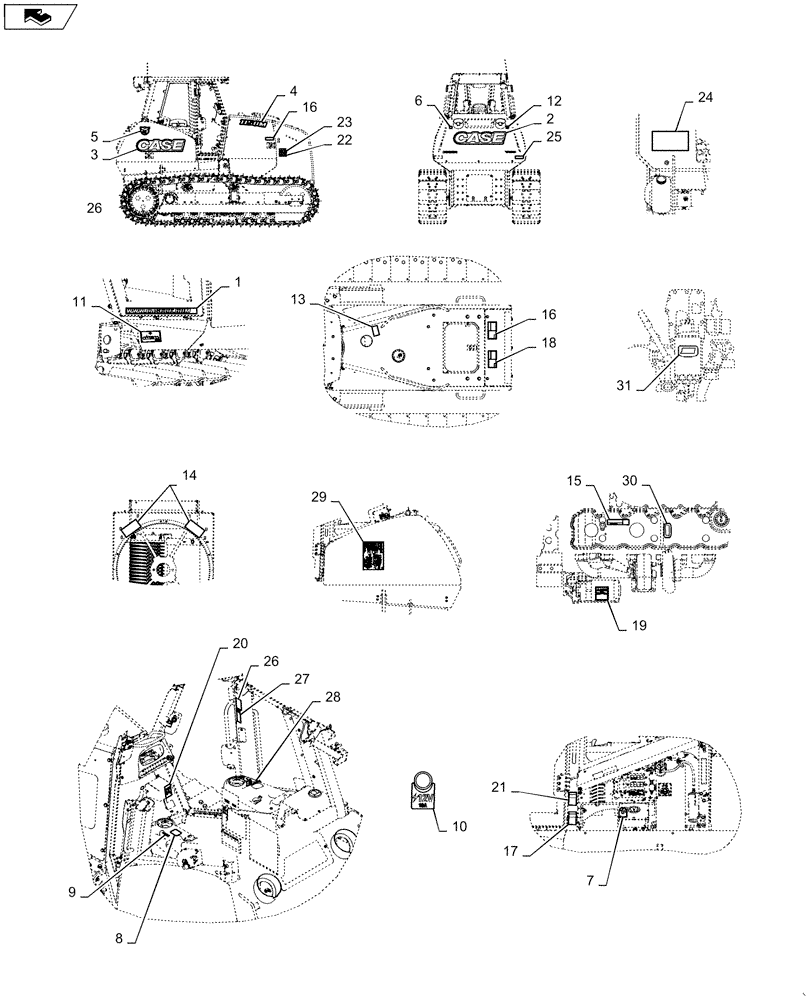

Схема запчастей Case 1150M WT/LGP - (90.108.AE[03]) - DECALS - EU (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
29
17
6
26
30
10
9
7
31
25
18
5
23
2
4
3
14
26
16
16
12
home
15
8
11
22
19
28
1
27
20
21
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84468361

DECAL,436mm x 27mm H

CASECE.COM 475mm

2шт.

2

84468413

DECAL,1054mm x 268mm H

Case Logo 268mm

1шт.

3

84468364

DECAL

Case Logo 250mm

2шт.

4

84468403

DECAL,524mm x 113mm H

Model Number

2шт.

5

84468362

DECAL,194mm x 170mm H

Eagle Logo 170mm

2шт.

6

85804338

DECAL,50mm x 50mm H

Fuel

1шт.

7

84513046

DECAL

Master Disconnect

1шт.

8

87422184

DECAL,57mm x 69mm H

FNR

1шт.

9

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

10

87601526

DECAL,35mm x 40mm H

12V Power Outlet

1шт.

11

84499780

DECAL,130mm x 80mm H

Track Adjustment

1шт.

12

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

13

8603095

WARNING DECAL

Ether

1шт.

14

332511A1

DECAL

Fan Warning

2шт.

15

87378042

WARNING DECAL

Fuel Pressure

1шт.

16

87415865

WARNING DECAL

Hot Surface

3шт.

17

87706390

DECAL

Danger Battery

1шт.

18

87706392

DECAL

Fuel Under Pressure

1шт.

19

87706393

DECAL

Engine Starting

1шт.

20

87706395

DECAL

Decelerator

1шт.

21

87715063

WARNING DECAL

Do Not Modify ROPS

1шт.

22

87719507

DECAL

Stand Clear

2шт.

23

87741372

DECAL

Crush Hazzard

2шт.

24

328903A1

DECAL

Accumulator

1шт.

25

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector

2шт.

26

87706389

DECAL

General Operation

1шт.

27

87706391

DECAL

Do Not Jump

2шт.

28

84513047

DECAL

Blade Ripper Control

1шт.

29

84513048

DECAL

Maintenance Chart

1шт.

30

84558036

DECAL,66mm x 33mm H

Engine Medallion

1шт.

31

84558035

DECAL,70mm x 58mm H

Filter

1шт.
