Запчасти Case 1150M WT/LGP (90.108.AE[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

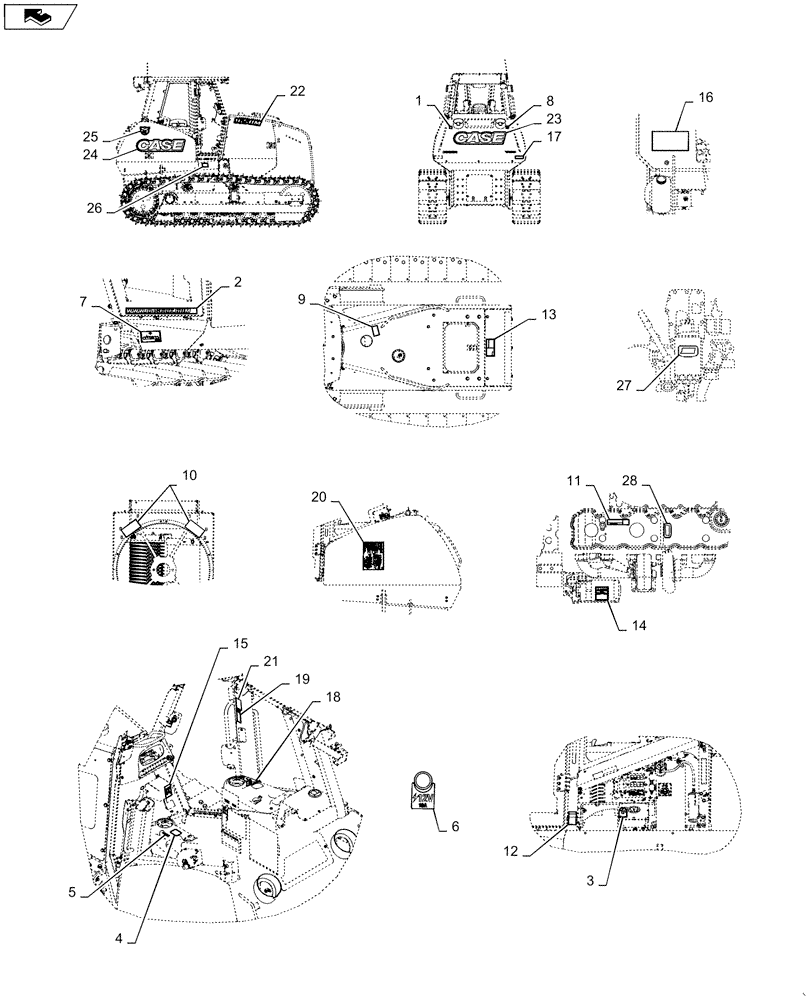

Схема запчастей Case 1150M WT/LGP - (90.108.AE[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
6
12
9
21
18
5
16
11
26
19
22
24
20
home
25
1
13
17
4
28
15
14
2
27
7
3
23
10

Артикул

Название

Примечание

Количество

1

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

2

84468361

DECAL,436mm x 27mm H

Casece.com, 475mm Height

2шт.

3

84513046

DECAL

Master Disconnect

1шт.

4

87422184

DECAL,57mm x 69mm H

Forward Neutral Reverse Diagram

1шт.

5

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

6

87601526

DECAL,35mm x 40mm H

12V Power Outlet

1шт.

7

84499780

DECAL,130mm x 80mm H

Important, Track Adjustment

1шт.

8

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

9

8603092

WARNING DECAL,55mm x 95mm H

1шт.

10

332512A1

DECAL

Fan Warning

2шт.

11

84242780

WARNING DECAL

1шт.

12

383973A1

DECAL,60mm x 100mm H

Jumpstart Danger

1шт.

13

329044A1

WARNING DECAL,168mm x 88mm H

Caution Radiator Cap

1шт.

14

321-7040

DANGER DECAL

Engine Start Warning

1шт.

15

383971A1

DECAL

Engine Decelerator

1шт.

16

384260A1

WARNING DECAL,168mm x 88mm H

Accumulator In System Warning

1шт.

17

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector

2шт.

18

84513047

DECAL

Blade Ripper Control

1шт.

19

321-7030

WARNING DECAL

Warning, Do Not Jump

1шт.

20

84513048

DECAL

Maintenance Chart

1шт.

21

382622A1

DECAL,60mm x 90mm H

Warning, General Operation

1шт.

22

84468403

DECAL,524mm x 113mm H

Model Number, 1150M

2шт.

22

84468406

DECAL

Model Number, 1650M

2шт.

23

84468413

DECAL,1054mm x 268mm H

Case Logo, 268mm Height

1шт.

24

84495419

DECAL,834mm x 212mm H

Case Logo, 212mm Height

2шт.

25

84468362

DECAL,194mm x 170mm H

Eagle Logo, 170mm Height

2шт.

26

87416964

DECAL,110mm x 85mm H

Improper Lifting And Tie Down

1шт.

27

84558035

DECAL,70mm x 58mm H

Case Filter

2шт.

28

84558036

DECAL,66mm x 33mm H

Case Engine Medallion

1шт.

29

87473257

CAUTION DECAL

Noise, 107 Db

1шт.

Выбрано товаров: 30
