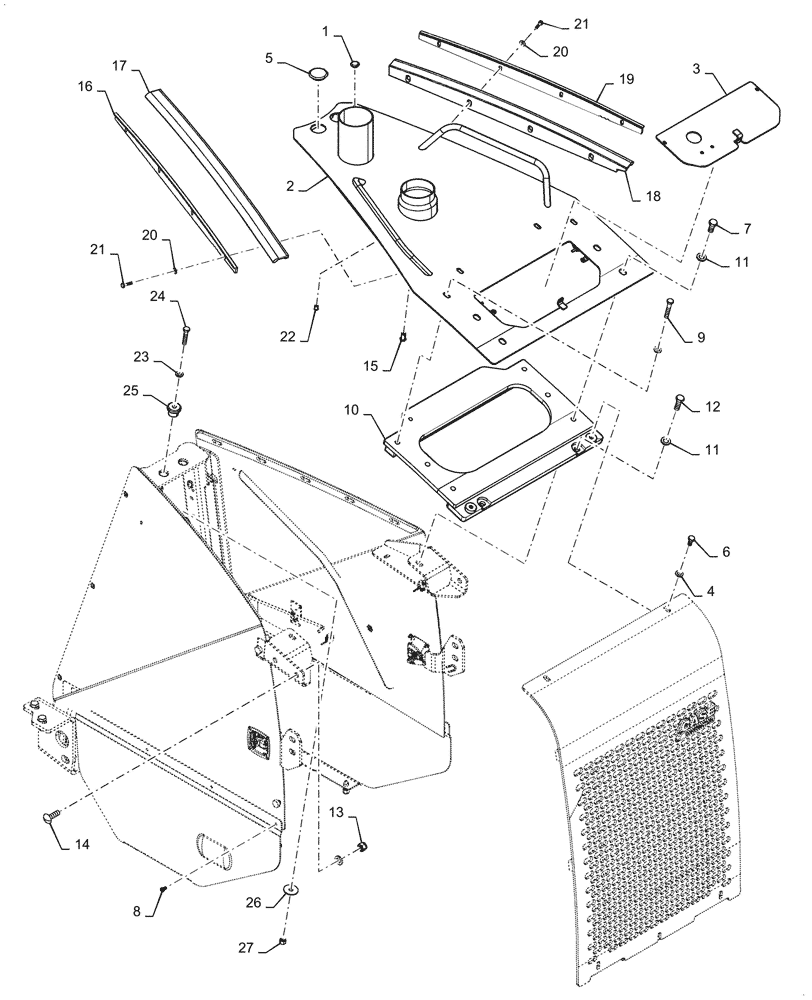

Запчасти Case 1150M WT/LGP (90.100.AB[03]) - HOOD, TOP, ASN - NFDC11078 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

14507687

PLUG,20mm ID

Hood, Top

1шт.

2

47748738

PLATE

Hood, Top, Start Serial: NFDC11078

1шт.

3

47750209

ACCESS COVER

Hood, Top

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

14508287

PLUG

Hood, Top

3шт.

6

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

7

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

8

A161780

BUMPER

Access Door

2шт.

9

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

10

84589150

SUPPORT

Hood, CE Gray

1шт.

11

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

15шт.

12

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.

13

412066

NUT,M16 x 2.0, Cl 8

7шт.

14

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

7шт.

15

85825181

INSERT

Threaded

2шт.

16

47546671

CLAMP

Rubber

1шт.

17

47546668

SEAL

RH, Door

1шт.

18

47546667

SEAL

LH, Door

1шт.

19

47546670

CLAMP

Rubber

1шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

21

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

8шт.

22

87328598

INSERT,M6 x 1"

4шт.

23

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

24

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

25

R29799

SHOCK ABSORBER

2шт.

26

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

27

87497918

NUT

1шт.
