(89.128.AC[03]) - KIT, RIPPER PARTS

Запчасти Case 1150M WT/LGP (89.128.AC[03]) - KIT, RIPPER PARTS (89) - TOOLS

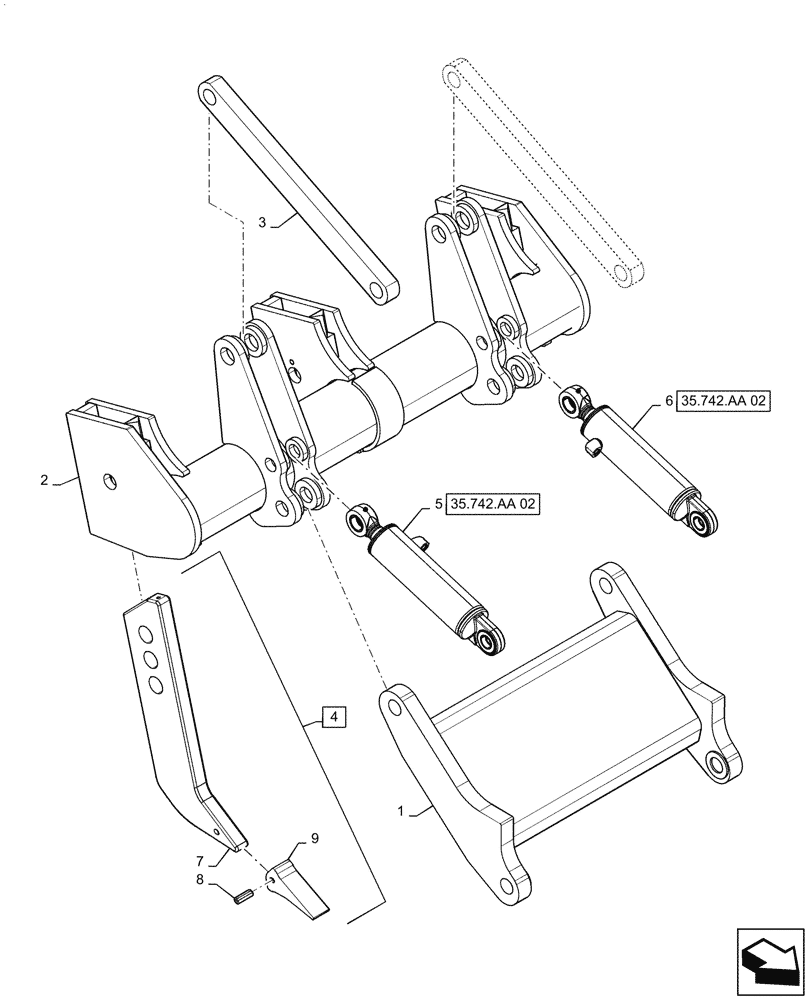

Схема запчастей Case 1150M WT/LGP - (89.128.AC[03]) - KIT, RIPPER PARTS (89) - TOOLS
35.742.aa 02
2
4
9
8
3
6
1
7
5
35.742.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84388477

SUPPORT

Cross Bar

1шт.

2

47496353

BAR

Center Plate, Ripper

1шт.

3

84388491

SUPPORT

Rocker

2шт.

4

84388507

SUPPORT

Shank Assy Incl 7 - 9

3шт.

5

87651091

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

1шт.

6

87651121

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

1шт.

7

122237A1

SHANK, BUCKET TOOTH

Ripper

3шт.

8

L32090

PIN

Tooth Retaining Pin

3шт.

9

D55468

TOOTH

Ripper

3шт.
